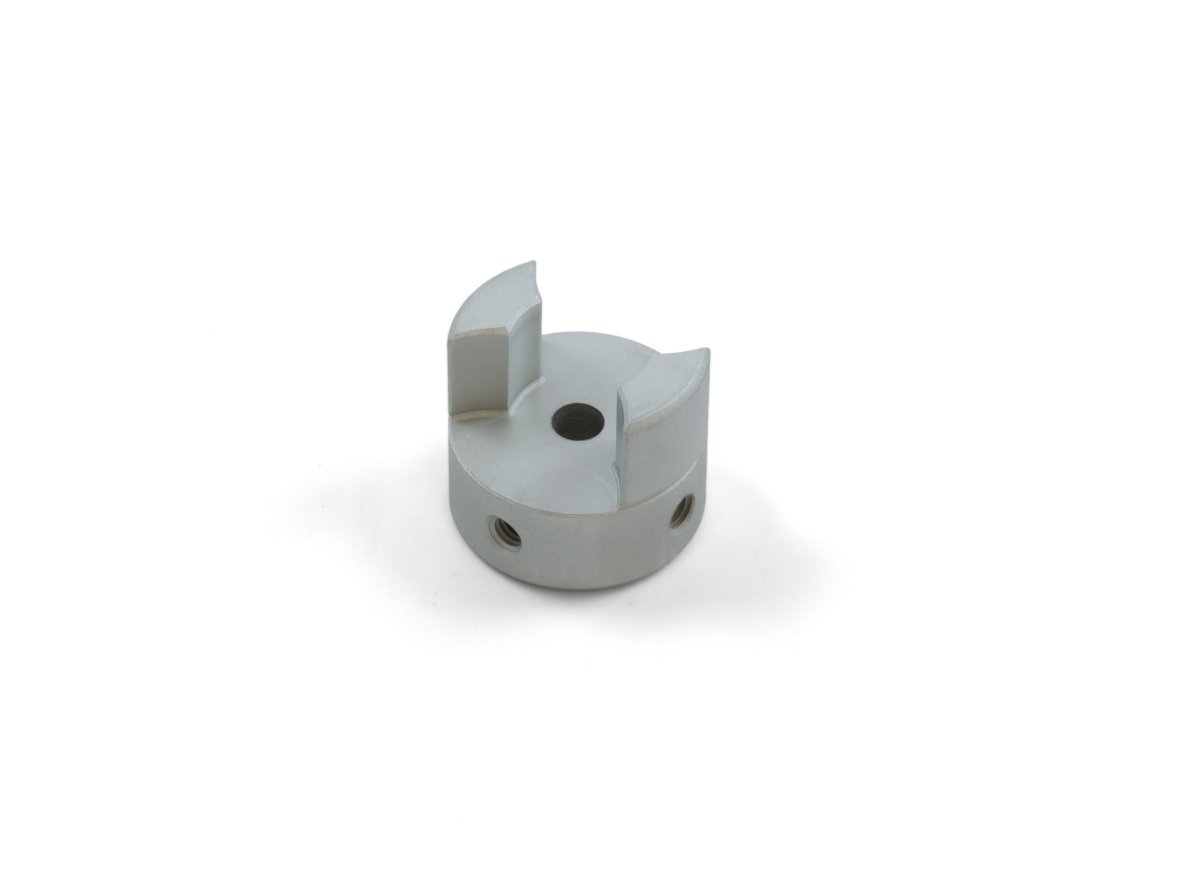

This jaw type half-coupling can be used to connect a 5mm shaft to another shaft. It is held in place by two set screws, and fits together with another CL8-25 series jaw coupling of any shaft size with a hard elastomer spider in between.
Jaw type couplings are ideal for high-torque applications and applications where shafts of two different sizes need to be coupled. This series of couplers are rated for torques as high as 60 kg·cm and speeds of up to 16000 rpm.
If you're having trouble with slipping, you can file a groove into the shaft where the set screws hold it in place. You can also use a Loctite adhesive on the set screws to ensure that they remain in place.
This jaw type half-coupling connects to any other half-coupling in the CL8-25 series with a coupling spider pressed in between. The other half and the spider are both sold separately. See the Connection & Compatibility tab for a complete list.
You'll need a coupling spider to connect this jaw coupling to another. You can find a list of compatible spiders below:
error: syntax error at or near "order"
Jaw couplings are designed to connect to other jaws in the same series, which gives you the option of coupling two differently sized shafts together. Between the two jaw couplings, a coupling spider is used to hold them in place while still allowing for a small amount of flex. The jaw couplings in the list below will fit together with this coupling:
No matching products foundStepper motors have high torque and precise position control. This shaft coupler can connect to the main shaft of the following stepper motors:
| Product | Physical Properties | Motor Properties | Electrical Properties | |||
|---|---|---|---|---|---|---|
| Part Number | Price | Shaft Diameter | Mounting Plate Size | Rated Torque | Step Angle | Recommended Voltage |
 NEMA11 - 1.8 Degree - 0.67A Stepper - Gearless
|
$16.00 | 5 mm | NEMA - 11 | 520 g·cm | 1.8° | 24 V DC |
 NEMA14 - 1.8 Degree - 1A Stepper - Gearless
|
$16.00 | 5 mm | NEMA - 14 | 1.2 kg·cm | 1.8° | 24 V DC |
 NEMA17 - 1.8 Degree - 1.68A Stepper - Gearless
|
$16.00 | 5 mm | NEMA - 17 | 3.3 kg·cm | 1.8° | 24 V DC |
 NEMA17 - 0.9 Degree - 1.68A Stepper - Gearless
|
$20.00 | 5 mm | NEMA - 17 | 3.3 kg·cm | 0.9° | 24 V DC |
Brushless DC motors combine smooth rotation with accurate position control. This shaft coupler can connect to the following BLDC Motors:
| Product | Physical Properties | Motor Properties | ||
|---|---|---|---|---|
| Part Number | Price | Shaft Diameter | Rated Torque | Rated Speed |
 NEMA17 - Brushless DC Motor - Gearless
|
$36.00 | 5 mm | 1.3 kg·cm | 4000 RPM |
| Physical Properties | |
|---|---|
| Manufacturer Part Number | CL8-25 5mm |
| Material | Aluminium |
| Coupling Rated Torque | 60.7 kg·cm |
| Coupling Rated Speed | 16000 RPM |
| Torsional Stiffness | 63 N·m/rad |
| Shaft Angularity Tolerance | 1° |
| Shaft Eccentricity Tolerance | 20 μm |
| Inner Diameter | 5 mm |
| Screw Thread Size | M4 |
| Weight | 42 g |
| Customs Information | |
| Canadian HS Export Code | 8483.60.00 |
| American HTS Import Code | 8483.60.80.00 |
| Country of Origin | CN (China) |
| Product | Physical Properties | |||||
|---|---|---|---|---|---|---|
| Part Number | Price | Inner Diameter | Material | Coupling Rated Torque | Coupling Rated Speed | Torsional Stiffness |
 Spiral Beam Coupling 5-5mm
|
$3.00 | 5 mm | Aluminium | 4.1 kg·cm | 10000 RPM | 100 N·m/rad |
 Jaw Coupling Half 5mm Series 12
|
$3.50 | 5 mm | Aluminum | 35.7 kg·cm | 12000 RPM | — |
 Spiral Beam Coupling 5mm - 5mm
|
$3.75 | 5 mm | Aluminium | 10 kg·cm | 8000 RPM | 110 N·m/rad |
