T-Nut PG40 M8

ID: TSL4213_0 Lifecycle
Recommended for new designs: Phidgets Inc. is not the original manufacturer for this product, but we intend to sell it (or a similar replacement with a compatible form, fit and function) for as long as it is available from the supplier.

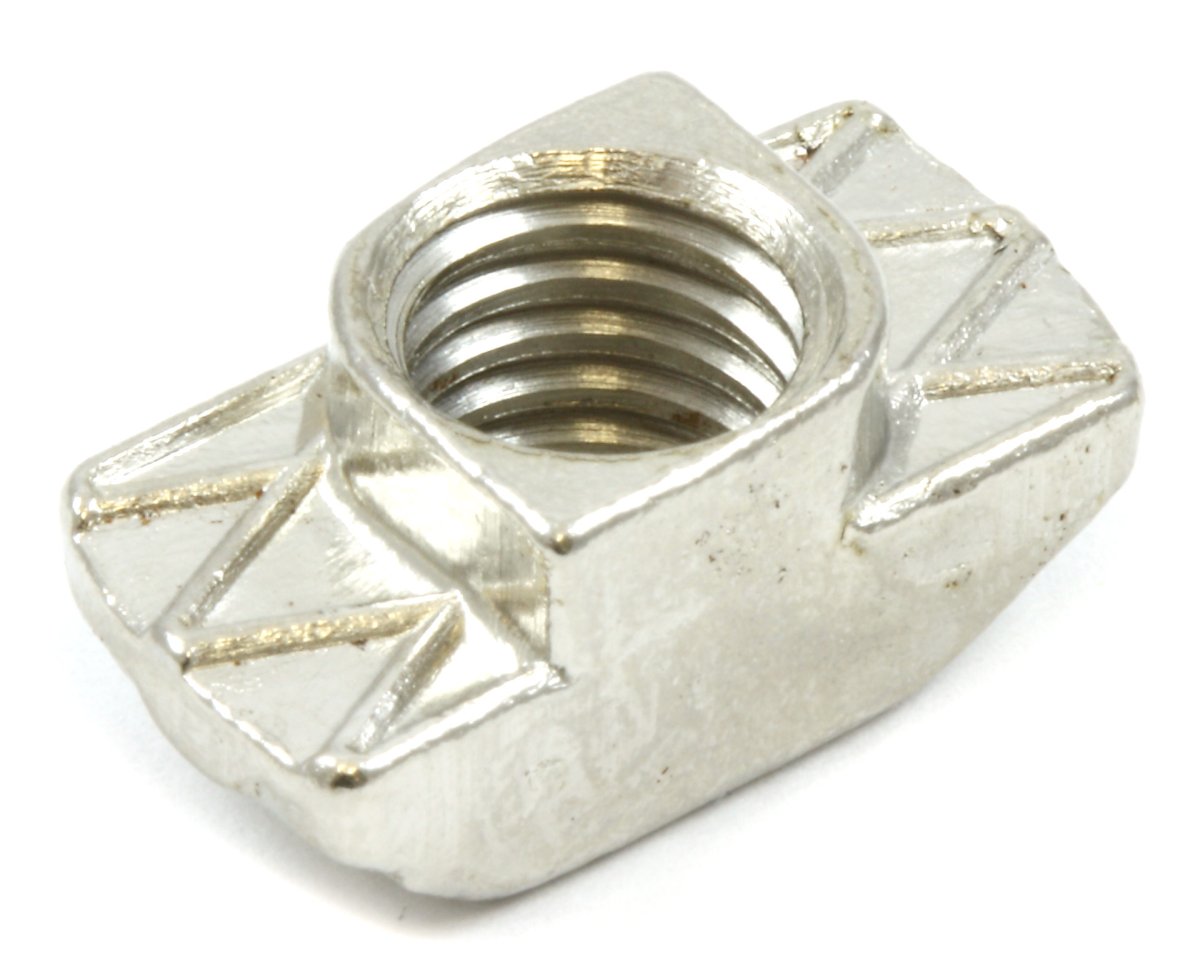

M8 nut for bolting flat along PG40 T-Slot profiles when the ends are no longer accessible.

$0.40

Quantity Available: 1000+

Qty Price
5 $0.38
10 $0.37
25 $0.36
50 $0.35
100 $0.34
Handling
$1.00

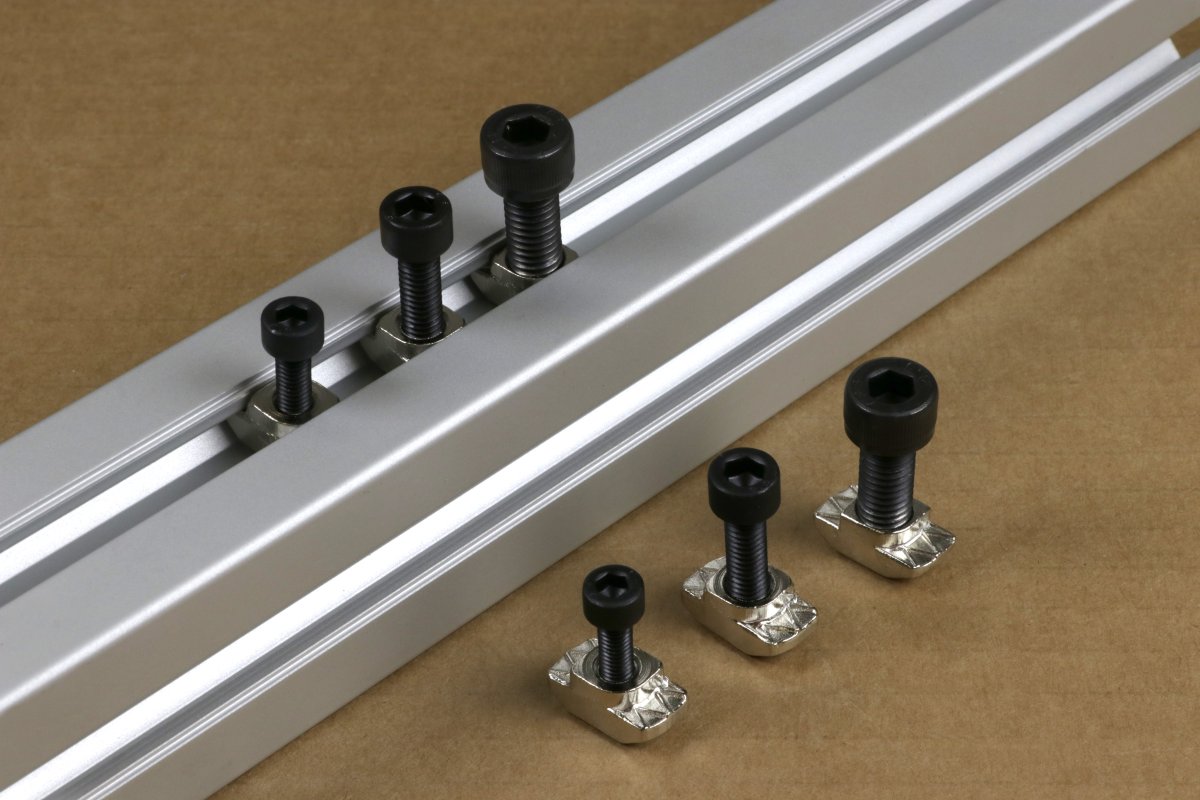

The T-nuts provide an option for a mounting point that can be installed in the middle of an extrusion without having to slide the nut all the way in from the end. This allows for faster installation as well as installation after the structure has been fully constructed, it does require a bit of finesse to install properly though. Have a look at the T-Slot guide in the specifications section for more information on installation. These nuts are suitable for use with M8 bolts.

T-Slot Profiles

This nut slides into the groove of a PG40 T-slot profile to create a mounting place for metal or plastic plating, or any other object with mounting holes. Here's a list of compatible profiles:

Product Physical Properties
Part Number Price T-Slot Profile Size Number of Slots
TSL4004_0
PG40 Profile 40x40
$15.00/Meter PG40 4

Product Specifications

Look-up Reference
Catalogue Page 42
Manufacturer Part Number 2.21.10.M8
Physical Properties
T-Slot Profile Size PG40
Customs Information
Canadian HS Export Code 7318.16.00
American HTS Import Code 7318.16.00.85
Country of Origin CN (China)

Documents

Here are all of the different styles of PG40 nuts:

Product Physical Properties
Part Number Price T-Slot Profile Size
TSL4204_0
Pre-set Nut PG40 M5
$0.30 PG40
TSL4205_0
Pre-set Nut PG40 M6
$0.30 PG40
TSL4206_0
Pre-set Nut PG40 M8
$0.30 PG40
TSL4211_0
T Nut PG40 M5
$0.40 PG40
TSL4212_0
T-Nut PG40 M6
$0.40 PG40
TSL4213_0
T-Nut PG40 M8
$0.40 PG40
TSL4216_0
Square Nut PG40 M5 (100 pcs)
$6.70 PG40
TSL4217_0
Square Nut PG40 M6 (100 pcs)
$6.70 PG40
TSL4218_0
Square Nut PG40 M8 (100 pcs)
$6.70 PG40
