Replaced by the 1112 - Slider 60.

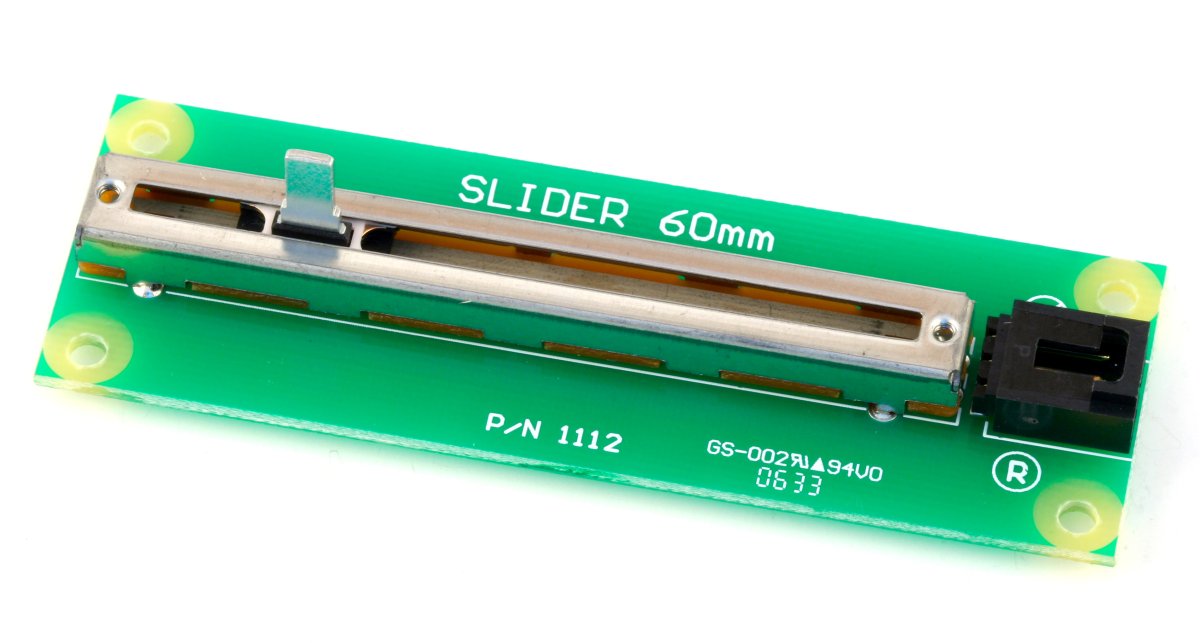

The Slider 60 is a linear potentiometer - the resistance varies linearly with the position of the slider. It outputs a voltage between 0V and the supply voltage that varies linearly over the 60mm of travel. The maximum resistance is 10K ohms.
Comes packaged with a 60cm Phidget Cable.
|Date||Board Revision||Device Version||Comment|
|June 2002||0||N/A||Product Release 45mm model|
|September 2003||0||N/A||Changed to 60mm slider|
|August 2004||0||N/A||Analog input connector changed from stereo jack to 3-pin Molex|
|December 2008||1||N/A||Smoother slider used, smaller board|
Welcome to the 1112 user guide! In order to get started, make sure you have the following hardware on hand:

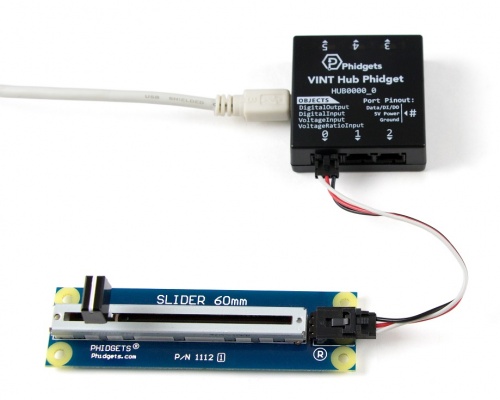

Next, you will need to connect the pieces:
Now that you have everything together, let's start using the 1112!
In order to demonstrate the functionality of the 1112, we will connect it to the HUB0000, and then run an example using the Phidget Control Panel on a Windows machine.
The Phidget Control Panel is available for use on both macOS and Windows machines. If you would like to follow along, first take a look at the getting started guide for your operating system:
Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1112.
After plugging in the 1112 into the HUB0000, and the HUB0000 into your computer, open the Phidget Control Panel. You will see something like this:
The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:
The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.
Double-click on a Voltage Ratio Input object in order to run the example:
General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:
The maximum resistance of the slider is 10kΩ.
The Phidget Cable is a 3-pin, 0.100 inch pitch locking connector. Pictured here is a plug with the connections labelled. The connectors are commonly available - refer to the Analog Input Primer for manufacturer part numbers.
