RFID Tag - PVC 15mm Disc White Self Adhesive

ID: 3909_0

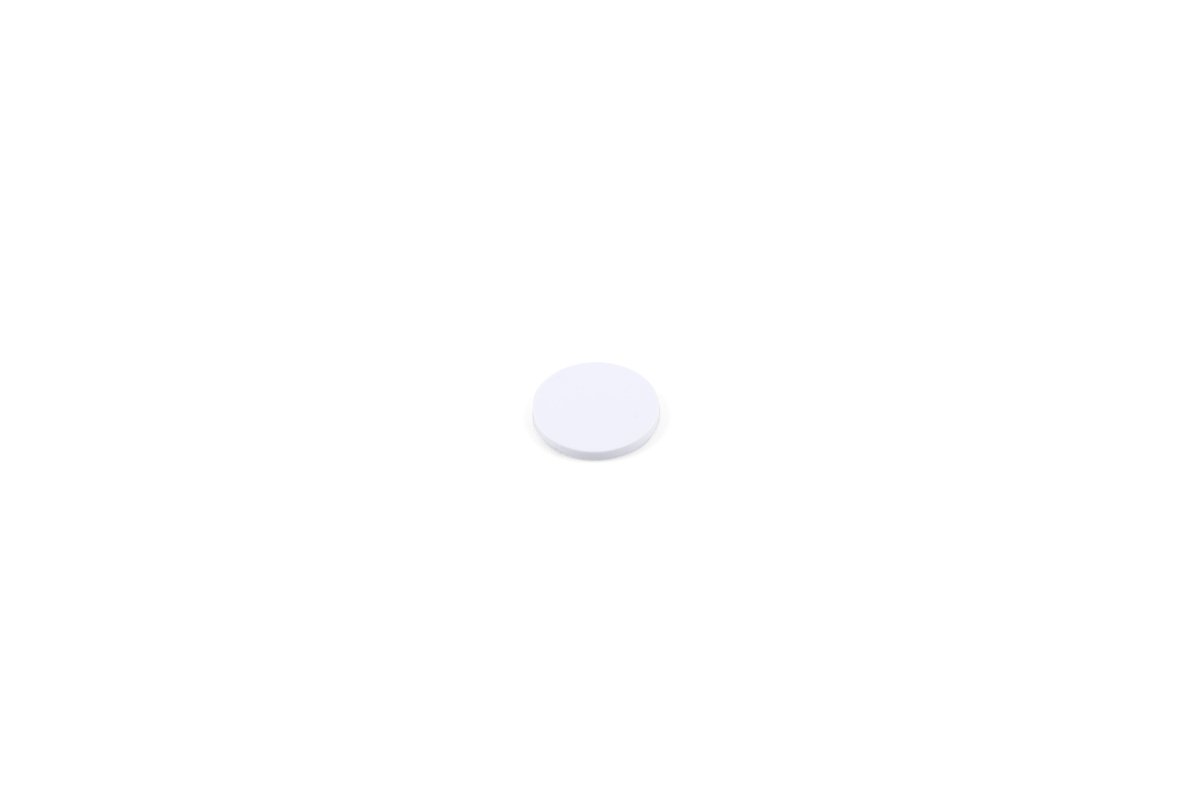

A small PVC disc with adhesive backing and an RFID tag embedded in it. Uses EM4102 protocol.

Discontinued

Nearest replacement is 3907_0 – PVC 15mm Disc White

A small plastic RFID tag disc with adhesive on the back. The adhesive will attach the tag to an object semi-permanently. This versatile tag can be attached to nearly anything. We also carry a larger disc and two without adhesive backing. The tag contains a unique ID that can be read by the 1023 – RFID reader at a distance of 5cm or less.

Product Specifications

Tag Properties
Protocol EM4102
Tag Characteristics Passive, Read-Only
Transmission Frequency 125 kHz
Encoding Method Manchester
Message Length 64 bit
Unique ID Length 40 bit
Typical Read Distance
(with 1023 - PhidgetRFID)
50 mm
Physical Properties
Material PVC
Color White
Diameter 15 mm
Thickness 1.4 mm
Weight 400 mg
IP Rating IP67
Customs Information
Canadian HS Export Code 8543.90.90
American HTS Import Code 8543.90.88.85
Country of Origin TW (Taiwan)
