Acrylic Enclosure for the 1046 - Discontinued

ID: 3808_2

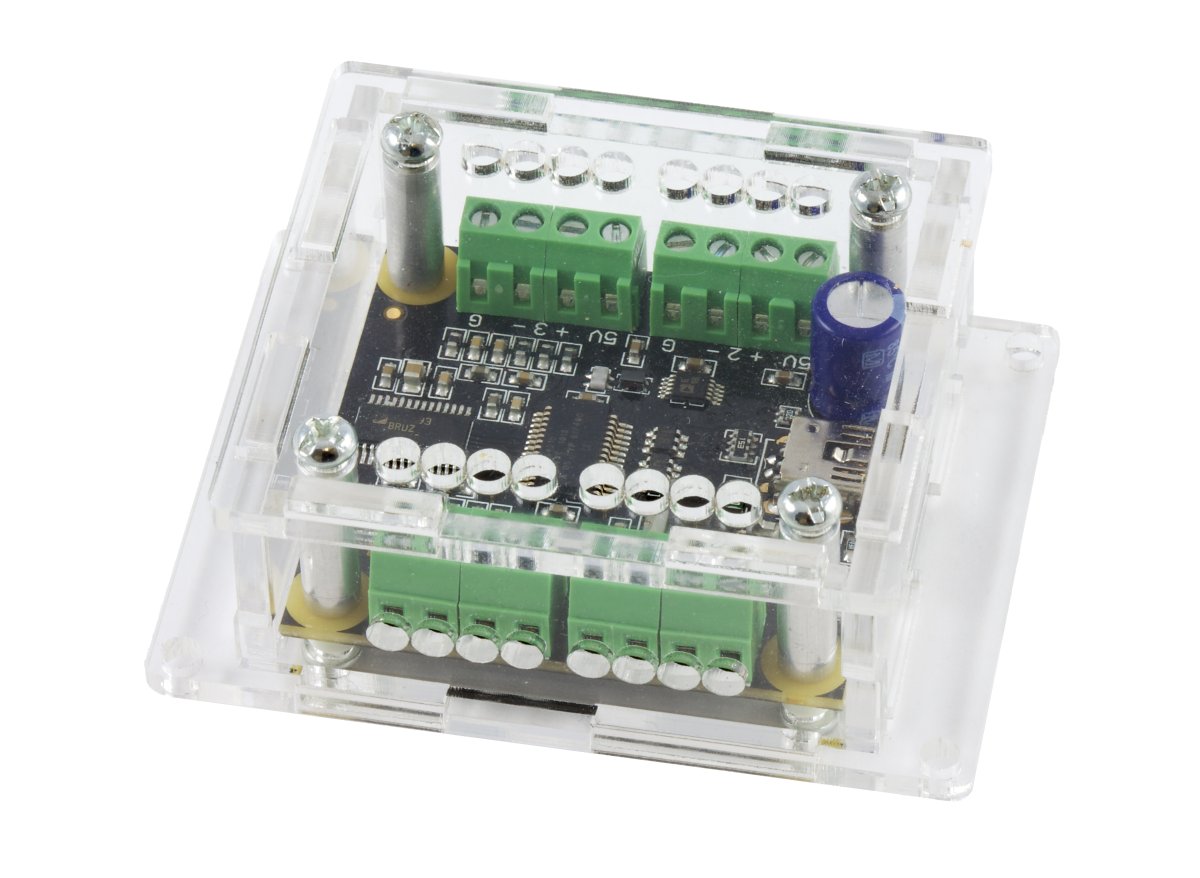

This clear acrylic enclosure protects your Phidget and is assembled with a Phillips screwdriver.

Discontinued

Replaced by the 3854 - Plastic Shell Enclosure for the 1046

The 3808 Enclosure is designed to protect the Rev 0 version of the 1046 – PhidgetBridge while giving you access to all terminals and connectors through openings in the enclosure.

You can plug and unplug cables, connect and disconnect devices, without having to open the enclosure.

This particular revision of the enclosure has thicker tabs for increased durability.

Note: The Phidget board is not included with the enclosure and must be purchased separately.

Package Includes

  • 6 clear acrylic pieces
  • Mounting Hardware (Nuts, bolts, spacers)

Required Tools


  • Small Phillips screwdriver

Warning

warning Be careful when tightening the mounting screws as too much tension could crack the acrylic.

Product Specifications

Physical Properties
Fits Board Revision 0
Material Clear Acrylic
Thickness 3.2 mm
IP Rating 20

Phidgets

This enclosure is desgined to fit the following Phidgets. See the "Resources" tab for assembly instructions.

Product Physical Properties
Image Part Number Price Material
3854_0 $6.00 Polycarbonate
