Acrylic Enclosure for the 1018

ID: 3804_1
This clear acrylic enclosure protects your Phidget and is assembled with a Phillips screwdriver.

Replaced by 3804_3

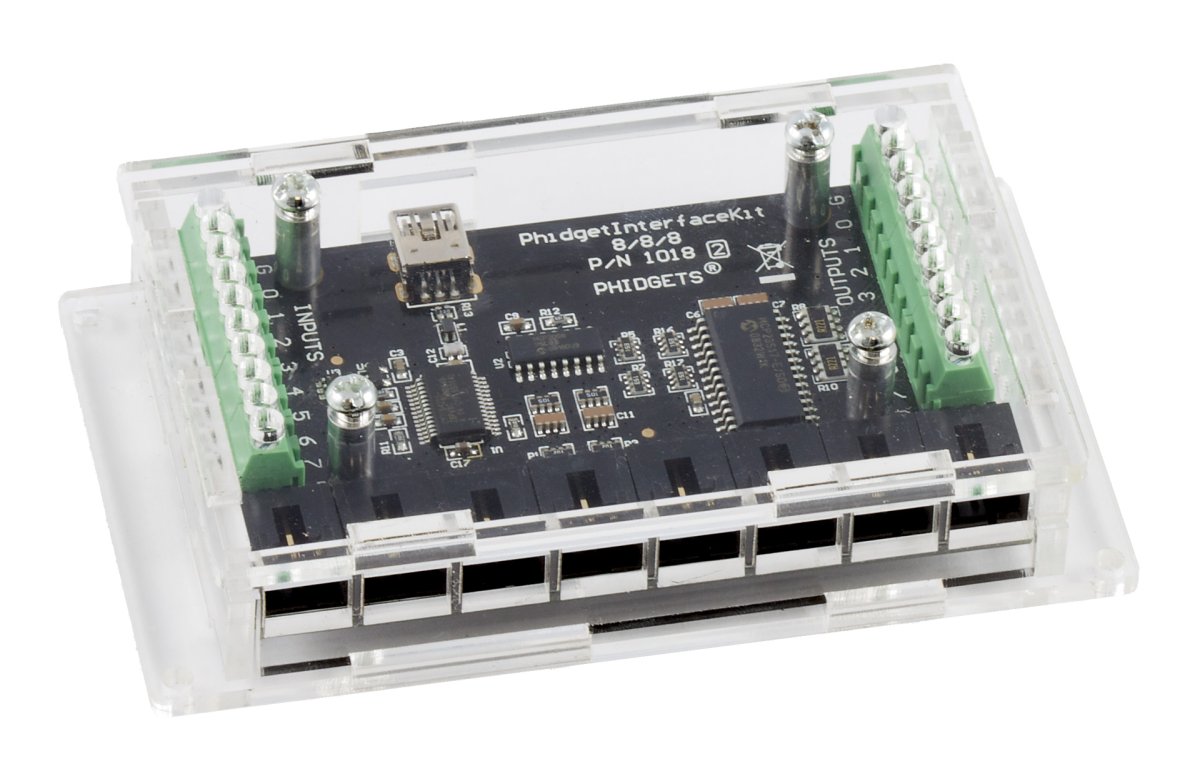

The 3804 Enclosure is designed to protect the Rev 2 version of the 1018 – PhdgetInterfaceKit 8/8/8 while giving you access to all terminals and connectors through openings in the enclosure.

You can plug and unplug cables, connect and disconnect devices, without having to open the enclosure.

Note: The Phidget board is not included with the enclosure and must be purchased separately.




Package Includes

  • 6 clear acrylic pieces
  • Mounting Hardware (Nuts, bolts, spacers)

Required Tools

  • Small Phillips screwdriver

Product Specifications

Physical Properties
Fits Board Revision 2
Material Clear Acrylic
Thickness 3.2 mm
IP Rating 20

Warning


warning Be careful when tightening the mounting screws, as too much tension could crack the acrylic.
