Replaced by the 3272_1 and the 3531 - Optical Rotary Encoder HKT22, sold separately.

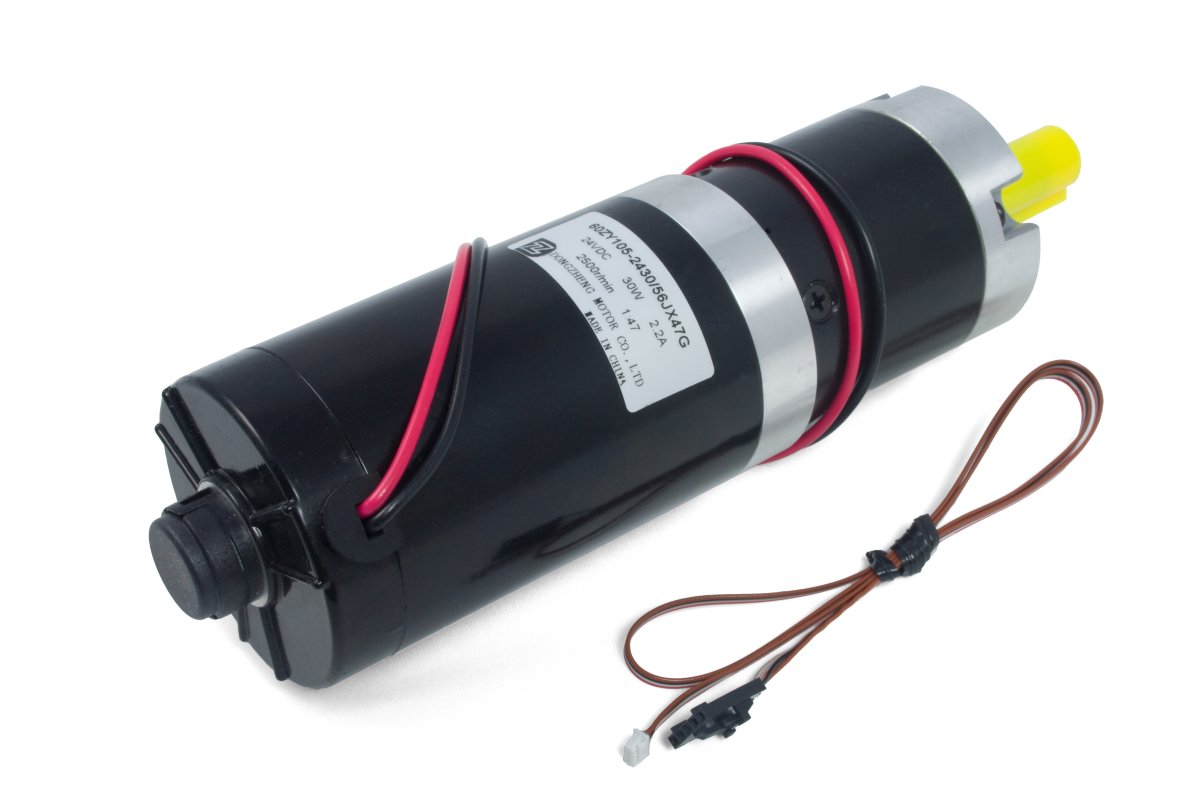

The 3272E is a 24 volt gear motor, generating 51 Kg-cm of torque at 53 RPM. It's a large motor that provides an amazing amount of torque.
This motor comes equipped with an E4P US Digital Encoder, which keeps track of the motor's rotation, allowing you to control your motor precisely.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
|The torque this motor produces when it stalls exceeds the rated strength of the gearbox. This means that stalling or very heavily loading this motor can cause serious damage to the gearbox. To avoid damage, avoid sudden loads or any load higher than the Maximum Strength of Gears spec.|
|Motor Type||DC Motor with Encoder|
|Output Power (Mechanical)||30 W|
|Rated Speed||53 RPM|
|Rated Torque||51 kg·cm|
|Stall Torque||345 kg·cm|
|Rated Voltage||24 V DC|
|Rated Current||2.2 A|
|Stall Current||10.8 A|
|Shaft Diameter||12 mm|
|Wire Length||300 mm|
|Gear Ratio||46 82⁄125 : 1|
|Number of Gear Trains||3|
|Maximum Strength of Gears||306 kg·cm|
|Shaft Maximum Axial Load||200 N|
|Shaft Maximum Radial Load||100 N|
|Encoder Resolution||360 CPR|
|Current Consumption Min||27 mA|
|Supply Voltage Min||4.5 V DC|
|Supply Voltage Max||5.5 V DC|
|Canadian HS Export Code||8501.10.00|
|American HTS Import Code||8501.10.60.60|
|Country of Origin||CN (China)|
The 3272E DC motor connects to the 1065 - PhidgetMotorControl 1-Motor.
The mounting holes on this motor are compatible with the 3339 - Mounting Bracket (NEMA23).
