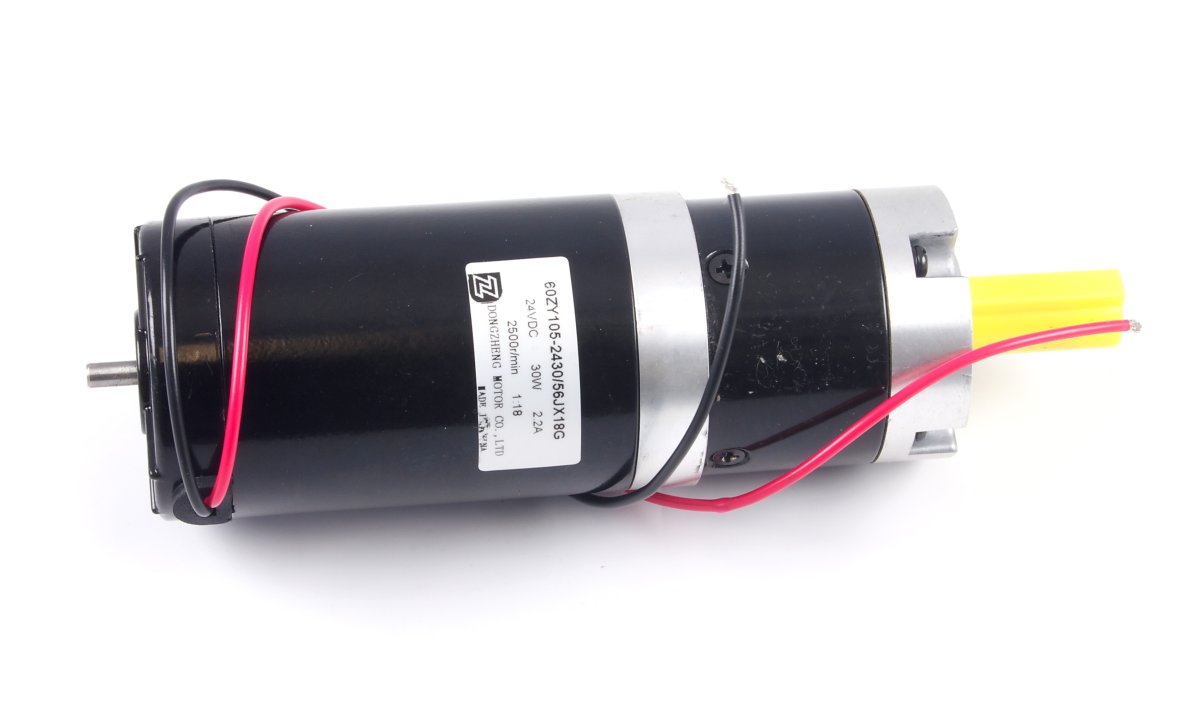

24V/20.3Kg-cm/139RPM 18:1 DC Gear Motor

ID: 3271_0
This DC motor has a 18:1 gearbox, a rated speed of 139 RPM and rated torque of 20.4 Kg·cm.

Replaced by 3271_1
Replaced by the 3271_1.

The 3271 is a 24 volt gear motor, generating 20.4 Kg-cm of torque at 139 RPM. It's a large motor that provides lots of torque, even at higher speeds.

The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.

Product Specifications

Motor Properties
Motor Type DC Motor
Output Power (Mechanical) 30 W
Maximum Speed at Rated Voltage 139 RPM
Rated Torque 20.4 kg·cm
Stall Torque 132 kg·cm
Electrical Properties
Rated Voltage 24 V DC
Rated Current 2.2 A
Stall Current 10.8 A
Physical Properties
Shaft Diameter 12 mm
Wire Length 300 mm
Weight 1.5 kg
Gearbox Specifications
Gearbox Type Planetary
Gear Ratio 18 116 : 1
Number of Gear Trains 2
Maximum Strength of Gears 153 kg·cm
Shaft Maximum Axial Load 200 N
Shaft Maximum Radial Load 100 N
Backlash Error

The 3271 DC motor connects the 1065 - PhidgetMotorControl 1-Motor .
