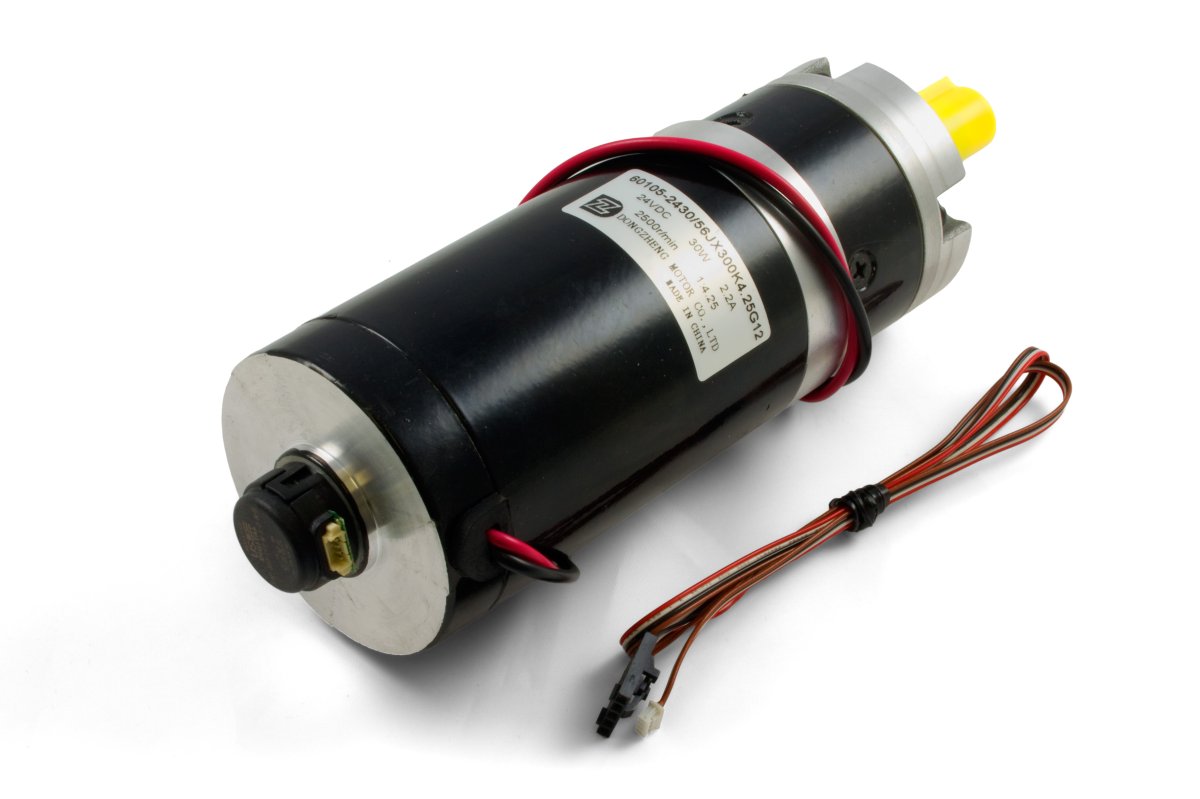

The 3269E is a 24 volt gear motor, generating 5.1 Kg-cm of torque at 588 RPM. It's a large motor that provides lots of torque, even at higher speeds.
This motor comes equipped with an E4P US Digital Encoder, which keeps track of the motor's rotation, allowing you to control your motor precisely.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
This particular revision of the 3269E has a shorter gearbox than its predecessor.
|Motor Type||DC Motor with Encoder|
|Output Power (Mechanical)||30 W|
|Rated Speed||588 RPM|
|Rated Torque||5.1 kg·cm|
|Stall Torque||31.2 kg·cm|
|Rated Voltage||24 V DC|
|Rated Current||2.2 A|
|Stall Current||10.8 A|
|Shaft Diameter||12 mm|
|Wire Length||300 mm|
|Gear Ratio||4 1⁄4 : 1|
|Number of Gear Trains||1|
|Maximum Strength of Gears||46 kg·cm|
|Shaft Maximum Axial Load||200 N|
|Shaft Maximum Radial Load||100 N|
|Encoder Resolution||360 CPR|
|Current Consumption Min||27 mA|
|Supply Voltage Min||4.5 V DC|
|Supply Voltage Max||5.5 V DC|
|Canadian HS Export Code||8501.10.00|
|American HTS Import Code||8501.10.60.60|
|Country of Origin||CN (China)|
The 3269E DC motor connects to the 1065 - PhidgetMotorControl 1-Motor.
The mounting holes on this motor are compatible with the 3339 - Mounting Bracket (NEMA23).
