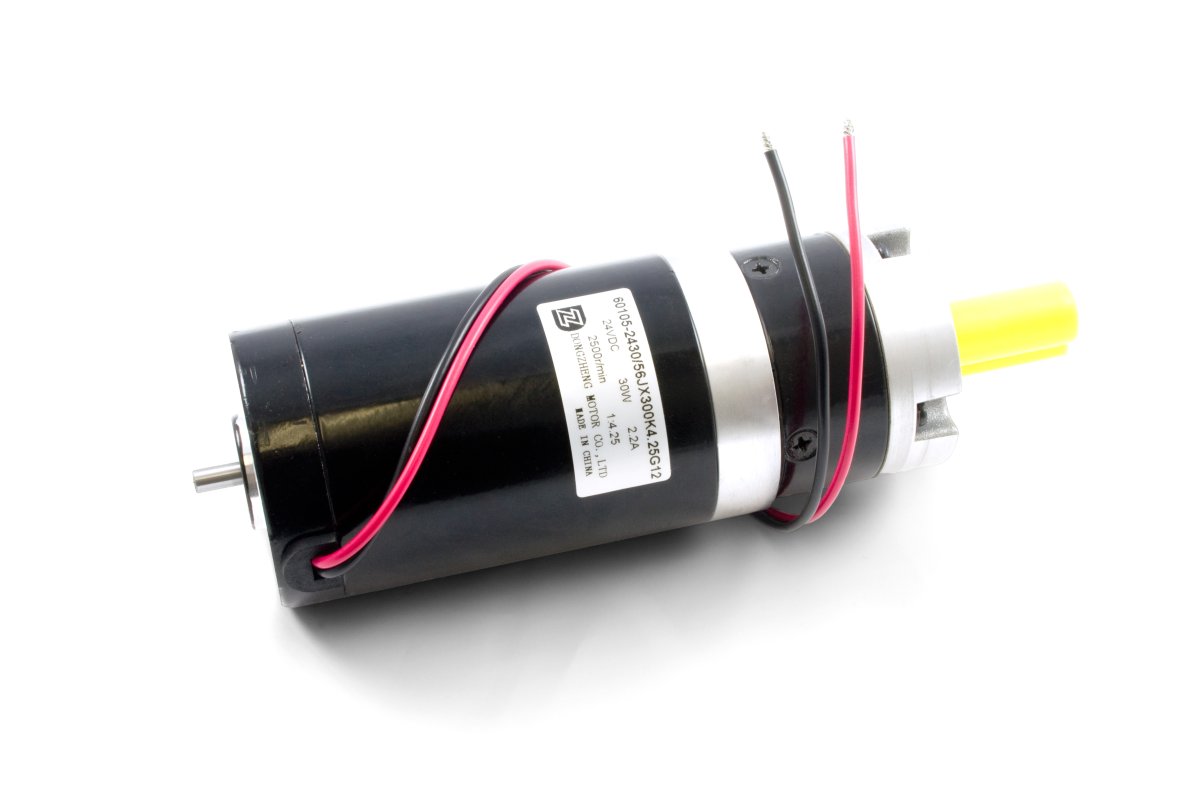

24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor

ID: 3269_1

This DC motor has a 4.25:1 gearbox, a rated speed of 588 RPM and rated torque of 5.1 Kg·cm.

Replaced by 3269_3
Replaced by the 3269_2.

The 3269 is a 24 volt gear motor, generating 5.1 Kg-cm of torque at 588 RPM. It's a large motor that provides lots of torque, even at higher speeds.

The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.

This particular revision of the 3269 has a shorter gearbox than its predecessor.

Product Specifications

Motor Properties
Motor Type DC Motor
Output Power (Mechanical) 30 W
Rated Speed 588 RPM
Rated Torque 5.1 kg·cm
Stall Torque 31.2 kg·cm
Electrical Properties
Rated Voltage 24 V DC
Rated Current 2.2 A
Stall Current 10.8 A
Physical Properties
Shaft Diameter 12 mm
Wire Length 300 mm
Weight 1.3 kg
Gearbox Specifications
Gearbox Type Planetary
Gear Ratio 4 14 : 1
Number of Gear Trains 1
Maximum Strength of Gears 46 kg·cm
Shaft Maximum Axial Load 200 N
Shaft Maximum Radial Load 100 N
Backlash Error
Customs Information
Canadian HS Export Code 8501.10.00
American HTS Import Code 8501.10.60.60
Country of Origin CN (China)

The 3269 DC motor connects to the 1065 - PhidgetMotorControl 1-Motor
