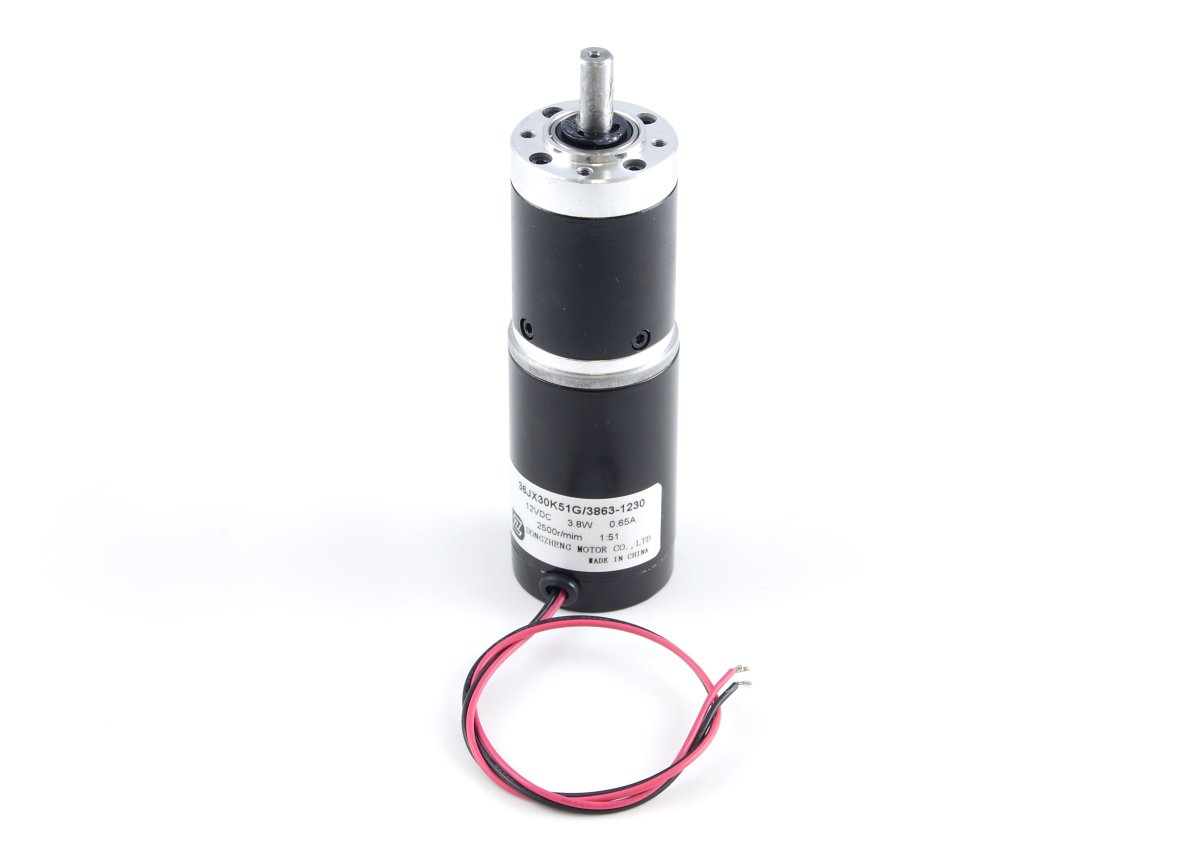

36JX30K51G/3863-1230 51:1 Planetary Gearbox DC Motor

ID: 3250_0

This DC motor has a 51:1 gearbox, a rated speed of 49 rpm, and rated torque of 0.65 N.m.

Discontinued

Replaced by the 3267 - 12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor.

The 3250 is a 3.8 Watt motor that consumes 0.65 Amps. It generates high torque at low speed.

Product Specifications

Motor Properties
Motor Type DC Motor
Output Power (Mechanical) 3.8 W
Rated Speed 58 RPM
Rated Torque 650 mN·m
Electrical Properties
Rated Voltage 12 V DC
Rated Current 650 mA
Stall Current 2.4 A
Physical Properties
Shaft Diameter 8 mm
Weight 553 g
Gearbox Specifications
Gearbox Type Planetary
Gear Ratio 51 : 1
Number of Gear Trains 3
Maximum Strength of Gears 6 N·m
Customs Information
Canadian HS Export Code 8501.10.00
American HTS Import Code 8501.10.40.60
Country of Origin CN (China)

The 3250 DC motor connects to the 1064 - PhidgetMotorControl HC .

If you are looking for a faster motor have a look at:
