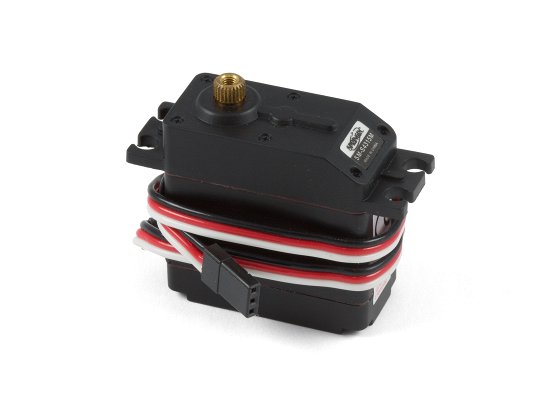

SpringRC Standard Servo - High Torque (SM-S4315M)

ID: 3208_0
With 12 kg·cm of torque and 180°of travel, this powerful servo is an amazing value.

Discontinued

Replaced by the 3203_0 - Hitec HS-485HB Deluxe Servo or the 3204_0 - Hitec HS-645MG Super Torque Servo.

The 3208 is a regular size high torque RC servo with double ball bearing and produces 13 kg-cm of torque at 4.8V.

Comes Packaged With

Accessories

Warning

warning RC servos are hobbyist remote control servos typically used in radio-controlled models, where they provide actuation for various mechanical systems such as the steering of a car, the flaps on a plane, or the rudder of a boat. These servos are not industrial grade and are not recommended for continuous heavy use.

Product Specifications

Motor Properties
Motor Type Limited Rotation Servo
Range of Rotation 180°
Maximum Speed at Rated Voltage 285°/s
Rated Torque 12.2 kg·cm
Physical Properties
Gear Train Material Metal
Bearing Type Double Ball Bearing
Motor Length 40 mm
Motor Width 41.3 mm
Motor Depth 20.7 mm
Wire Length 280 mm
Weight 60 g
Electrical Properties
Rated Voltage 5 V DC
Rated Current (on 1061 controller) 350 mA
Rated Current (on 1066 controller) 370 mA
Stall Current (on 1061 controller) 1.8 A
Stall Current (on 1066 controller) 450 mA

This Servo can be used with the following Phidget motor controllers:

The 1061 will produce a little more torque than the 1066.

When connecting the servo motor to the motor controller, make sure that the cable wires line up with the proper colors as marked on the conroller board.

Documents

Mechanical Drawing

Mechanical
A B C D E
41.3mm 20.7mm 40.0mm 50.3mm 9.9mm
