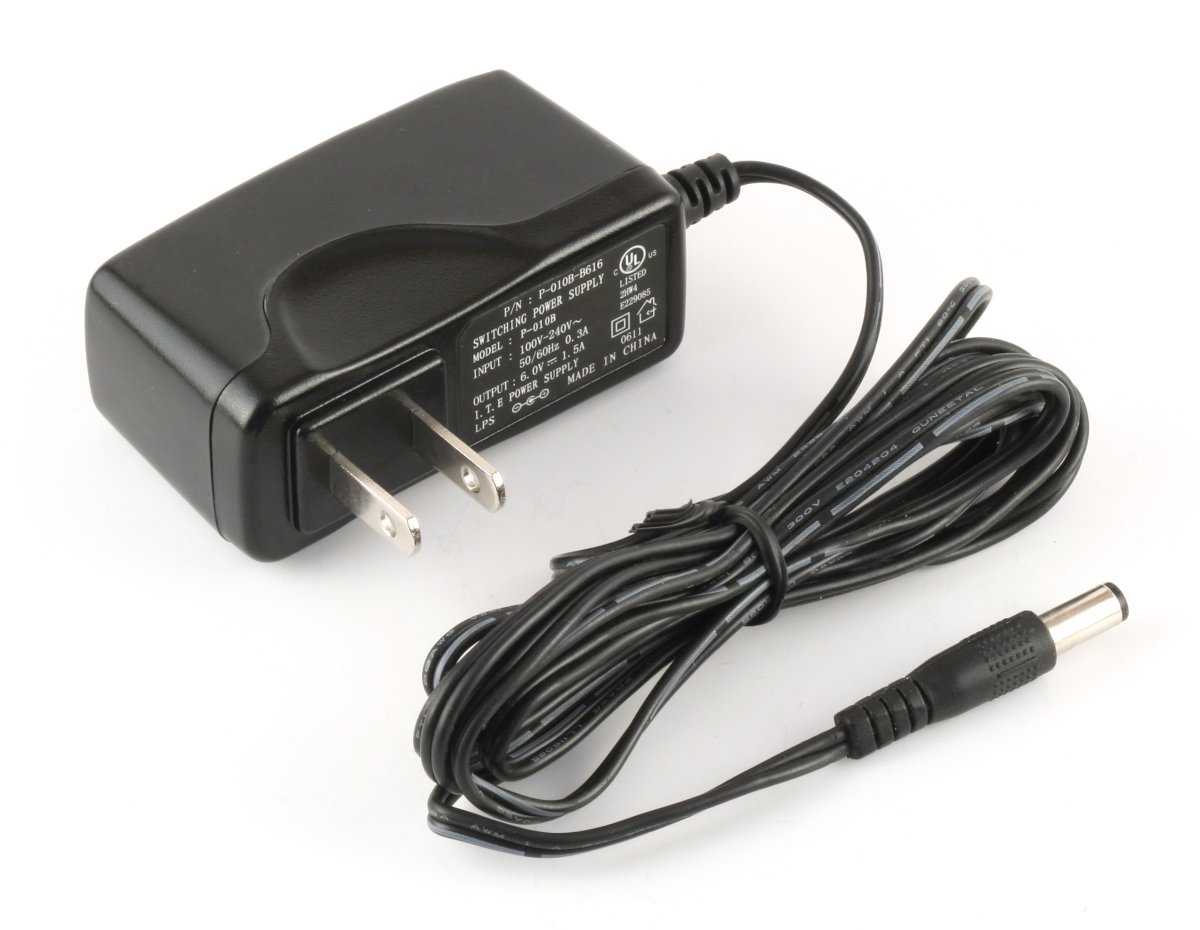

Power Supply 6VDC 1.5Amp - US

ID: 3005_0


Replaced by the 3024_0 - Power Supply 12VDC 2.0A - US.

The 3005 provides efficient power at 6VDC, 1.5 Amps, 9 Watts. It is protected against over-current.

If you need a power supply with a European type plug see the 3010 – Power Supply 6VDC 1.5Amp – EU.

The power supply can be used with many Phidgets that accept an external power supply, or for projects that need a small power source.

Product Specifications

Electrical Properties
Power Supply Voltage Max 6 V DC
Power Supply Current 1.5 A
Output Power 9 W
AC Input Voltage Min 100 V AC
AC Input Voltage Max 240 V AC
AC Input Frequency Min 50 Hz
AC Input Frequency Max 60 Hz
Protection Circuitry Short Circuit
Physical Properties
Wall Plug Style North American
Power Jack Hole Diameter 5.5 mm
Power Jack Pin Diameter 2.1 mm
Power Jack Polarity Center Positive
Customs Information
Canadian HS Export Code 8504.40.00
American HTS Import Code 8504.40.70.01
Country of Origin CN (China)

Should you exceed the power output, we also offer larger power supplies with 4 different style of plugs:
