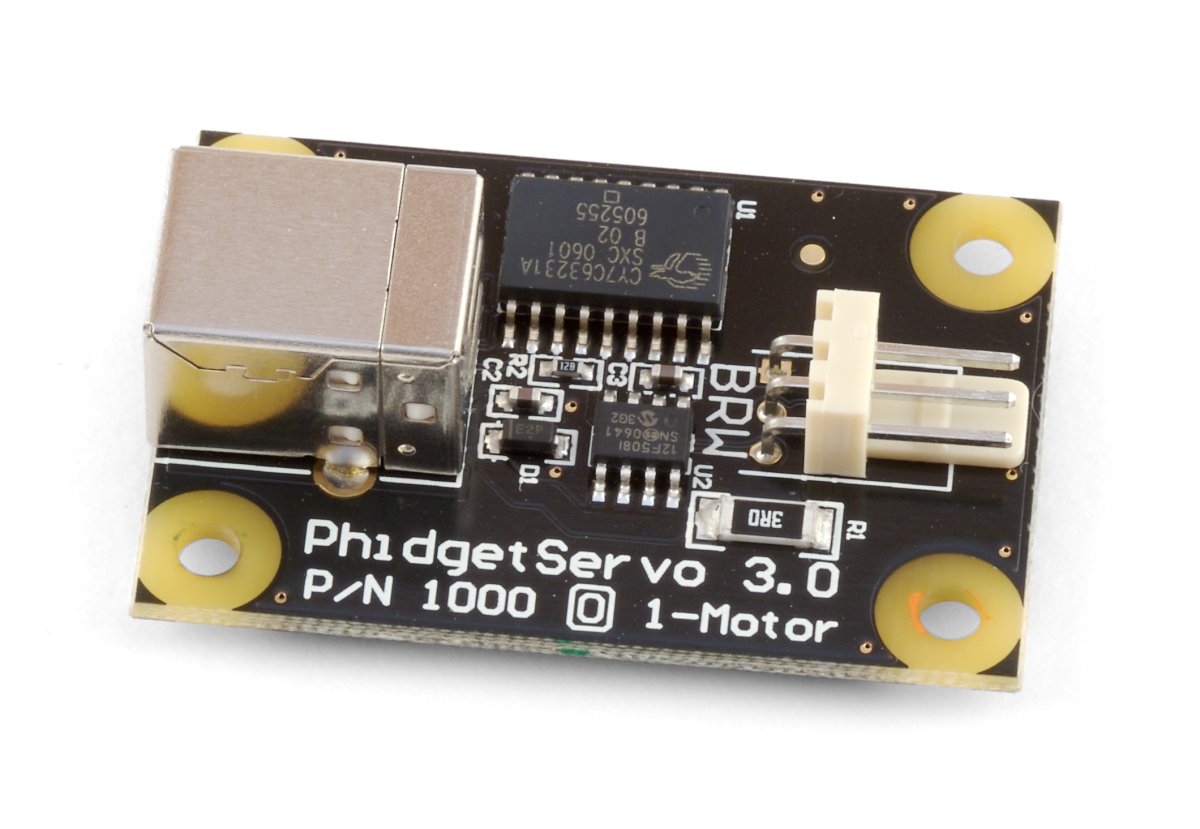

PhidgetServo 1-Motor

ID: 1000_0
Control one RC servo motor or actuator with this controller board. Powered solely by your computer via USB.

Discontinued

Replaced by the 1066 - PhidgetAdvancedServo 1-Motor.

The PhidgetServo 1-Motor is a USB based controller that can control one Remote Control (RC) servo motor powered directly from the USB port of a PC.

The PhidgetServo firmware can issue commands to the servo motor with a resolution of 0.1 degree. The motor's internal control system's step resolution will determine how the command is implemented. The actual motor shaft positioning is affected by the motor’s gear slop.


Comes packaged with


Product Specifications


Characteristic Value
Pulse Code Period 20ms
Minimum Pulse Width 10µs
Maximum Pulse Width 2.55ms
Time Resolution 1µs
Output Controller Update Rate 50 updates/second

Output Impedance (control) 600 ohms

Lower Position Limit -23.00°
Upper Position Limit 232.99°

Operating Motor Voltage 5.0V

USB-Power Current Specification 500 mA max
Device Quiscent Current Consumption 13mA
Device Active Current Consumption 500 mA max

Software Objects

Channel NameAPIChannel
RC Servo Motor Controller RCServo 0

API


Back Forward
Print this API

Documents

Code Samples

APILanguageOS
RCServo C Multiple Download
RCServo C# Windows Download
RCServo Java Multiple Download
RCServo JavaScript Any Download
RCServo Objective-C macOS Download
RCServo Python Multiple Download
RCServo Visual Basic .NET Windows Download
