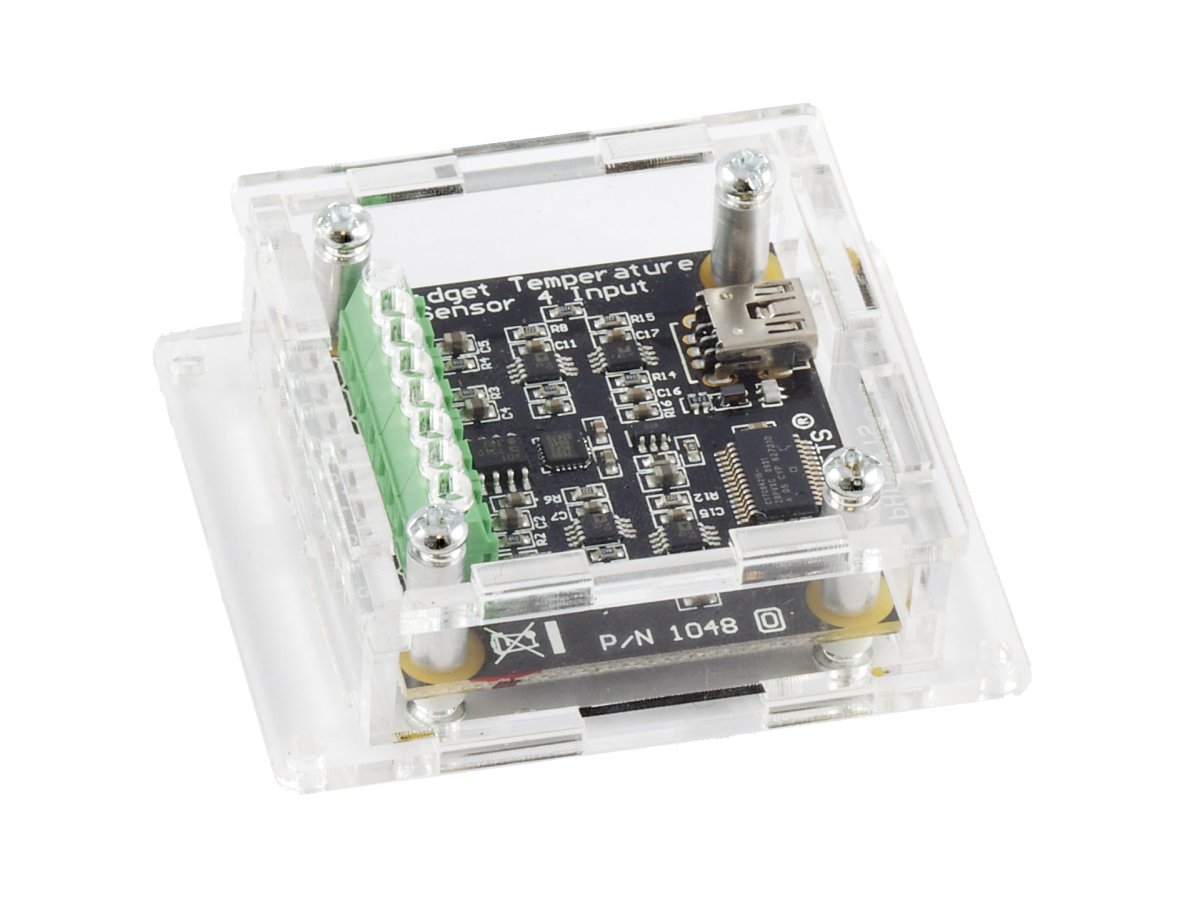

Acrylic Enclosure for the 1048

ID: 3810_1

This clear acrylic enclosure protects your Phidget and is assembled with a Phillips screwdriver.

Discontinued

Replaced by the 3855_0 - Plastic Shell Enclosure for the 1048

The 3810 Enclosure is designed to protect the Rev 0 version of the 1048 – PhidgetTemperatureSensor 4-Input while giving you access to all terminals and connectors through openings in the enclosure.

You can plug and unplug cables, connect and disconnect devices, without having to open the enclosure.

Note: The Phidget board is not included with the enclosure and must be purchased separately.

Package Includes

  • 6 clear acrylic pieces
  • Mounting Hardware (Nuts, bolts, spacers)

Required Tools

  • Small Phillips screwdriver

Phidgets

This enclosure is desgined to fit the following Phidgets. See the "Resources" tab for assembly instructions.

Product Specifications

Physical Properties
Fits Board Revision 0
Material Clear Acrylic
Thickness 3.2 mm
IP Rating 20

Warning


warning Be careful when tightening the mounting screws, as too much tension could crack the acrylic.

Documents

Projects

Product Physical Properties
Image Part Number Price Material
3855_0 $6.00 Polycarbonate
