Jaw Coupling Spider Series 08

ID: 3429_0

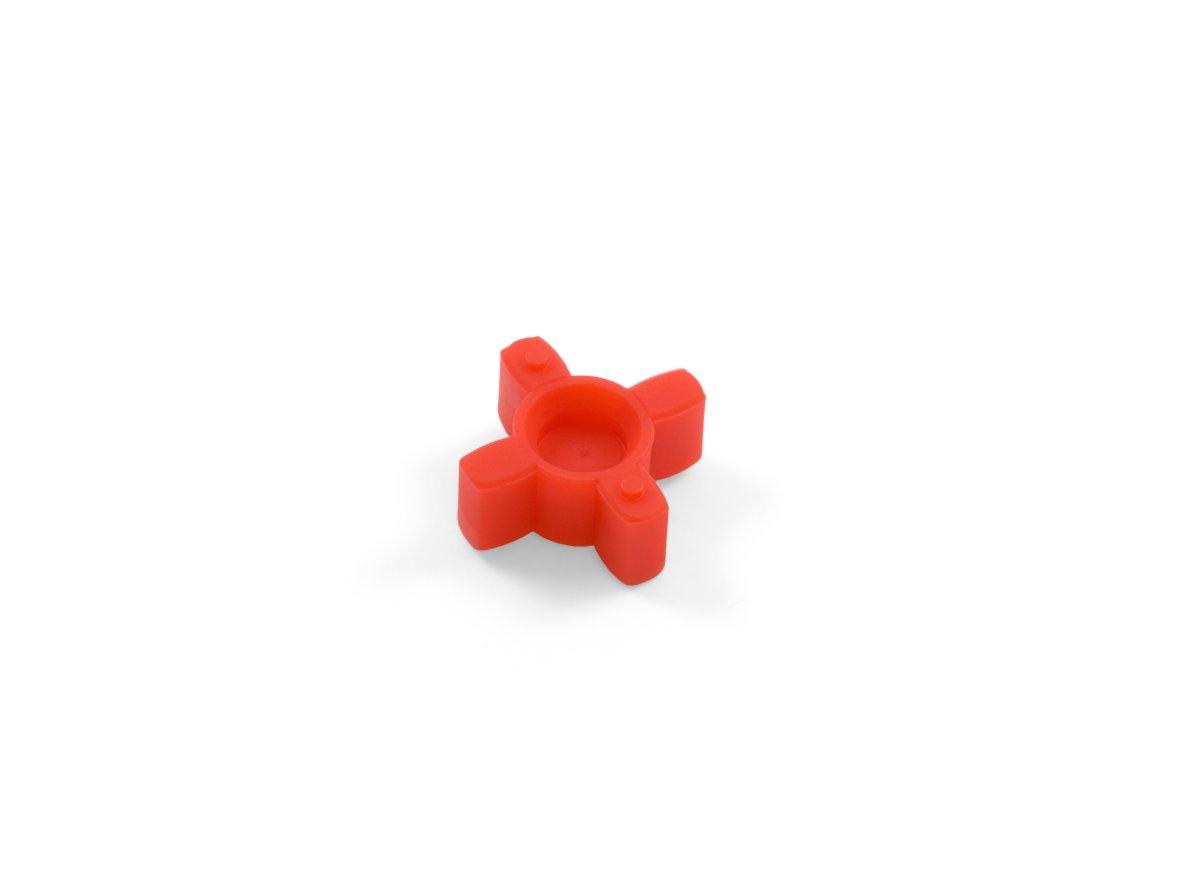

Use this elastomer coupling spider to connect two jaw half-couplings.

$2.50

Quantity Available: 164

Qty Price
5 $2.40
10 $2.30

This elastomer coupling spider joins two CL8-25 series jaw type half-couplings.

Assembly

This coupling spider connects any two half-couplings in the CL8-25 series. The half-couplings are sold separately. See the "Compatible Products" tab for a complete list.

FUNCTIONAL

Product Specifications

Physical Properties
Material Elastomer
Shore Hardness 98A

Jaw Couplings

FUNCTIONAL

Jaw couplings are designed to connect to other jaws in the same series, which gives you the option of coupling two differently sized shafts together. Between the two jaw couplings, the coupling spider is used to hold them in place while still allowing for a small amount of flex. The jaw couplings in the list below will fit together with this spider:

Product Physical Properties
Image Part Number Price Material Inner Diameter
3424_0 $7.50 Aluminium 4 mm
3425_0 $7.50 Aluminium 5 mm
3426_0 $7.50 Aluminium 6 mm
3427_0 $7.50 Aluminium 8 mm
3428_0 $7.50 Aluminium 12 mm
3429_0 $2.50 Elastomer
