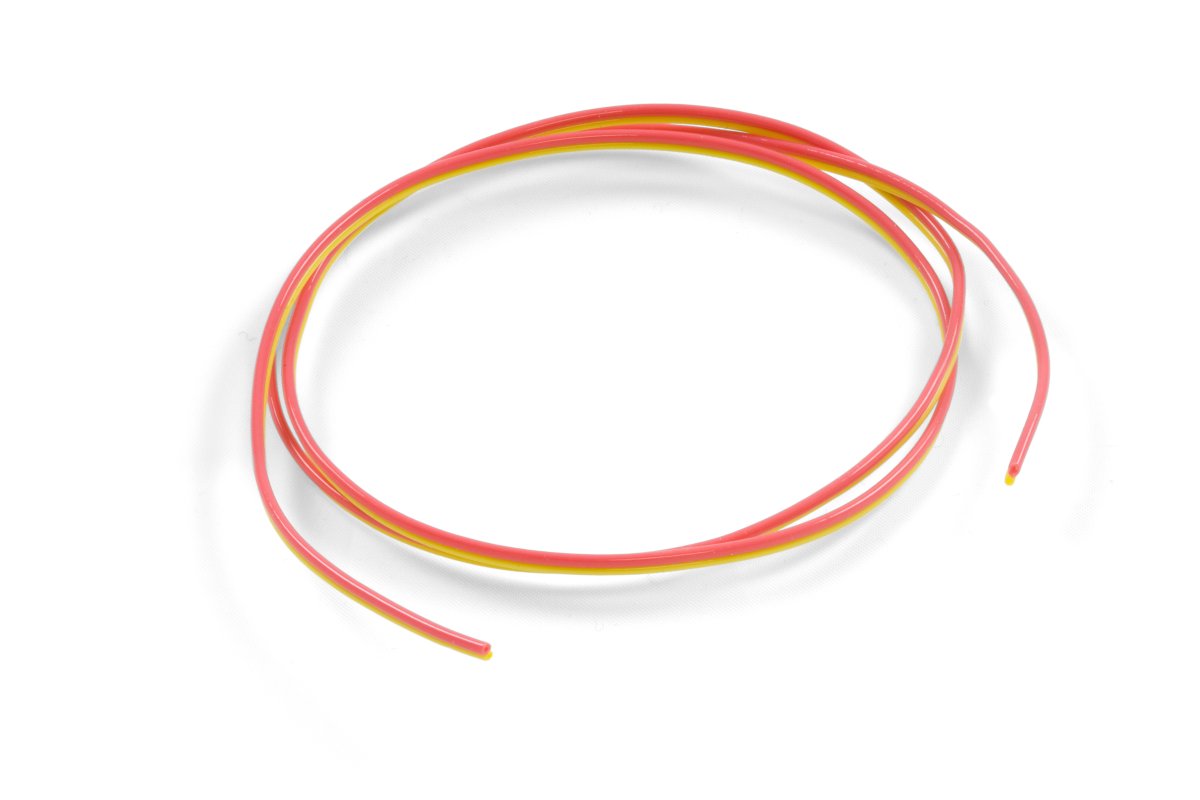

K-Type Thermocouple Extension Wire

ID: 3112_0

Extend the reach of your thermocouple with this specialized wire. Cut to length (in meters).

$4.00 /Meter

Quantity Available: 1000+m

Length Price
5m $3.84
10m $3.68
25m $3.60
50m $3.52
100m $3.44
Cut Fee
$1.25
Sold by the
Meter
Cut Range
1 - 100m

Number of Pieces
Piece Length in m

This K-type thermocouple extension wire can be purchased by the meter, allowing for additional customization of your temperature sensing system. When you connect it to your thermocouple, be sure to hook it up as follows:

Wire Color Polarity
Red -
Yellow +

If you hook the wire up backwards, you may experience unpredictable data and incorrect measurements.

Product Specifications

Temperature Sensor
Thermocouple Type K-Type
Physical Properties
Cable Gauge 24 AWG
Insulation Material Flame Retardant PVC
Operating Temperature Min -26 °C
Operating Temperature Max 105 °C

Thermocouple Accessories

Thermocouples cannot easily be soldered, since adding an additional metal junction will throw off the readings. The following products will help connect or extend thermocouple wires.

Thermocouples

You can use this extension wire and a thermocouple connector to extend any of the following thermocouples:

Product Temperature Sensor
Image Part Number Price Thermocouple Type Ambient Temperature Min Ambient Temperature Max Ambient Temperature Error Max
3108_2 $30.00 K -50 °C 700 °C ± 0.75 °C
TMP4103_0 $5.00 K -40 °C 200 °C ± 0.75 °C
TMP4104_0 $10.00 K -40 °C 400 °C ± 0.75 °C
TMP4106_0 $16.00 K -40 °C 400 °C 3.3 °C
TMP4107_0 $16.00 K -40 °C 400 °C 3.3 °C
