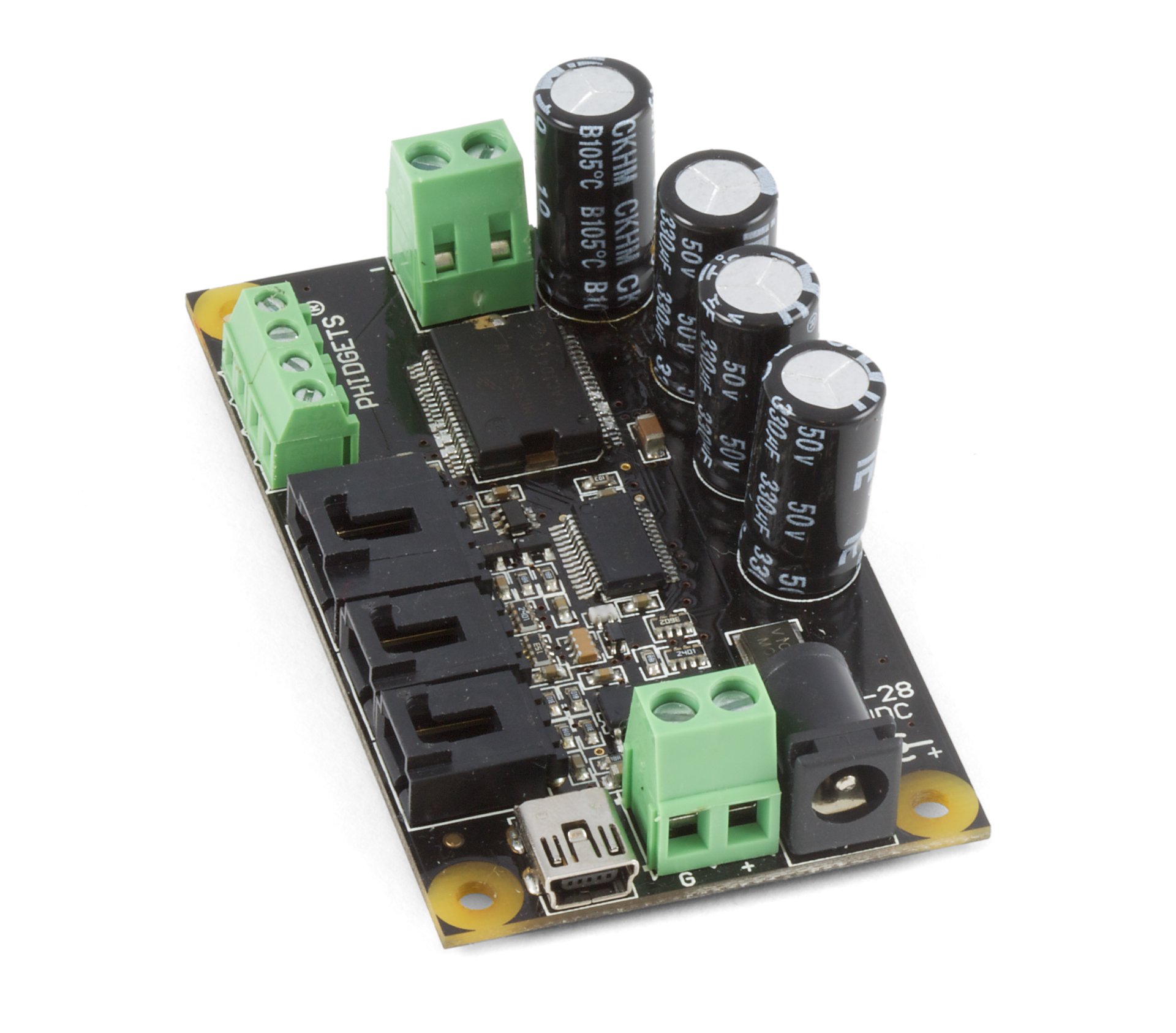

| 1065_0 - PhidgetMotorControl 1-Motor |
Product Features
- Controls direction, velocity and acceleration of one DC Motor
- Requires external Power Supply (9 to 28VDC)
- Built-in 2 digital inputs, 2 analog inputs, 1 encoder input
- Protected against over-current, over-voltage, and over-temperature
- Connects directly to a computer's USB Port
The 1065 lets you control the direction, velocity and acceleration of one DC Motor. The motor is powered by an external power supply (9 to 28VDC).
Brushed DC Motors are very simple to understand, but very difficult to control precisely. By applying a voltage, or pulsing a voltage rapidly, at the terminals of the motor, current flows through the motor, and it will begin rotating. Depending on the direction of the current, the motor will rotate clockwise or counterclockwise. The 1065 changes the effective voltage by changing the percentage of time the full supply voltage is applied to the motor. By switching the voltage very quickly (a technique called PWM), the controller is made smaller, more efficient, and cheaper.
Rough control of actual motor speed can be achieved automatically in software by using the Back EMF property, or current sensing.
Precise control of DC motors can be achieved by using encoders. You can implement control loops through software by using the data provided by the on-board digital inputs, analog inputs and encoder input. There is an event that triggers every 16 ms that returns the back-EMF value for the attached motor, which can be very useful for PID control. For more information, see the API in the User Guide.
The 1065 also provides over-current, over-voltage, and over-temperature protection to insure that the board and motor is not damaged.
- User Guide
- DC Motor and Controller Primer
- Motor Selection Guide
- Analog Input Primer
- Digital Input Primer
- Encoder Primer
- Mechanical Drawings
- Download 3D Step File
- Programming Resources
- A 3018 - Mini-USB Cable 180cm
- A hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
We do not carry enclosures for the 1065_0, because motor controllers are prone to overheating when kept in enclosed spaces for extended periods of time with no airflow.
Controller Properties
| Motor Type | DC Motor |
| Number of Motor Ports | 1 |
| Velocity Resolution | 0.39 % |
| Acceleration Resolution | 0.39 % per s² |
| Acceleration Min | 24.5 % per s² |
| Acceleration Max | 6250 % per s² |
| Acceleration Time Min | 32 ms |
| Acceleration Time Max | 8.2 s |
Encoder Interface
| Number of Encoder Inputs | 1 |
| Count Rate Max | 500000 cycles/s |
| Encoder Interface Resolution | x1 |
| Update Rate | 125 samples/s |
| Time Resolution | 0.33 ms |
| Encoder Input Low Voltage Max | 800 mV DC |
| Encoder Input High Voltage Min | 2.1 V DC |
| Encoder Pull-up Resistance | 2.4 kΩ |
Electrical Properties
| Supply Voltage Min | 9 V DC |
| Supply Voltage Max | 28 V DC |
| Continuous Motor Current Max | 5 A |
| Overcurrent Trigger | 8 A |
| Current Consumption Min | 20 mA |
| Current Consumption Max | 100 mA |
| USB Speed | Full Speed |
Physical Properties
| Recommended Wire Size (Power Terminal) | 12 - 24 AWG |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Analog Inputs
| Number of Analog Inputs | 2 |
| Input Impedance | 900 kΩ |
| 5V Reference Error Max | 0.5 % |
| Update Rate | 125 samples/s |
Digital Inputs
| Number of Digital Inputs | 2 |
| Pull-up Resistance | 15 kΩ |
| Low Voltage Max (True) | 800 mV DC |
| High Voltage Min (False) | 2.1 V DC |
| Digital Input Voltage Max | ± 15 V DC |
| Digital Input Update Rate | 125 samples/s |
| Trigger Length Min | 10 ms |
| Recommended Wire Size | 16 - 26 AWG |
