Phidgets Rover Kit

Avoid obstacles

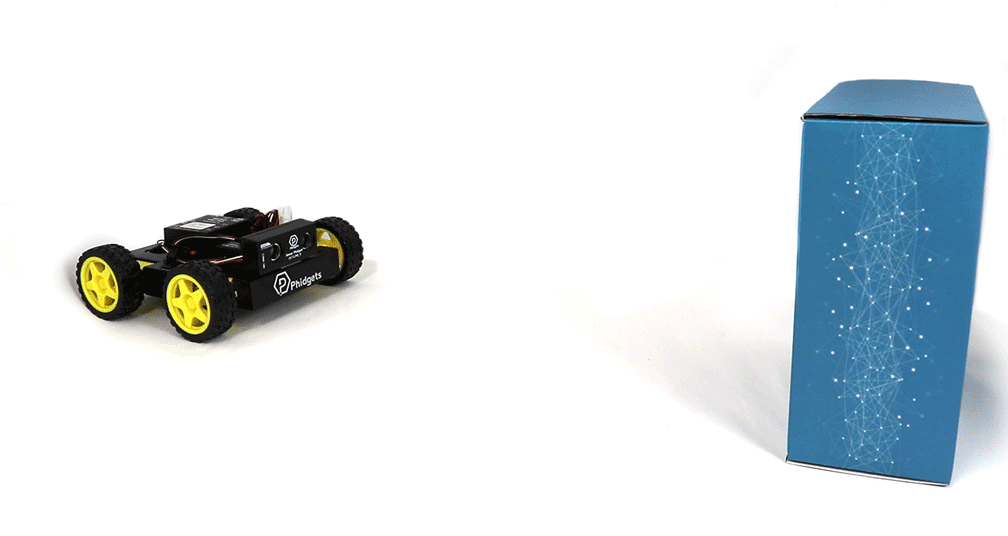

In this step, you will learn how to avoid obstacles using your Sonar Phidget.

You can keep working from your PhidgetsRover project in this step.

Add the following code to your file and run your code.

Write code (Java)

Not your programming language? Set your preferences so we can display relevant code examples


package phidgetsrover;

//Add Phidgets Library
import com.phidget22.*;

public class PhidgetsRover {
    public static void main(String[] args) throws Exception {

        //Connect to wireless rover
        Net.addServer("", "192.168.100.1", 5661, "", 0);

        //Create
        DCMotor leftMotors = new DCMotor();
        DCMotor rightMotors = new DCMotor();
        DistanceSensor sonar = new DistanceSensor();

        //Address
        leftMotors.setChannel(0);
        rightMotors.setChannel(1);

        //Open
        leftMotors.open(5000);
        rightMotors.open(5000);
        sonar.open(5000);

        while (true) {

            System.out.println("Distance: " + sonar.getDistance() + " mm");

            if (sonar.getDistance() < 200) {
                //Object detected! Stop motors
                leftMotors.setTargetVelocity(0);
                rightMotors.setTargetVelocity(0);
            } else {
                //Move forward slowly (25% max speed)
                leftMotors.setTargetVelocity(0.25);
                rightMotors.setTargetVelocity(0.25);
            }

            //Wait for 100 milliseconds
            Thread.sleep(100);
        }
    }
}


//Add Phidgets Library
import com.phidget22.*;

public class PhidgetsRover {
    public static void main(String[] args) throws Exception {

        //Connect to wireless rover
        Net.addServer("", "192.168.100.1", 5661, "", 0);

        //Create
        DCMotor leftMotors = new DCMotor();
        DCMotor rightMotors = new DCMotor();
        DistanceSensor sonar = new DistanceSensor();

        //Address
        leftMotors.setChannel(0);
        rightMotors.setChannel(1);

        //Open
        leftMotors.open(5000);
        rightMotors.open(5000);
        sonar.open(5000);

        while (true) {

            System.out.println("Distance: " + sonar.getDistance() + " mm");

            if (sonar.getDistance() < 200) {
                //Object detected! Stop motors
                leftMotors.setTargetVelocity(0);
                rightMotors.setTargetVelocity(0);
            } else {
                //Move forward slowly (25% max speed)
                leftMotors.setTargetVelocity(0.25);
                rightMotors.setTargetVelocity(0.25);
            }

            //Wait for 100 milliseconds
            Thread.sleep(100);
        }
    }
}


Write code (Python)

Not your programming language? Set your preferences so we can display relevant code examples


#Add Phidgets library
from Phidget22.Phidget import *
from Phidget22.Net import *
from Phidget22.Devices.DCMotor import *
from Phidget22.Devices.DistanceSensor import *
#Required for sleep statement
import time

#Connect to your rover
Net.addServer("", "192.168.100.1", 5661, "", 0)

#Create
leftMotors = DCMotor()
rightMotors = DCMotor()
sonar = DistanceSensor()

#Address
leftMotors.setChannel(0)
rightMotors.setChannel(1)

#Open
leftMotors.openWaitForAttachment(5000)
rightMotors.openWaitForAttachment(5000)
sonar.openWaitForAttachment(5000)

while(True):
    print("Distance: " + str(sonar.getDistance()) + " mm")

    if(sonar.getDistance() < 200):
        #Object detected! Stop motors
        leftMotors.setTargetVelocity(0)
        rightMotors.setTargetVelocity(0)
    else:
        #Move forward slowly (25% full speed)
        leftMotors.setTargetVelocity(0.25)
        rightMotors.setTargetVelocity(0.25)

    #Wait for 100 milliseconds
    time.sleep(0.1)


Write code (C#)

Not your programming language? Set your preferences so we can display relevant code examples


//Add Phidgets Library
using Phidget22;

namespace PhidgetsRover{
    class Program{
        static void Main(string[] args){

            //Connect to wireless rover
            Net.AddServer("", "192.168.100.1", 5661, "", 0);

            //Create
            DCMotor leftMotors = new DCMotor();
            DCMotor rightMotors = new DCMotor();
            DistanceSensor sonar = new DistanceSensor();

            //Address
            leftMotors.Channel = 0;
            rightMotors.Channel = 1;

            //Open
            leftMotors.Open(5000);
            rightMotors.Open(5000);
            sonar.Open(5000);

            while (true) {

                Console.WriteLine("Distance: " + sonar.Distance + " mm");

                if(sonar.Distance < 200) {
                    //Object detected! Stop motors
                    leftMotors.TargetVelocity = 0;
                    rightMotors.TargetVelocity = 0;
                } else {
                    //Move forward slowly (25% full speed)
                    leftMotors.TargetVelocity = 0.25;
                    rightMotors.TargetVelocity = 0.25;
                }

                //Wait for 100 milliseconds
                System.Threading.Thread.Sleep(100);
            }
        }
    }
}


Write code (Swift)

Not your programming language? Set your preferences so we can display relevant code examples

NOTE: the code below assumes you've created a single button and linked it to an IBAction named moveRover


import Cocoa
//Add Phidgets Library
import Phidget22Swift

class ViewController: NSViewController {

    @IBOutlet weak var sensorLabel: NSTextField!

    //Create
    let leftMotors = DCMotor()
    let rightMotors = DCMotor()
    let distanceSensor = DistanceSensor()

    override func viewDidLoad() {
        super.viewDidLoad()
        do{
            //Connect to wireless rover
            try Net.addServer(serverName: "", address: "192.168.100.1", port: 5661, flags: 0)

            //Address
            try leftMotors.setChannel(0)
            try rightMotors.setChannel(1)

            //Subscribe to event
            let _ = distanceSensor.distanceChange.addHandler(onDistanceChange)

            //Open
            try leftMotors.open()
            try rightMotors.open()
            try distanceSensor.open()

        }catch{
            print(error)
        }
    }

    func onDistanceChange(sender:DistanceSensor, distance:UInt32){
        do{
            if(distance < 200){
                //Object Detected!
                try leftMotors.setTargetVelocity(0)
                try rightMotors.setTargetVelocity(0)
            }
            else{
                //Move forward slowly (25% full speed)
                try leftMotors.setTargetVelocity(0.25)
                try rightMotors.setTargetVelocity(0.25)
            }

            //Update label
            DispatchQueue.main.async {
                self.sensorLabel.stringValue = String(distance) + " mm"
            }
        }catch{
            print(error)
        }
    }
}


Practice

  1. Try modifying the speed of the rover and the object detection distance.
  2. Instead of stopping when identifying an object, try backing up or turning.
Troubleshoot
  1. Your rover should drive in the direction that the Sonar Phidget is facing. If it isn’t, simply use negative values for your Target Velocity. This will make the motors spin the opposite direction!
  2. Make sure everything is plugged in properly and your VINT Hub is connected to your computer.
  3. Stop running other programs that are using your Phidgets before running a program.

If you are still having issues visit Advanced Troubleshooting
