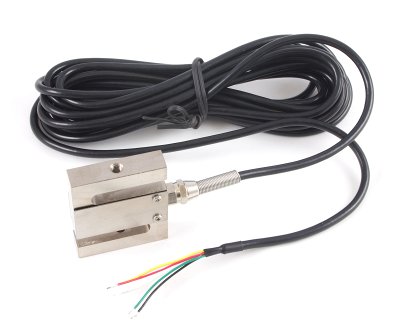

S-Type Load Cell - 100kg (C2)

ID: 3138_0

This load cell measures tensile forces (e.g. hanging loads). Calibration certificate included.

$45.00

Quantity Available: 357

Qty Price
5 $43.20
10 $41.40
25 $40.50
50 $39.60
100 $38.70
50+...

Load cells are used to measure weight or forces. They require a load cell interface to function.

Features

  • Measures up to 100 kilograms
  • Includes a calibration certificate
  • Extremely precise (±0.03% Full Scale)
  • Can be used in both tension and compression
  • Works with all Phidget Load Cell Interfaces

Guides

Videos

Load Cell Interfaces - Connection

Use the following table to connect this load cell to your load cell interface:

Function 3138Bridge Interface
+5V Red 5V
+ Green +
- White -
Ground Black G
Ground Yellow G
Functional Functional

Load Cell Interfaces

Product Board Properties
Part Number Price Controlled By Number of Bridge Inputs Data Rate Max
1046_0B
PhidgetBridge 4-Input
$90.00 USB (Mini-USB) 4 125 Hz
1046_1
PhidgetBridge 4-Input
$95.00 USB (Mini-USB) 4
DAQ1500_0
Wheatstone Bridge Phidget
$30.00 VINT 2 50 Hz

Product Specifications

Sensor Properties
Sensor Type Compression/Tension Load Cell
Controlled By Bridge Input
Load Cell Accuracy Class ** C2
Weight Capacity Max 100 kg
Maximum Overload 120 kg
Electrical Properties
Output Impedance 350 Ω
Supply Voltage Min 5 V DC
Supply Voltage Max 18 V DC
Physical Properties
Compensated Temperature Min -10 °C
Compensated Temperature Max 40 °C
Operating Temperature Min -20 °C
Operating Temperature Max 55 °C
Cable Length 3 m
Cable Gauge 20 AWG
Material Alloy Steel
Screw Thread Size M6
Customs Information
Canadian HS Export Code 8423.90.00
American HTS Import Code 8423.90.10.00
Country of Origin CN (China)

*See the included calibration sheet for exact values for your load cell.

** You can read more about what the Accuracy Class means in our Load Cell Guide.

Documents

Load Cells

Product Sensor Properties
Part Number Price Sensor Type Weight Capacity Max Creep Zero Balance Cell Repeatability Error Max Cell Non-Linearity Max Cell Hysteresis Max
3132_0
Single Point Load Cell - 780g
$6.00 Single Point Load Cell 780 g 1.6 g/hr ± 11.7 g ± 390 mg 390 mg 390 mg
3133_0
Single Point Load Cell - 5kg
$7.00 Single Point Load Cell 5 kg 5 g/hr ± 75 g ± 2.5 g 2.5 g 2.5 g
3134_0
Single Point Load Cell - 20kg
$7.00 Single Point Load Cell 20 kg 20 g/hr ± 300 g ± 10 g 10 g 10 g
3135_0
Single Point Load Cell - 50kg
$7.00 Single Point Load Cell 50 kg 50 g/hr ± 750 g ± 25 g 25 g 25 g
3136_0
Button Load Cell - 50kg (C2)
$45.00 Compression Load Cell 50 kg * 20 g/hr * ± 500 g * ± 100 g * 100 g
3137_0
Button Load Cell - 200kg (C2)
$45.00 Compression Load Cell 200 kg * 40 g/hr * ± 2 kg * ± 200 g * 400 g
3138_0
S-Type Load Cell - 100kg (C2)
$45.00 Compression/Tension Load Cell 100 kg
3139_0
Single Point Load Cell- 100g
$7.00 Single Point Load Cell 100 g ± 50 mg 50 mg 50 mg
3140_0
S-Type Load Cell - 500kg (C2)
$50.00 Compression/Tension Load Cell 500 kg
3141_0
Button Load Cell - 1000kg (C2)
$50.00 Compression Load Cell 1 Mg
FRC4114_0
Single Point Load Cell - 780g
$7.00 Single Point Load Cell 780 g 7.8 g/hr ± 78 g ± 390 mg 390 mg 390 mg
FRC4115_0
Single Point Load Cell - 5kg
$7.00 Single Point Load Cell 5 kg 50 g/hr ± 500 g ± 2.5 g 2.5 g 2.5 g
FRC4116_0
Single Point Load Cell - 25kg
$7.00 Single Point Load Cell 25 kg 250 g/hr ± 2.5 kg ± 12.5 g 12.5 g 12.5 g
FRC4120_0
Single Point Load Cell - 3kg (C2)
$20.00 Single Point Load Cell 3 kg 1.8 g/hr ± 45 g ± 900 mg 900 mg 900 mg
FRC4121_0
Single Point Load Cell - 10kg (C2)
$20.00 Single Point Load Cell 10 kg 6 g/hr ± 150 g ± 3 g 3 g 3 g
FRC4122_0
Single Point Load Cell - 30kg (C2)
$20.00 Single Point Load Cell 30 kg 18 g/hr ± 450 g ± 9 g 9 g 9 g
FRC4123_0
Single Point Load Cell - 100kg (C2)
$20.00 Single Point Load Cell 100 kg 60 g/hr ± 1.5 kg ± 30 g 30 g 30 g
FRC4125_0
Single Point Load Cell - 3kg (C4)
$35.00 Single Point Load Cell 3 kg 1.2 g/hr ± 150 g ± 300 mg 450 mg 300 mg
FRC4126_0
Single Point Load Cell - 10kg (C4)
$35.00 Single Point Load Cell 10 kg 4 g/hr ± 500 g ± 1 g 1.5 g 1 g
FRC4127_0
Single Point Load Cell - 30kg (C4)
$35.00 Single Point Load Cell 30 kg 12 g/hr ± 1.5 kg ± 3 g 4.5 g 3 g
FRC4128_0
Single Point Load Cell - 100kg (C4)
$25.00 Single Point Load Cell 100 kg 40 g/hr ± 5 kg ± 10 g 15 g 10 g
FRC4130_0
Single Point Load Cell - 300g (C3)
$25.00 Single Point Load Cell 300 g 180 mg/hr ± 15 g ± 45 mg 60 mg 45 mg
FRC4135_0
Single Point Load Cell - 200kg (C3)
$35.00 Single Point Load Cell 200 kg 80 g/hr ± 2 kg ± 40 g 40 g 40 g
FRC4136_0
Single Point Load Cell - 500kg (C3)
$35.00 Single Point Load Cell 500 kg 200 g/hr ± 5 kg ± 100 g 100 g 100 g
FRC4140_0
Platform Load Cells - 30kg (Matched set of 4)
$65.00 Platform (Matched Set) 30 kg 450 g/hr ± 2 kg ± 15 g 15 g 15 g
FRC4141_0
Platform Load Cells - 75kg (Matched set of 4)
$65.00 Platform (Matched Set) 75 kg 1.1 kg/hr ± 5 kg ± 37.5 g 37.5 g 37.5 g
FRC4142_0
Platform Load Cells - 150kg (Matched set of 4)
$65.00 Platform (Matched Set) 150 kg 2.3 kg/hr ± 7.5 kg ± 75 g 75 g 75 g
FRC4150_0
Shear Beam Load Cell - 500kg (C3)
$75.00 Shear Beam Load Cell 500 kg 200 g/hr ± 5 kg
FRC4160_0
S-Type Load Cell - 2kg (C2)
$40.00 S-Type Load Cell 2 kg 1.2 g/hr ± 40 g ± 400 mg 600 mg 400 mg
FRC4161_0
S-Type Load Cell - 10kg (C2)
$40.00 S-Type Load Cell 10 kg 6 g/hr ± 200 g ± 2 g 3 g 2 g
FRC4162_0
S-Type Load Cell - 30kg (C2)
$40.00 S-Type Load Cell 30 kg 18 g/hr ± 600 g ± 6 g 9 g 6 g
FRC4163_0
Steel S-Type Load Cell - 50kg (C3)
$40.00 S-Type Load Cell 50 kg 50 g/hr ± 750 g ± 25 g 25 g 25 g
FRC4164_0
Steel S-Type Load Cell - 100kg (C3)
$50.00 S-Type Load Cell 100 kg 100 g/hr ± 1.5 kg ± 50 g 50 g 50 g
FRC4165_0
Steel S-Type Load Cell - 200kg (C3)
$50.00 S-Type Load Cell 200 kg 200 g/hr ± 3 kg ± 100 g 100 g 100 g
FRC4166_0
Steel S-Type Load Cell - 500kg (C3)
$50.00 S-Type Load Cell 500 kg 500 g/hr ± 7.5 kg ± 250 g 250 g 250 g
FRC4167_0
Steel S-Type Load Cell - 1000kg (C3)
$60.00 S-Type Load Cell 1 Mg 1 kg/hr ± 15 kg ± 500 g 500 g 500 g
