HIN1100 User Guide

From Phidgets Support
Jump to: navigation, search


Getting Started

Next, you will need to connect the pieces:

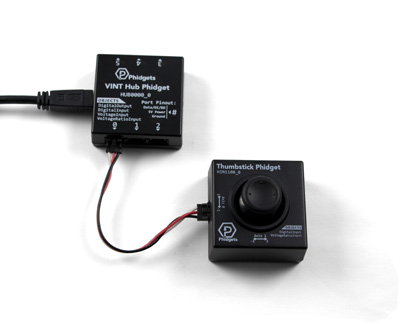

  1. Connect the VINT Hub to your computer with a USB cable.
  2. Connect the HIN1100 to the VINT Hub using the Phidget Cable.


Now that you have everything together, let's start using the HIN1100!.

Using the HIN1100

Phidget Control Panel

In order to demonstrate the functionality of the HIN1100, the Phidget Control Panel running on a Windows machine will be used.


The Phidget Control Panel is available for use on both macOS and Windows machines.

Windows

To open the Phidget Control Panel on Windows, find the Ph.jpg icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel

Windows PhidgetTaskbar.PNG

macOS

To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the Ph.jpg icon to bring up the Phidget Control Panel.


For more information, take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the HIN1100.

First Look

After plugging the HIN1100 into your computer and opening the Phidget Control Panel, you will see something like this:

HIN1100 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Digital Input (Button)

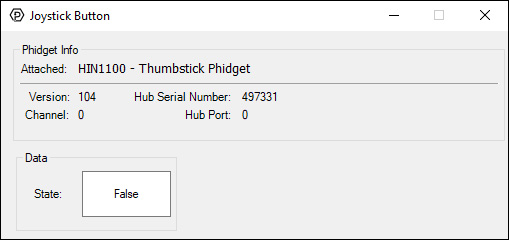

Double-click on a Digital Input Button object in order to run the example:

HIN1100 DigitalInput Example.jpg

General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

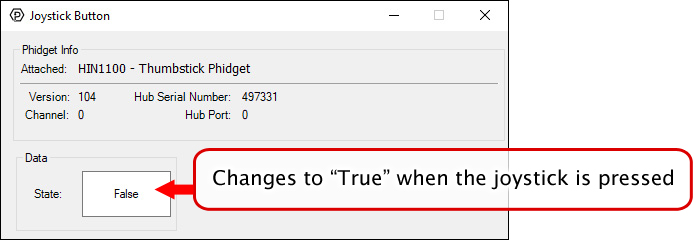

  • You can click down on the middle of the thumbstick to activate the digital input.

Voltage Ratio Input (Axis)

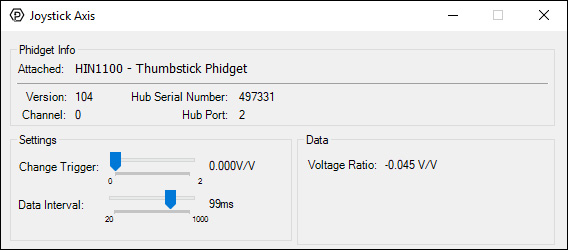

Double click on a Joystick Axis object in order to run the example:

HIN1100 VoltageRatioSensor Example.jpg

General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • At the top of the window, information about your device and the properties of this particular channel will be listed.
  • On the left, change trigger and/or data interval can be changed. For more information on these settings, see the Data Rate/Change Trigger page.
  • On the right, the voltage ratio is reported in volts per volt. In this case, a value of 1.0 corresponds to the maximum tilt in one direction of the axis, and a value of -1.0 corresponds to the maximum tilt in the other direction. Note: The stick will not be able to fully reach the -1.0 or 1.0 position while inside the enclosure.


Joystick Axes

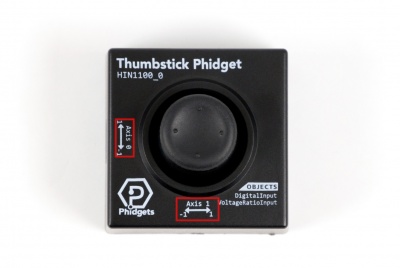

Each axis on the joystick is represented as its own VoltageRatioInput object. Axis 0 and Axis 1 are mapped to channels 0 and 1, respectively. You will have to open both channels to fully track the joystick's position.

Joystick Axes.jpg

Finding The Addressing Information

Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.

The locate Phidget button is found in the device information box

In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.

All the information you need to address your Phidget

Using Your Own Program

You are now ready to start writing your own code for the device. The best way to do that is to start from our examples:

This Phidget is compatible with the VoltageRatioInput Examples and the DigitalInput Examples.

Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Programming Languages page.

Technical Details

Converting to Polar Coordinates

HIN1100 Polar.jpg

For some applications, you may want to convert the 2-axis data of the Thumbstick Phidget into an angle and magnitude. This can be helpful if you want to use it like a video game controller. You can use the following formulas:

Where r is the magnitude, ϕ is the angle, and x and y are the two axis values. Atan2 is the 2-argument arctangent function, which you can find in most math libraries. For example, in C# you could use Math.Atan2(x,y). Depending on your language, ϕ may be in radians or degrees.

Since x and y range from -1.0 to 1.0, the resulting r will range from to , so you may also want to modify the first formula like so:

This way, your r will range from 0 to 1, which is more intuitive than to .

Current Consumption

The current consumption of the HIN1100 depends on the data interval being used:


What to do Next

  • Programming Languages - Find your preferred programming language here and learn how to write your own code with Phidgets!
  • Phidget Programming Basics - Once you have set up Phidgets to work with your programming environment, we recommend you read our page on to learn the fundamentals of programming with Phidgets.
