HIN1001 User Guide

From Phidgets Support
Jump to: navigation, search


Part 1: Setup

Select Device

Your Phidget must be connected to a device with a VINT port using a 3-wire Phidget cable.

Which device are you connecting to?

«
»

HUB0000 - Select OS

Select your Operating System:

«
»

HUB5000 - Select OS

Select your Operating System:

«
»

SBC3003 - Select OS

Select your Operating System:

«
»

HUB0000 - Windows

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Verify Connection

Step 1: Install Phidgets Library

Before you begin using your Phidgets, you will need to install the Phidget Library.

1. Download the installer for your system:

● 32-bit Installer Download

● 64-bit Installer Download

If you're unsure which one you should get, press ⊞ WIN + Pause/Break:

Before installing our libraries, be sure to read our Software License.

Step 1: Install Phidgets Library

2. Open the download. If it asks you for permission, select Run

Step 1: Install Phidgets Library

3a. Select Next

Step 1: Install Phidgets Library

3b. Read the Licence Agreement. Select Next.

Step 1: Install Phidgets Library

3c. Choose Installation Location. Select Next.

Step 1: Install Phidgets Library

3d. Confirm Install

Step 1: Install Phidgets Library

3e. Wait for Installation to complete. This should only take a few moments.

Step 1: Install Phidgets Library

3f. Installation Complete. Close installation Window.

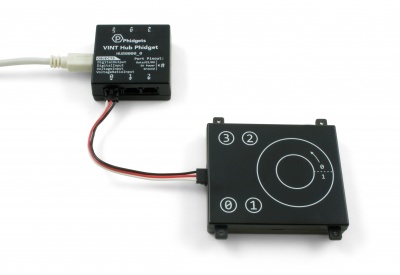

Step 2: Connect Devices

● Connect USB Cable to your Windows Computer

● Connect VINT Device(s)

Step 3: Verify Connection

1. Open the Phidgets Control Panel:

If your Control Panel does not open, look in your taskbar. Double click the Phidget Icon.

Step 3: Verify Connection

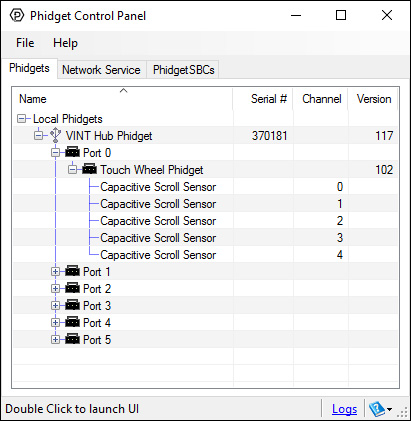

2. If connected, your Phidgets will appear in the Phidget Control Panel.

Done!

If you're able to see and interact with your devices in the Phidget Control Panel, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more help installing in Windows (e.g. manual install, using a VM, etc.), visit this page:

Windows Advanced Information

«
»

HUB0000 - MacOS

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Verify Connection

Step 1: Install Phidgets Library

Before you begin using your Phidgets, you will need to install the Phidget Library.

1. Download the installer for your system:

● OS X 10.11+: Installer Download

● Mac OS X 10.7 - OS X 10.10: Installer Download

● Mac OS X 10.5 - OS X 10.6: Installer Download


Before installing our libraries, be sure to read our Software License.

Step 1: Install Phidgets Library

2. Open the download and double click on Phidgets.pkg

Step 1: Install Phidgets Library

3a. Select Continue

Step 1: Install Phidgets Library

3b. Read and continue. Read the License and click Agree.

Step 1: Install Phidgets Library

3c. Here, you have the option to select the installation location. Select Install to continue.

Step 1: Install Phidgets Library

3d. MacOS may ask for permission to install. Enter your username and password and Install Software.

Step 1: Install Phidgets Library

3e. Wait for Installation to complete. This should only take a few moments.

Step 1: Install Phidgets Library

3f. You may see a message that the extension has been blocked. Select Open Security Preferences.

Step 1: Install Phidgets Library

3g. Beside the message for Phidgets Inc, Click Allow.

Step 1: Install Phidgets Library

3h. Installation Complete, Click Close.

Step 1: Install Phidgets Library

3i. To delete the installer, click Move to Trash.

Step 2: Connect Devices

● Connect USB Cable to your Mac

● Connect VINT Device(s)

Step 3: Verify Connection

1. Open the Phidgets Control Panel:

Step 3: Verify Connection

2. If connected, your Phidgets will appear in the Phidget Control Panel.

Done!

If you're able to see and interact with your devices in the Phidget Control Panel, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more info installing in MacOS (e.g. developer tools, driver extension, etc.), visit this page:

MacOS Advanced Information

«
»

HUB0000 - Linux

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Verify Connection

Step 1: Install Phidgets Library

1. First, you need to install the libusb-1.0 development libraries. For example, in Debian based distributions:

apt-get install libusb-1.0-0-dev


You’ll also need a C compiler and builder, if you don’t already have one installed.

apt-get install gcc
apt-get install make

Step 1: Install Phidgets Library

2. Next, download and unpack the Phidgets library:

libphidget22

Step 1: Install Phidgets Library

3. Use the following commands in the location you unpacked to install the library:

./configure
make
sudo make install

Step 1: Install Phidgets Library

4. (Optional) You can also download and unpack the following optional packages:

phidget22networkserver - Phidget Network Server, which enables the use of Phidgets over your network

phidget22admin - Admin tool to track who is connected to your Phidgets when using the network server

libphidget22extra - Required for phidget22networkserver and phidget22admin

libphidget22java - The Java libraries for Phidget22


For installation instructions for these packages, see the README file included with each one.

Step 2: Connect Devices

● Connect USB Cable to your Linux Computer

● Connect VINT Device(s)

Step 3: Verify Connection

1. The easiest way to verify that your libraries are working properly is to compile and run an example program. Download and unpack this C example that will detect any Phidget:

HelloWorld C Example

Step 3: Verify Connection

2. Next, open the terminal in the location where you unpacked the example. Compile and run using:

gcc HelloWorld.c -o HelloWorld -lphidget22
sudo ./HelloWorld

ou should receive a “Hello” line for each Phidget channel that is discovered:

I don’t see any Phidgets show up in the HelloWorld example

You need to run it with sudo in order to be able to access USB devices. In order to use Phidgets without sudo, you need to set your udev rules. See the Advanced Information page on the final slide of this guide for details.

Done!

If you're able to see your devices in the Hello World example, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more info installing in Linux (e.g. Udev rules, old versions, etc.), visit this page:

Linux Advanced Information

«
»

HUB5000 - Windows

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Connect Wireless

Step 4: Verify Connection

Step 1: Install Phidgets Library

Before you begin using your Phidgets, you will need to install the Phidget Library.

1. Download the installer for your system:

● 32-bit Installer Download

● 64-bit Installer Download

If you're unsure which one you should get, press ⊞ WIN + Pause/Break:

Before installing our libraries, be sure to read our Software License.

Step 1: Install Phidgets Library

2. Open the download. If it asks you for permission, select Run

Step 1: Install Phidgets Library

3a. Select Next

Step 1: Install Phidgets Library

3b. Read the Licence Agreement. Select Next.

Step 1: Install Phidgets Library

3c. Choose Installation Location. Select Next.

Step 1: Install Phidgets Library

3d. Select Next to confirm install.

Step 1: Install Phidgets Library

3e. Wait for Installation to complete. This should only take a few moments.

Step 1: Install Phidgets Library

3f. Installation Complete. Close installation Window.

Step 2: Connect Devices

● Connect Power Jack

● Connect VINT Device(s)

● Connect Ethernet to a Router or Switch (optional)

Step 3: Verify Connection

Choose a setup method:

«
»

Connection (Mobile)

Step 3: Connect Wireless

1. When you connect the power supply to the HUB5000, the red LED should turn on.

Step 3: Connect Wireless

2. On your mobile device, go to the Wi-Fi settings and connect to the HUB5000:

Step 3: Connect Wireless

3. When asked for a password, enter the password printed on the HUB5000’s label.

Step 3: Connect Wireless

4. Once your device is connected to the HUB5000’s WiFi signal:

Click on the WiFi network and find an option that says “Manage router” or “Visit homepage”.

Go to your internet browser and type 192.168.100.1 in the address bar.

Step 3: Connect Wireless

5. Create a password for your HUB5000. You'll use it to access the Configure Page from now on.

Step 3: Connect Wireless

6. Navigate to the network page. Change the Mode to Client.

Step 3: Connect Wireless

7. Enter your Wifi Network details and click Save & Apply. It may take a few minutes for your Phidgets to appear in the Phidget Control Panel, which we’ll check in the next step.

Step 4: Verify Connection

1. Open the Phidgets Control Panel:

If your Control Panel does not open, look in your taskbar. Double click the Phidget Icon.

Step 4: Verify Connection

2. If connected, your Phidgets will appear in the Phidget Control Panel.

Done!

If you're able to see and interact with your devices in the Phidget Control Panel, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more help installing in Windows (e.g. manual install, using a VM, etc.), visit this page:

Windows Advanced Information

«
»

Connection (Ethernet)

Step 3: Connect Wireless

1. When you connect the power supply to the HUB5000, the red LED should turn on.

Step 3: Connect Wireless

2. In your Web Browser, enter hub5000.local

Step 3: Connect Wireless

3. Create a password for your HUB5000. You'll use this password to access the Configure Page from now on.

Step 3: Connect Wireless

4. Navigate to the network page. Change the Mode to Client.

Step 3: Connect Wireless

5. Enter your Wifi Network details to use your Hub wirelessly and click Save & Apply. You can then disconnect the ethernet cable.

It may take a few minutes for your Phidgets to appear in the Phidget Control Panel, which we’ll check in the next step.

Step 4: Verify Connection

1. Open the Phidgets Control Panel:

If your Control Panel does not open, look in your taskbar. Double click the Phidget Icon.

Step 4: Verify Connection

2. If connected, your Phidgets will appear in the Phidget Control Panel.

Done!

If you're able to see and interact with your devices in the Phidget Control Panel, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more help installing in Windows (e.g. manual install, using a VM, etc.), visit this page:

Windows Advanced Information

«
»

HUB5000 - MacOS

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Connect Wireless

Step 4: Verify Connection

Step 1: Install Phidgets Library

Before you begin using your Phidgets, you will need to install the Phidget Library.

1. Download the installer for your system:

● OS X 10.11+: Installer Download

● Mac OS X 10.7 - OS X 10.10: Installer Download

● Mac OS X 10.5 - OS X 10.6: Installer Download


Before installing our libraries, be sure to read our Software License.

Step 1: Install Phidgets Library

2. Open the download and double click on Phidgets.pkg

Step 1: Install Phidgets Library

3a. Select Continue

Step 1: Install Phidgets Library

3b. Read and continue. Read the License and click Agree.

Step 1: Install Phidgets Library

3c. Here, you have the option to select the installation location. Select Install.

Step 1: Install Phidgets Library

3d. MacOS may ask for permission to install. Enter your username and password and Install Software.

Step 1: Install Phidgets Library

3e. Wait for Installation to complete. This should only take a few moments.

Step 1: Install Phidgets Library

3f. You may see a message that the extension has been blocked. Select Open Security Preferences.

Step 1: Install Phidgets Library

3g. Beside the message for Phidgets Inc, Click Allow.

Step 1: Install Phidgets Library

3h. Installation Complete, Click Close.

Step 1: Install Phidgets Library

3i. To delete the installer, click Move to Trash.

Step 2: Connect Devices

● Connect Power Jack

● Connect VINT Device(s)

● Connect Ethernet to a Router or Switch (optional)

Step 3: Verify Connection

Choose a setup method:

«
»

Connection (Mobile)

Step 3: Connect Wireless

1. When you connect the power supply to the HUB5000, the red LED should turn on.

Step 3: Connect Wireless

2. On your mobile device, go to the Wi-Fi settings and connect to the HUB5000:

Step 3: Connect Wireless

3. When asked for a password, enter the password printed on the HUB5000’s label.

Step 3: Connect Wireless

4. Once your device is connected to the HUB5000’s WiFi signal:

Click on the WiFi network and find an option that says “Manage router” or “Visit homepage”.

Go to your internet browser and type 192.168.100.1 in the address bar.

Step 3: Connect Wireless

5. Create a password for your HUB5000. You'll use this password to access the Configure Page from now on.

Step 3: Connect Wireless

6. Navigate to the network page. Change the Mode to Client.

Step 3: Connect Wireless

7. Enter your Wifi Network details and click Save & Apply. It may take a few minutes for your Phidgets to appear in the Phidget Control Panel, which we’ll check in the next step.

Step 4: Verify Connection

1. Open the Phidget Control Panel:

Step 4: Verify Connection

2. If connected, your Phidgets will appear in the Phidget Control Panel.

Done!

If you're able to see and interact with your devices in the Phidget Control Panel, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more info installing in MacOS (e.g. developer tools, driver extension, etc.), visit this page:

MacOS Advanced Information

«
»

Connection (Ethernet)

Step 3: Connect Wireless

1. When you connect the power supply to the HUB5000, the red LED should turn on.

Step 3: Connect Wireless

2. In your Web Browser, enter hub5000.local

Step 3: Connect Wireless

3. Create a password for your HUB5000. You'll use this password to access the Configure Page from now on.

Step 3: Connect Wireless

4. Navigate to the network page. Change the Mode to Client.

Step 3: Connect Wireless

5. Enter your Wifi Network details to use your Hub wirelessly and click Save & Apply. You can then disconnect the ethernet cable.

It may take a few minutes for your Phidgets to appear in the Phidget Control Panel, which we’ll check in the next step.

Step 4: Verify Connection

1. Open the Phidget Control Panel:

Step 4: Verify Connection

2. If connected, your Phidgets will appear in the Phidget Control Panel.

Done!

If you're able to see and interact with your devices in the Phidget Control Panel, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more info installing in MacOS (e.g. developer tools, driver extension, etc.), visit this page:

MacOS Advanced Information

«
»

HUB5000 - Linux

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Connect Wireless

Step 4: Verify Connection

Step 1: Install Phidgets Library

1. First, you need to install the libusb-1.0 development libraries. For example, in Debian based distributions:

apt-get install libusb-1.0-0-dev


You’ll also need a C compiler and builder, if you don’t already have one installed.

apt-get install gcc
apt-get install make

Step 1: Install Phidgets Library

2. Next, download and unpack the Phidgets library:

libphidget22

Step 1: Install Phidgets Library

3. Use the following commands in the location you unpacked to install the library:

./configure
make
sudo make install

Step 1: Install Phidgets Library

4. (Optional) You can also download and unpack the following optional packages:

phidget22networkserver - Phidget Network Server, which enables the use of Phidgets over your network

phidget22admin - Admin tool to track who is connected to your Phidgets when using the network server

libphidget22extra - Required for phidget22networkserver and phidget22admin

libphidget22java - The Java libraries for Phidget22


For installation instructions for these packages, see the README file included with each one.

Step 2: Connect Devices

● Connect Power Jack

● Connect VINT Device(s)

● Connect Ethernet to a Router or Switch (optional)

Step 3: Verify Connection

Choose a setup method:

«
»

Connection (Mobile)

Step 3: Connect Wireless

1. When you connect the power supply to the HUB5000, the red LED should turn on.

Step 3: Connect Wireless

2. On your mobile device, go to the Wi-Fi settings and connect to the HUB5000:

Step 3: Connect Wireless

3. When asked for a password, enter the password printed on the HUB5000’s label.

Step 3: Connect Wireless

4. Once your device is connected to the HUB5000’s WiFi signal:

Click on the WiFi network and find an option that says “Manage router” or “Visit homepage”.

Go to your internet browser and type 192.168.100.1 in the address bar.

Step 3: Connect Wireless

5. Create a password for your HUB5000. You'll use this password to access the Configure Page from now on.

Step 3: Connect Wireless

6. Navigate to the network page. Change the Mode to Client.

Step 3: Connect Wireless

7. Enter your Wifi Network details and click Save & Apply. It may take a few minutes for your Phidgets to appear in the Phidget Control Panel, which we’ll check in the next step.

Step 4: Verify Connection

1. The easiest way to verify that your libraries are working properly is to compile and run an example program. Download and unpack this C example that will detect any Phidget:

HelloWorld C Example

Step 3: Verify Connection

2. Next, open the terminal in the location where you unpacked the example. Compile and run using:

gcc HelloWorld.c -o HelloWorld -lphidget22
sudo ./HelloWorld

ou should receive a “Hello” line for each Phidget channel that is discovered:

I don’t see any Phidgets show up in the HelloWorld example

You need to run it with sudo in order to be able to access USB devices. In order to use Phidgets without sudo, you need to set your udev rules. See the Advanced Information page on the final slide of this guide for details.

Done!

If you're able to see your devices in the Hello World example, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more info installing in Linux (e.g. Udev rules, old versions, etc.), visit this page:

Linux Advanced Information

«
»

Connection (Ethernet)

Step 3: Connect Wireless

1. When you connect the power supply to the HUB5000, the red LED should turn on.

Step 3: Connect Wireless

2. In your Web Browser, enter hub5000.local

Step 3: Connect Wireless

3. Create a password for your HUB5000. You'll use this password to access the Configure Page from now on.

Step 3: Connect Wireless

4. Navigate to the network page. Change the Mode to Client.

Step 3: Connect Wireless

5. Enter your Wifi Network details to use your Hub wirelessly and click Save & Apply. You can then disconnect the ethernet cable.

It may take a few minutes for your Phidgets to appear in the Phidget Control Panel, which we’ll check in the next step.

Step 4: Verify Connection

1. The easiest way to verify that your libraries are working properly is to compile and run an example program. Download and unpack this C example that will detect any Phidget:

HelloWorld C Example

Step 3: Verify Connection

2. Next, open the terminal in the location where you unpacked the example. Compile and run using:

gcc HelloWorld.c -o HelloWorld -lphidget22
sudo ./HelloWorld

ou should receive a “Hello” line for each Phidget channel that is discovered:

I don’t see any Phidgets show up in the HelloWorld example

You need to run it with sudo in order to be able to access USB devices. In order to use Phidgets without sudo, you need to set your udev rules. See the Advanced Information page on the final slide of this guide for details.

Done!

If you're able to see your devices in the Hello World example, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more info installing in Linux (e.g. Udev rules, old versions, etc.), visit this page:

Linux Advanced Information

«
»

SBC3003 - Windows

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Verify Connection

Step 4: Connect Wireless

Step 1: Install Phidgets Library

Before you begin using your Phidgets, you will need to install the Phidget Library.

1. Download the installer for your system:

● 32-bit Installer Download

● 64-bit Installer Download

If you're unsure which one you should get, press ⊞ WIN + Pause/Break:

Before installing our libraries, be sure to read our Software License.

Step 1: Install Phidgets Library

2. Open the download. If it asks you for permission, select Run.

Step 1: Install Phidgets Library

3a. Select Next.

Step 1: Install Phidgets Library

3b. Read the Licence Agreement. Select Next.

Step 1: Install Phidgets Library

3c. Choose Installation Location. Select Next.

Step 1: Install Phidgets Library

3d. Select Next.

Step 1: Install Phidgets Library

3e. Wait for Installation to complete. This should only take a few moments.

Step 1: Install Phidgets Library

3f. Installation Complete. Close installation Window.

Step 2: Connect Devices

● Connect Power Jack

● Connect VINT Device(s)

● Connect Ethernet to a Router or Switch in the same network as your Windows PC

Step 3: Verify Connection

1. Open the Phidgets Control Panel:

If your Control Panel does not open, look in your taskbar. Double click the Phidget Icon.

Step 3: Verify Connection

2. If connected, your Phidgets will appear in the Phidget Control Panel.

Now that the SBC's ethernet connection is verified, it can be connected to wifi.

If you don't have a USB wifi adapter or you're planning to stay on ethernet, you can scroll down to

Part 2: Using Your Phidget

Step 4: Connect Wireless

1. In your web browser, enter phidgetsbc.local

Step 4: Connect Wireless

2. Create a password for your SBC. You'll use this to access the configuration page from now on.

Step 4: Connect Wireless

3. Navigate to Network -> Wireless. Select your Network, enter the wifi password and select Add This Network.

Step 4: Connect Wireless

4. Scroll down to your saved networks, click on your network and select Join This Network.

Step 4: Connect Wireless

5. It should now say connected in the status column.

You can now unplug the ethernet cable.

Step 4: Connect Wireless

6. Return to the Phidget Control Panel to access your Phidgets.

Done!

If you're able to see and interact with your devices in the Phidget Control Panel, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more help installing in Windows (e.g. manual install, using a VM, etc.), visit this page:

Windows Advanced Information

«
»

SBC3003 - MacOS

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Verify Connection

Step 4: Connect Wireless

Step 1: Install Phidgets Library

Before you begin using your Phidgets, you will need to install the Phidget Library.

1. Download the installer for your system:

● OS X 10.11+: Installer Download

● Mac OS X 10.7 - OS X 10.10: Installer Download

● Mac OS X 10.5 - OS X 10.6: Installer Download


Before installing our libraries, be sure to read our Software License.

Step 1: Install Phidgets Library

2. Open the download and double click on Phidgets.pkg

Step 1: Install Phidgets Library

3a. Select Continue

Step 1: Install Phidgets Library

3b. Read and continue. Read the License and click Agree.

Step 1: Install Phidgets Library

3c. Here, you have the option to select the installation location. Select Install.

Step 1: Install Phidgets Library

3d. MacOS may ask for permission to install. Enter your username and password and Install Software.

Step 1: Install Phidgets Library

3e. Wait for Installation to complete. This should only take a few moments.

Step 1: Install Phidgets Library

3f. You may see a message that the extension has been blocked. Select Open Security Preferences.

Step 1: Install Phidgets Library

3g. Click Allow.

Step 1: Install Phidgets Library

3h. Installation Complete, Click Close.

Step 1: Install Phidgets Library

3i. To delete the installer, click Move to Trash.

Step 2: Connect Devices

● Connect Power Jack

● Connect VINT Device(s)

● Connect Ethernet to a Router or Switch in the same network as your Mac

Step 3: Verify Connection

1. Open the Phidget Control Panel:

Step 3: Verify Connection

2. If connected, your Phidgets will appear in the Phidget Control Panel.

Now that the SBC's ethernet connection is verified, it can be connected to wifi.

If you don't have a USB wifi adapter or you're planning to stay on ethernet, you can scroll down to

Part 2: Using Your Phidget

Step 4: Connect Wireless

1. In your web browser, enter phidgetsbc.local

Step 4: Connect Wireless

2. Create a password for your SBC. You will use this to access the configuration page from now on.

Step 4: Connect Wireless

3. Navigate to Network -> Wireless. Select your Network, enter the wifi password and select Add This Network.

Step 4: Connect Wireless

4. Scroll down to your saved networks, click on your network and select Join This Network.

Step 4: Connect Wireless

5. It should now say connected in the status column.

You can now unplug the ethernet cable.

Step 4: Connect Wireless

6. Return to the Phidget Control Panel to access your Phidgets.

Done!

If you're able to see and interact with your devices in the Phidget Control Panel, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more info installing in MacOS (e.g. developer tools, driver extension, etc.), visit this page:

MacOS Advanced Information

«
»

SBC3003 - Linux

Step 1: Install Phidgets Library

Step 2: Connect Devices

Step 3: Verify Connection

Step 4: Connect Wireless

Step 1: Install Phidgets Library

1. First, you need to install the libusb-1.0 development libraries. For example, in Debian based distributions:

apt-get install libusb-1.0-0-dev


You’ll also need a C compiler and builder, if you don’t already have one installed.

apt-get install gcc
apt-get install make

Step 1: Install Phidgets Library

2. Next, download and unpack the Phidgets library:

libphidget22

Step 1: Install Phidgets Library

3. Use the following commands in the location you unpacked to install the library:

./configure
make
sudo make install

Step 1: Install Phidgets Library

4. (Optional) You can also download and unpack the following optional packages:

phidget22networkserver - Phidget Network Server, which enables the use of Phidgets over your network

phidget22admin - Admin tool to track who is connected to your Phidgets when using the network server

libphidget22extra - Required for phidget22networkserver and phidget22admin

libphidget22java - The Java libraries for Phidget22


For installation instructions for these packages, see the README file included with each one.

Step 2: Connect Devices

● Connect Power Jack

● Connect VINT Device(s)

● Connect Ethernet to a Router or Switch in the same network as your Linux machine

Step 3: Verify Connection

1. The easiest way to verify that your libraries are working properly is to compile and run an example program. Download and unpack this C example that will detect any Phidget:

HelloWorld C Example

Step 3: Verify Connection

2. Next, open the terminal in the location where you unpacked the example. Compile and run using:

gcc HelloWorld.c -o HelloWorld -lphidget22
sudo ./HelloWorld

If everything is working, you should receive a “Hello” line for each Phidget channel that is discovered:

I don’t see any Phidgets show up in the HelloWorld example

You need to run it with sudo in order to be able to access USB devices. In order to use Phidgets without sudo, you need to set your udev rules. See the Advanced Information page on the final slide of this guide for details.

Now that the SBC's ethernet connection is verified, it can be connected to wifi.

If you don't have a USB wifi adapter or you're planning to stay on ethernet, you can scroll down to

Part 2: Using Your Phidget

Step 4: Connect Wireless

1. In your web browser, enter phidgetsbc.local

If you're using a terminal-only Linux machine, use the browser on your phone instead.

(If you use a phone, you need to enter the IP address your router assigned to the SBC instead of phidgetsbc.local)

Step 4: Connect Wireless

2. Create a password for your SBC. You will use this to access the configuration page from now on.

Step 4: Connect Wireless

3. Navigate to Network -> Wireless. Select your Network, enter the wifi password and select Add This Network.

Step 4: Connect Wireless

4. Scroll down to your saved networks, click on your network and select Join This Network.

Step 4: Connect Wireless

5. It should now say connected in the status column.

You can now unplug the ethernet cable.

Step 4: Connect Wireless

6. Run the HelloWorld example again to confirm that your Phidgets are accessible over wifi.

Done!

If you're able to see your devices in the Hello World example, you're done with the Setup part of this guide.

Scroll down to Part 2: Using Your Phidget for the next step.


For more info installing in Linux (e.g. Udev rules, old versions, etc.), visit this page:

Linux Advanced Information

«
»

Part 2: Using Your Phidget

About

The Touch Wheel Phidget provides one scroll wheel and seven capacitive touch regions with adjustable sensitivity.

Explore Your Phidget Channels Using The Control Panel

You can use your Control Panel to explore your Phidget's channels.

1. Open your Control Panel, and you will find the following channels:

HIN1001 Panel.jpg

2. Double click on a channel to open an example program. Each channel belongs to the CapacitiveTouch channel class:

Expand All
Capacitive Scroll Sensor: Detects a touch or the close proximity of your hand or other conductive objects

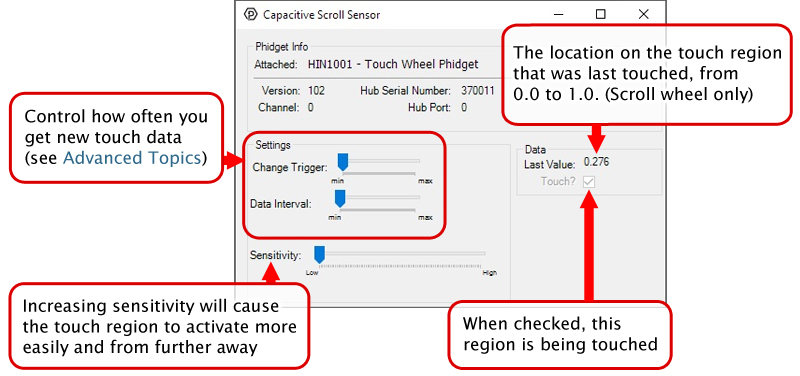

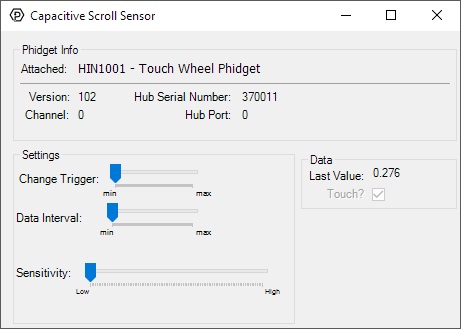

In your Control Panel, double click on "Capacitive Scroll Sensor":


Part 3: Create your Program

1. Setting up your Programming Environment

2. Phidget Programming Basics

Part 4: Advanced Topics and Troubleshooting

Expand All
How do I know what channel, serial number, or hub port to use in my program?

Before you open a Phidget channel in your program, you can set these properties to specify which channel to open. You can find this information through the Control Panel.

1. Open the Control Panel and double-click on the red map pin icon:

The locate Phidget button is found in the device information box

2. The Addressing Information window will open. Here you will find all the information you need to address your Phidget in your program.

All the information you need to address your Phidget


See the Phidget22 API for your language to determine exact syntax for each property.

How can I plot or record sensor data?

In the Phidget Control Panel, open the channel for your device and click on the Plot.jpg icon next to the data type that you want to plot. This will open up a new window:


If you need more complex functionality such as logging multiple sensors to the same sheet or performing calculations on the data, you'll need to write your own program. Generally this will involve addressing the correct channel, opening it, and then creating an Event Handler and adding graphing/logging code to it.

The quickest way to get started is to download some sample code for your desired programming language and then search google for logging or plotting in that language (e.g. "how to log to csv in python") and add the code to the existing change handler.

Filtering

You can perform filtering on the raw data in order to reduce noise in your graph. For more information, see the Control Panel Graphing page.

Graph Type

You can perform a transform on the incoming data to get different graph types that may provide insights into your sensor data. For more information on how to use these graph types, see the Control Panel Graphing page.

Interaction with Data Interval

Unlike most other Phidgets, setting a data interval on the HIN1001 affects its initial “wake up” time, instead of the overall data rate. After the first touch has been detected, the device will stream data as fast as possible (up to every 16ms, as data becomes available).

This means that if setting a data interval of 250ms, the first touch may need to be held up to 250ms to wake the device, after which subsequent touches on all channels will be detected much faster, until no touch is detected for a few seconds. Once the device has been left alone for a few seconds, it will resume its low-power state and wait for the next touch.

Recalibration

The capacitive touch sensors rely on checking capacitance against a threshold to detect when they are touched. As a result you need to keep a good baseline of the capacitance of the sensor's environment. The HIN1001 will recalibrate its baseline levels if it detects a constant touch for more than 50 seconds, in order to prevent getting stuck in a touched state. Similarly, it will recalibrate its baseline capacitance to adjust to falling capacitance (such as when it is moved away from a surface) in order to prevent getting stuck in a not-touched state. The latter adjustment happens as soon as the baseline is detected to have fallen.

Relative Change in Position
CapacitiveTouch CircularPositionChange.jpg

Since the touch wheel is circular, calculating the change in position of a finger over the wheel can be more involved than simply subtracting one position from another. In cases where the value crosses the zero point, a simple subtraction would indicate a large movement in the opposite direction. For example a movement from 0.9 to 0.1 would appear as a movement of -0.8, when a movement of +0.2 is much more likely. As such, a change in position should be calculated taking this into account. Here is an example of how to do the calculation in C:

static void CCONV
onTouchHandler(PhidgetCapacitiveTouchHandle ch, void *ctx, double touchValue) {

   double change = (touchValue - oldPos);
   static double oldPos;

   if (change > 0.5)
      change -= 1;
   else if (change < -0.5)
      change += 1;

   oldPos = touchValue;

   ...
}
