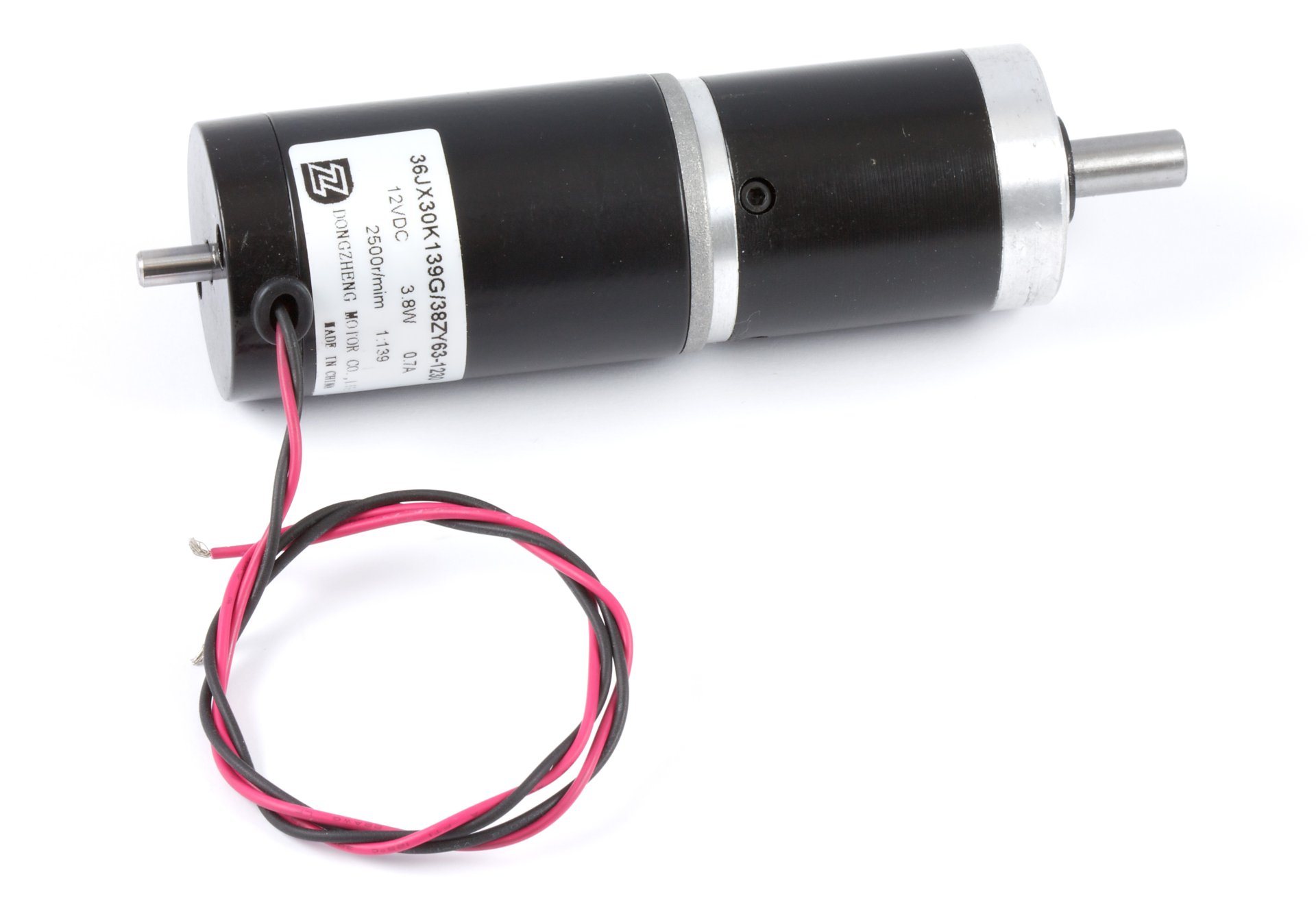

| 3268_0 - 12V/17.3Kg-cm/18RPM 139:1 DC Gear Motor |
Product Features
- High Torque, Low Speed
- Shaft Diameter: 8mm
- 139 184/1221 : 1 Gear Reduction
- Rated speed: 18RPM
- Rated Torque: 17.3 Kg-cm
Product Description
The 3268 is a 12 volt gear motor, generating 17.3 Kg-cm of torque at 18 RPM. Since this motor has a lower power output for its size, you can expect it to have a longer lifespan than other motors.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
Motor Controller and Connection
The 3268 DC motor connects to either of the following controllers:
Related Products
- 3268E - 12V/17.3Kg-cm/18RPM 139:1 DC Gear Motor w/ Encoder
- 3265 - 12V/0.5Kg-cm/670RPM 3.7:1 DC Gear Motor
- 3266 - 12V/1.9Kg-cm/175RPM 14:1 DC Gear Motor
- 3267 - 12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor
Resources
Warnings
|
The torque this motor produces when it stalls exceeds the rated strength of the gearbox. This means that stalling or very heavily loading this motor can cause serious damage to the gearbox. To avoid damage, avoid sudden loads or any load higher than the Maximum Strength of Gears spec. |
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 3.8 W |
| Maximum Speed at Rated Voltage | 18 RPM |
| Rated Torque | 17.3 kg·cm |
| Stall Torque | 128 kg·cm |
Electrical Properties
| Rated Voltage | 12 V DC |
| Rated Current | 650 mA |
| Stall Current | 2.4 A |
Physical Properties
| Shaft Diameter | 8 mm |
| Wire Length | 350 mm |
| Weight | 526 g |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 139 184⁄1221 : 1 |
| Number of Gear Trains | 3 |
| Maximum Strength of Gears | 61 kg·cm |
| Shaft Maximum Axial Load | 50 N |
| Shaft Maximum Radial Load | 35 N |
