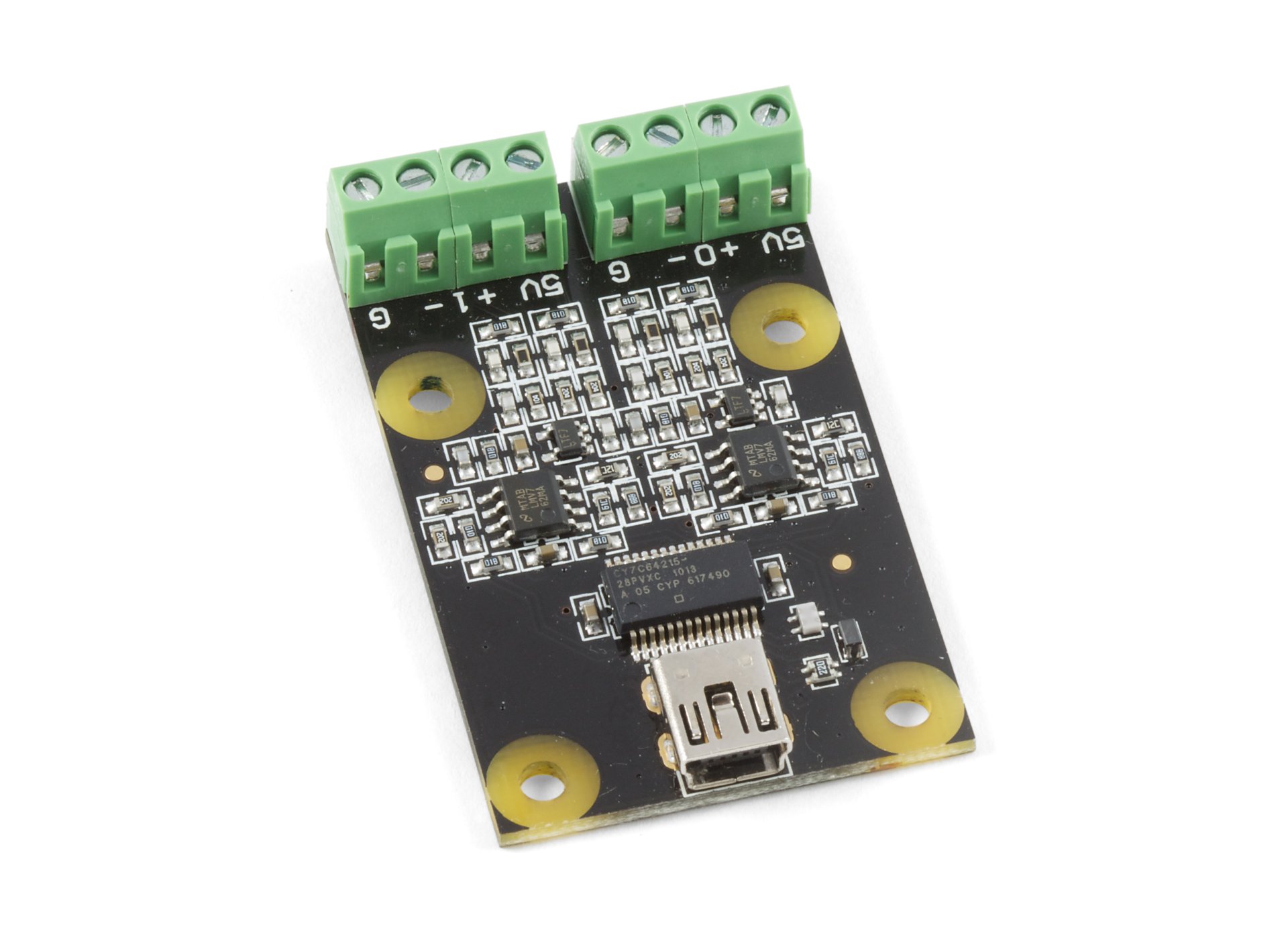

The 1054 - PhidgetFrequencyCounter is designed to count events from an analog signal over time and calculate a frequency from it. The product can count a logic level or signal centered around zero volts. Signals with a different ground can be counted, provided they are within the common mode range (+-10V).

The Frequency Counter can also power small devices, such as Hall Effect, flow rate sensors, tachometers, and other sensors.

The PhidgetFrequencyCounter contains two channels to sense two different inputs. Each channel has two different circuits to sense for logic level-frequencies or zero-centered frequencies. The measurable frequency is accurate to 0.25% up to 1MHz. The Frequency Counter may measure frequencies past 1 Mhz, but the input voltage specifications will not hold.

The PhidgetFrequencyCounter can measure frequencies down to ~ 0.01Hz. However the response time of these measurements is directly related to the frequency, thus it could take 1 or 2 periods(100-200s) to detect the input frequency.

In tough applications, you can use the 3060 – USB Isolator to increase your system stability by eliminating problems caused by ground "voltage" differences between USB Host and USB devices.

• 3060 – USB Isolator

You can protect your board by purchasing the 3813 - Acrylic Enclosure for the 1054.
