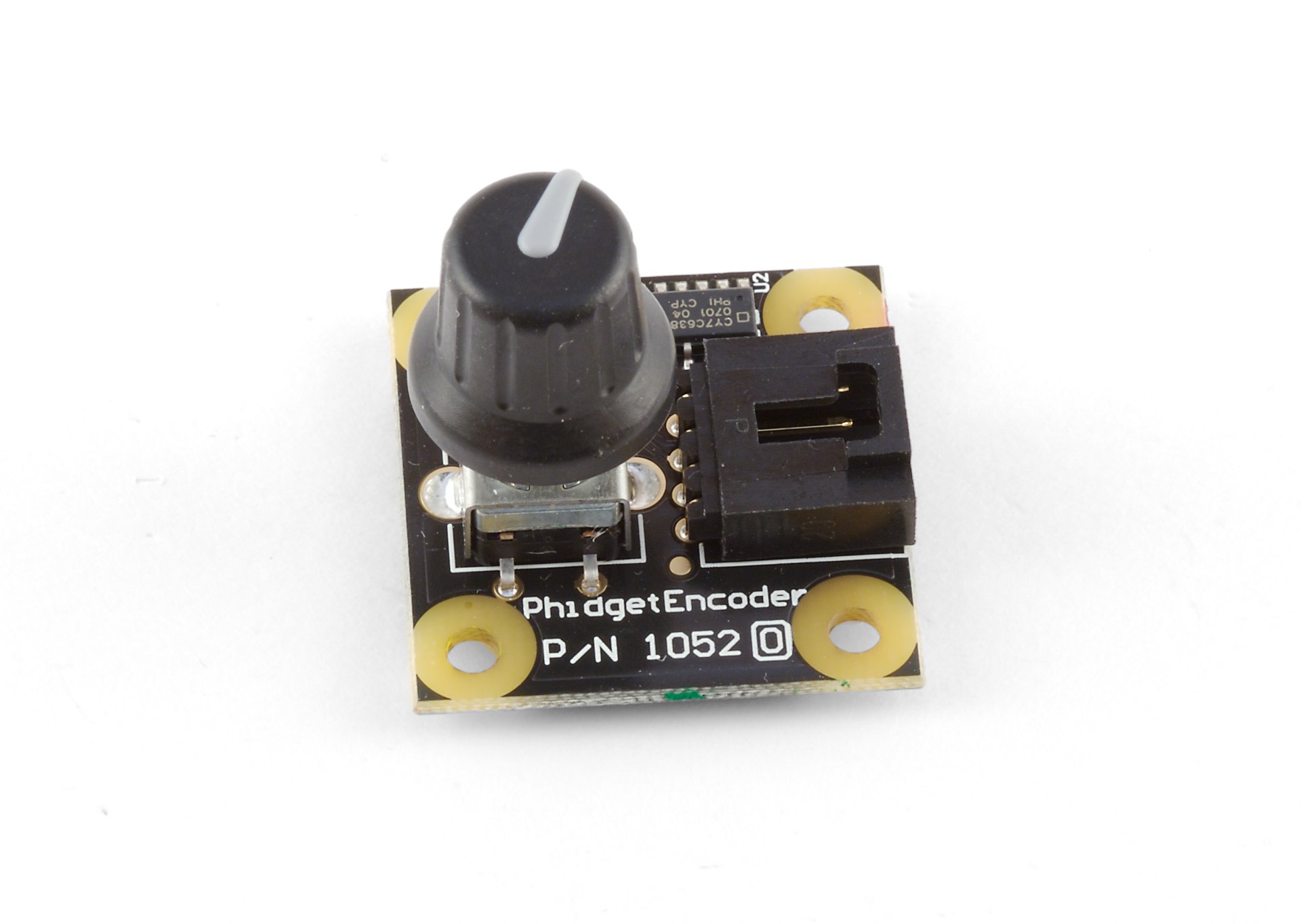

| 1052_0 - PhidgetEncoder |
Product Features
- Continuous rotation
- Returns 80 counts for 360 degrees of rotation
- Uses a two-bit mechanical encoder with a built-in momentary-action push-button switch
- Connects directly to a computer’s USB port
Product Description
The PhidgetEncoder is intended to be used as a human interface, not as a device to measure shaft speed of motors or pulleys. If you are looking for an encoder to measure shaft speed, have a look at the 1057 PhidgetEncoder HighSpeed.
The PhidgetEncoder uses a two-bit mechanical encoder with a built-in momentary-action pushbutton switch. It returns 80 counts for 360 degrees of rotation.
With it you can:
- Detect changes in incremental and absolute position
- Easily track these changes with respect to time.
Product Specifications
Electrical Properties
| Count Rate Max | 80 cycles/s |
| Current Consumption Max | 20 mA |
| USB Speed | Low Speed |
Physical Properties
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Comes packaged with
- A 3016 - 120cm Custom USB Cable
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
