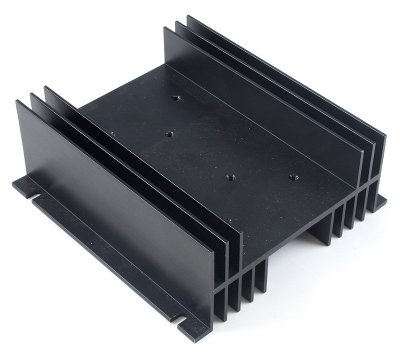

|3956_0 - Large Heatsink for SSR|
- Dissipates heat with a thermal resistance of 0.6°C/W
- Can be used to mount up to 2 "hockey puck" type SSRs
- Unlocks the full current-carrying capabilites of your SSR
Medium and high current (>5A) SSRs can generate a lot of heat during operation. Failure to manage the generation of heat by the SSR during switching may damage the SSR and lead to product failure. When using an SSR this problem of heat dissipation must be managed. It is very important to select an adequate heatsink if you plan on using your SSR at its maximum specifications. To assist with heat dissipation, a thermal pad (packaged with all "hockey puck" type SSRs we sell) should be used between the relay and the heatsink. For very high performance applications, air cooling may also be necessary.
- Mounting Screws (4)
