3954_0 - AC Solid State Relay - 120V 50A

Quantity	Price
1	$35.00
5	$33.60
10	$32.55
25	$31.50
100	$30.45

In Stock
Qty: 25+

Product Features

Connects to a Digital Output
Switches mains power AC loads
120 VAC Load
50A Current Rating
Connects to any device with a Digital Output.

Product Description

The 3954 AC Solid State Relay can be used to switch loads of up to 50A at 120VAC using the digital output from a Phidget I/O board. The Relay comes with an optional protective cover to protect people from touching the exposed high power wires, and a varistor to protect your SSR from harmful transients and surges. All wires connect to this relay by screw terminals. If you are switching a high power load or find the relay is getting hot, please consider using a heatsink. Heatsinks 3955 and 3956 are designed for use with this relay.

We've listed this SSR at 120V because the included MOV is only rated for 120V operation. If you decide that you do not need the MOV for surge protection, you can use this relay without the MOV at the manufacturer's specification of 240V.

Product Specifications

Electrical Properties

Relay Output Type	SCR
Isolation Method	Photoelectric
Dielectric Strength	2.5 kV AC
Control Voltage Min	3 V DC
Control Voltage Max	32 V DC
Load Voltage Max (AC)	120 V AC
Load Current Min	100 mA
Load Current Max (AC)	10 A
Load Current Max (With 3955 Heatsink)	20 A
Load Current Max (With 3956 Heatsink)	50 A
Load Surge Current	800 A
Turn-on Time Max	1 ms
Turn-off Time Max	11.6 ms

Physical Properties

Length	58 mm
Width	45 mm
Height	25 mm
Operating Temperature Min	-30 °C
Operating Temperature Max	80 °C

Other Properties

Manufacturer Part Number

HFS34/D-240A80PS-Y

Have a look at the Data Sheet for a complete set of specifications.

Warnings

When choosing a SSR, check the actual load current and the working ambient temperature. Refer to the characteristic curve in the Data Sheet and select the proper heatsink if required. For example, the 3954 SSR could be used to switch an 80A load, but only with a large heat sink and a fan providing at least 40 cubic feet per minute of airflow.
Use the heat transfer pad between the SSR and the heat sink. Failure to do so can cause overheating and could damage the relay.
Make sure that the SSR terminal screws are tight. If the screws are not tight, the SSR will get damaged by heat generated when the power is ON. Check the Data Sheet for recommended tightened torque.
When an SSR fails, it most often fails permanently closed - leaving your load powered, and possibly creating a fire or safety hazard.
Make sure that you use the relay within the product specifications.

Comes Packaged with

A Protective Relay Cover
A Heat Transfer Pad
An MOV (Metal Oxide Varistor)

Heat Sinks

Have a look at the relay's characteristic curve in the Data Sheet to decide if you need a heatsink. Without a heatsink, the maximum current that can be handled by this relay is 10A up to an ambient temperature of 40°C.

In order to be able to switch currents of up to 50A, you have to use the 3956 - Heatsink.

Connection

This relay connects to any device with a Digital Output.

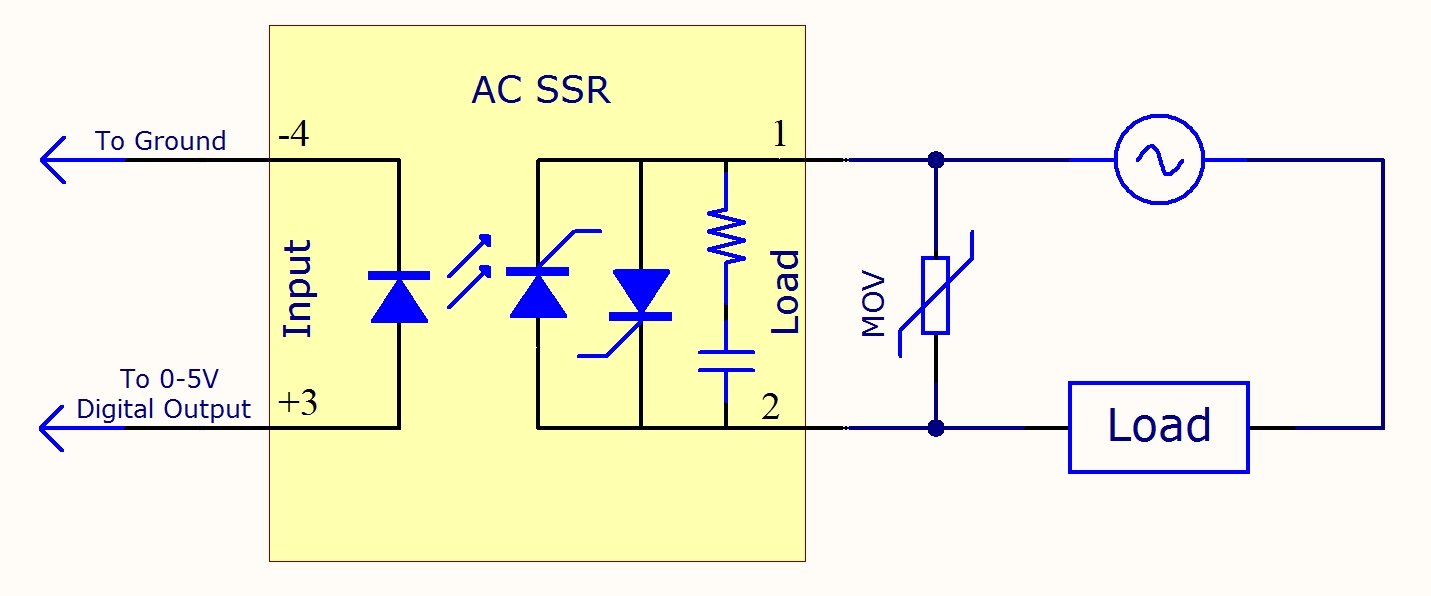

It should be connected as shown below.
