Products for USB Sensing and Control

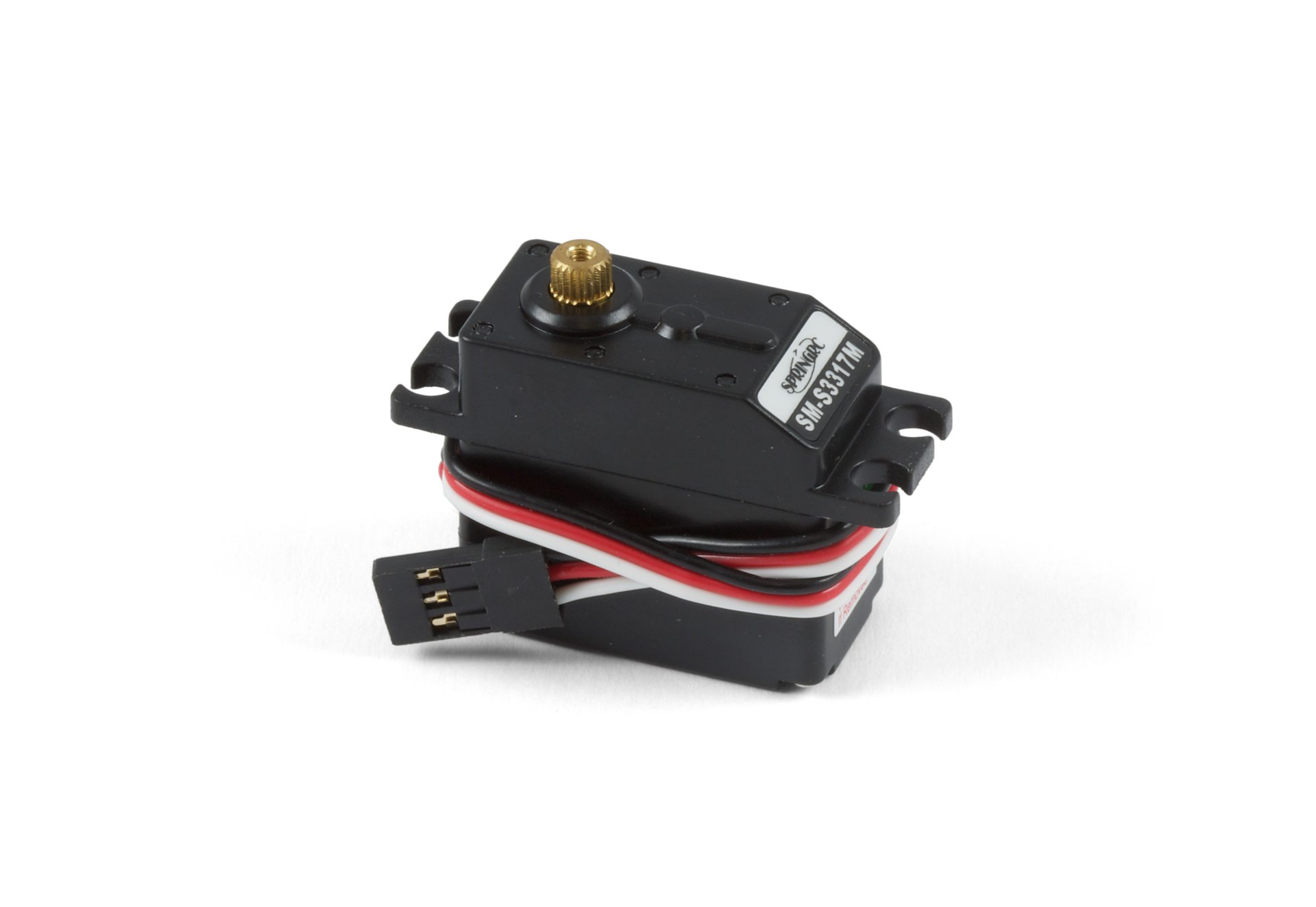

3207_0 - SpringRC Small Servo (SM-S3317M)
Quantity Price
1$12.50
5$12.00
10$11.65
25$11.25
100$10.90
In Stock
Qty: 247
ROHS

Product Features


This servo has 180° of travel and has good torque for its size.
Product Description

The 3207 is a nice small RC servo with all metal gears, double ball bearing and produces 2.7 kg-cm of torque at 4.8V.



Accessories Bag

3206Accessories


Mechanical Drawing

Mechanical
ABCDE
31.1mm16.5mm 28.6mm38.1mm8.1mm


Warning

warning RC servos are hobbyist remote control servos typically used in radio-controlled models, where they provide actuation for various mechanical systems such as the steering of a car, the flaps on a plane, or the rudder of a boat. These servos are not industrial grade and are not recommended for continuous heavy use.
Product Specifications

Motor Properties

Motor TypeLimited Rotation Servo
Range of Rotation180°
Maximum Speed at Rated Voltage375°/s
Rated Torque2.4 kg·cm

Physical Properties

Gear Train MaterialMetal
Bearing TypeDual Ball Bearing
Motor Length28.6 mm
Motor Width31.1 mm
Motor Depth16.5 mm
Wire Length180 mm
Weight27 g

Electrical Properties

Rated Voltage5 V DC
Rated Current (on 1061 controller)120 mA
Rated Current (on 1066 controller)130 mA
Stall Current (on 1061 controller)900 mA
Stall Current (on 1066 controller)420 mA


Motor Controllers

This Servo can be used with the following Phidget motor controllers:

The 1061 will produce a little more torque than the 1066.

When connecting the servo motor to the motor controller, make sure that the cable wires line up with the proper colors as marked on the conroller board.
