1134_0 - Switchable Voltage Divider
Quantity Price
1$15.00
5$14.40
10$13.95
25$13.50
100$13.05
In Stock
Qty: 390
ROHS

Product Features


This adapter lets you interface with all sorts of non-Phidgets resistance sensors, just select the resistance you want and away you go.
Product Description

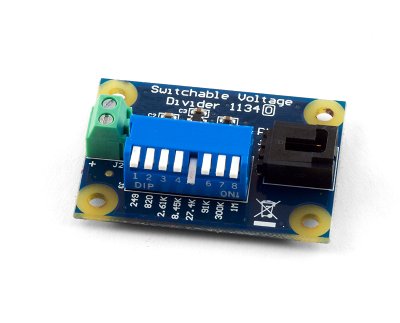

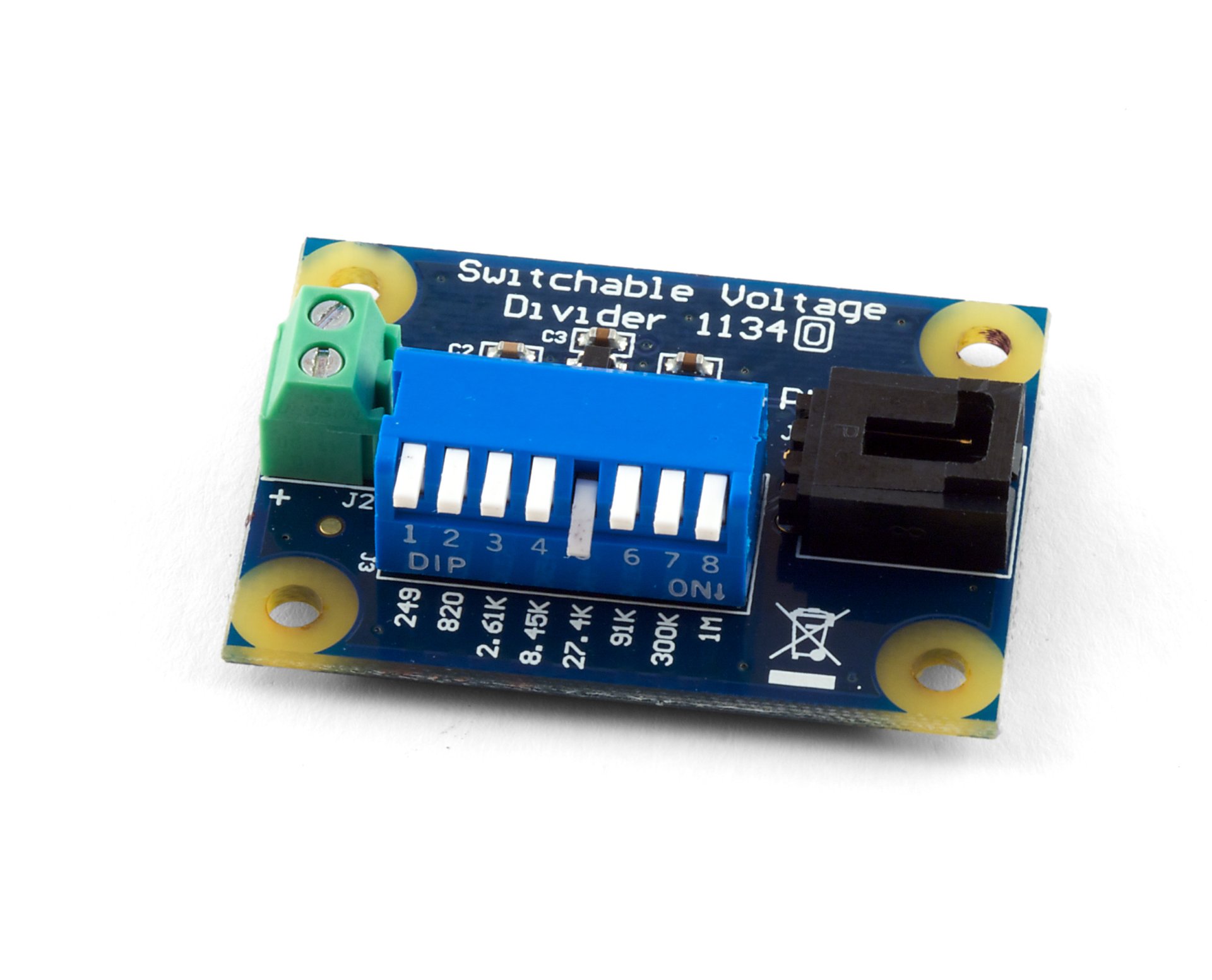

The 1134 - Switchable Voltage Divider is a voltage divider with switches. The switches can be used to control which resistors are used in the voltage divider. The resistance values (in Ohms) are 249, 820, 2.61K, 8.45K, 27.4K, 91K, 300K and 1M. It is possible to have multiple switches flipped, putting the corresponding resistors in parallel.

The 1134 Provides an interface to non-Phidgets variable resistance sensors such as: Force Sensing Resistors (FSR), light sensors, thermistors (heat sensors), and bend sensors.



Product Specifications

Sensor Properties

Sensor TypeResistance
Sensor Output TypeRatiometric
Resistance Min172 Ω
Resistance Max1 MΩ

Electrical Properties

Current Consumption Max30 mA
Supply Voltage Min3 V DC
Supply Voltage Max5.3 V DC
Optimal Measurement Resistance Min (@172Ω)17.2 Ω
Optimal Measurement Resistance Max (@172Ω)1.7 kΩ
Optimal Measurement Resistance Min (@1MΩ)100 kΩ
Optimal Measurement Resistance Max (@1MΩ)10 MΩ
Load Resistance Max50 MΩ
Load Resistance Resolution1 %

Physical Properties

Recommended Wire Size16 - 26 AWG
Operating Temperature Min-40 °C
Operating Temperature Max105 °C
