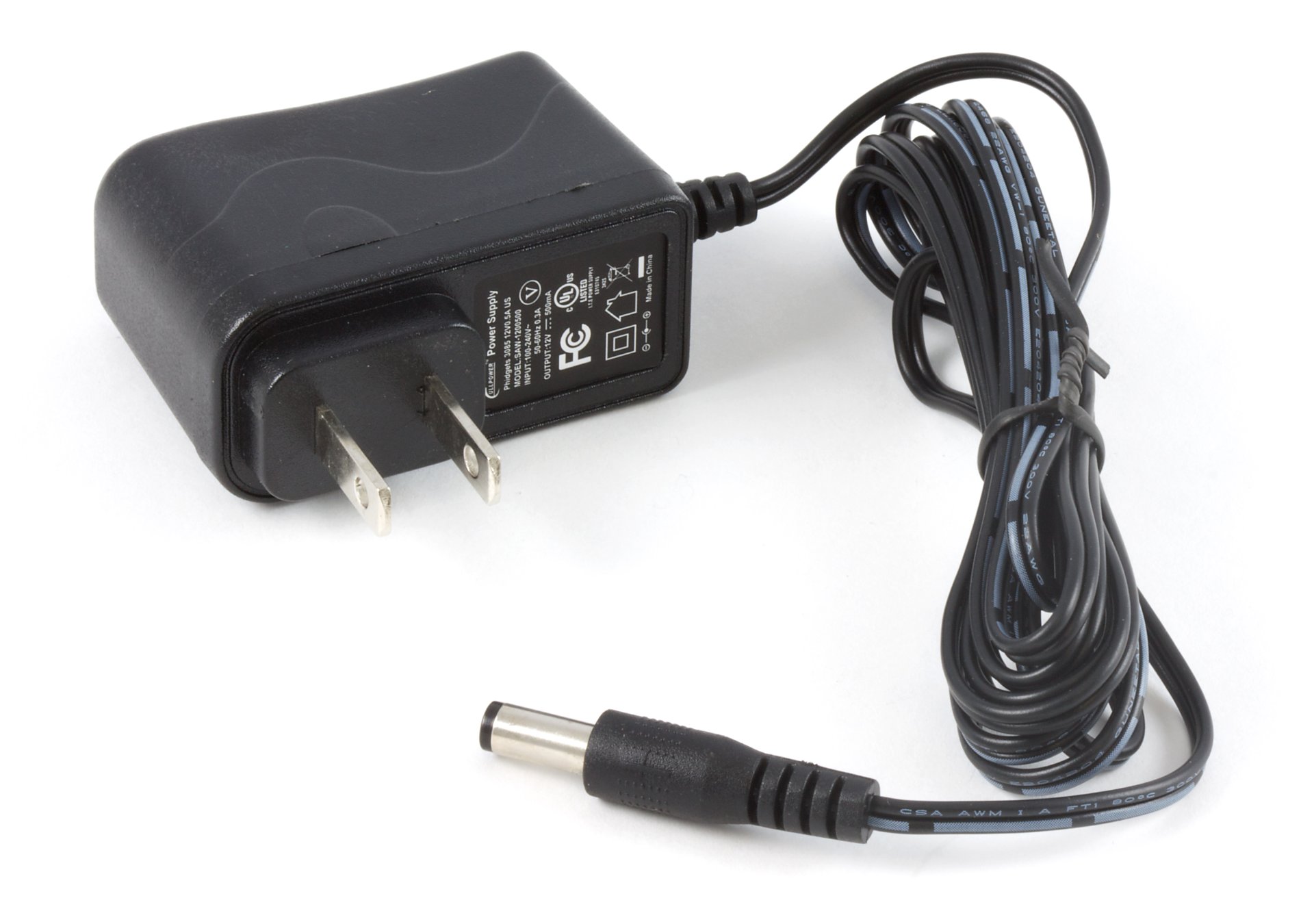

| 3085_0 - Power Supply 12VDC 0.5A - US |
Product Features
- Small, General Purpose Power Supply
- Low Current - 0.5 Amp
- North American Style Plug
- Center Positive Polarity
- Occupies a single slot on a power bar
Product Description
North American style plug.
The 3084 provides efficient power at 12VDC, 0.5 Amps, 6 Watts. It is protected against over-current.
It is a well priced, small power supply for projects that require a low-power external power supply.
Product Specifications
Electrical Properties
| Power Supply Voltage Min | 11.4 V DC |
| Power Supply Voltage Max | 12.6 V DC |
| Power Supply Current | 500 mA |
| Output Power | 6 W |
| AC Input Voltage Min | 100 V AC |
| AC Input Voltage Max | 240 V AC |
| AC Input Frequency Min | 50 Hz |
| AC Input Frequency Max | 60 Hz |
| Protection Circuitry | Over-Current, Over-Voltage, Over-Temperature, Short Circuit |
Physical Properties
| Wall Plug Style | North American |
| Power Jack Hole Diameter | 5.5 mm |
| Power Jack Pin Diameter | 2.1 mm |
| Power Jack Polarity | Center Positive |
| Operating Temperature Min | -20 °C |
| Operating Temperature Max | 40 °C |
Standards
- UL - Standard: UL60950
- FCC - Standard: FCC part 15
Recommended Use
This power supply can be used with all Phidgets that accept an external power supply, or for projects that need a power source.
If you are unsure about how much power your project demands, call us, or choose a larger power supply.
