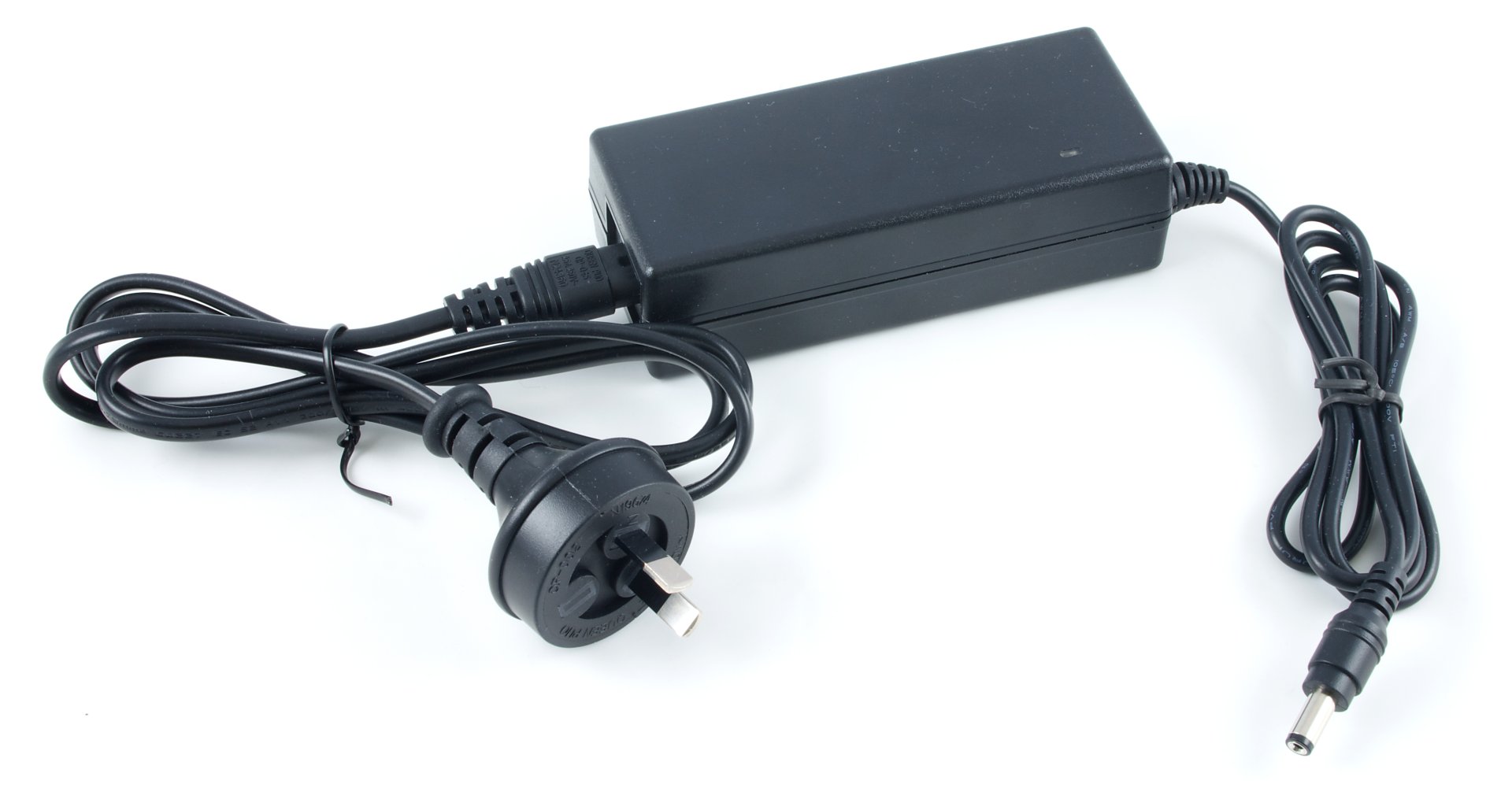

| 3080_0 - Power Supply 12VDC 5.0A - AU |
Product Features
- General Purpose Power Supply
- Power: 12 VDC, 5.0 Amp
- Removable Australian Style Wall Plug
- Center Positive Polarity
Product Description
Removable Australian style wall plug.
The 3080 provides efficient power at 12DC, 5.0 Amps, 60 Watts. It is protected against over-current, over-voltage, short-circuits and over-temperature.
This power supply can be used with Phidgets that accept an external power supply, or for projects that need a power source.
This is the largest power supply we offer and should be used , for example, with the stepper and dc motor controllers that require a larger amount of current and power to meet your project's motor speed and torque requirements.
If you are unsure about how much power your project demands, call us.
Standards
- CE - EN60950/EN55022
- FCC - FCC part 15
Resources
Product Specifications
Electrical Properties
| Power Supply Voltage Min | 11.4 V DC |
| Power Supply Voltage Max | 12.6 V DC |
| Power Supply Current | 5 A |
| Output Power | 60 W |
| AC Input Voltage Min | 100 V AC |
| AC Input Voltage Max | 240 V AC |
| AC Input Frequency Min | 50 Hz |
| AC Input Frequency Max | 60 Hz |
| Protection Circuitry | Over-Current, Over-Voltage, Over-Temperature, Short Circuit |
Physical Properties
| Wall Plug Style | Australian |
| Power Jack Hole Diameter | 5.5 mm |
| Power Jack Pin Diameter | 2.1 mm |
| Power Jack Polarity | Center Positive |
| Operating Temperature Min | -20 °C |
| Operating Temperature Max | 40 °C |
