| 3026_0 - LCD cable (1x16 connector) |
Product Features

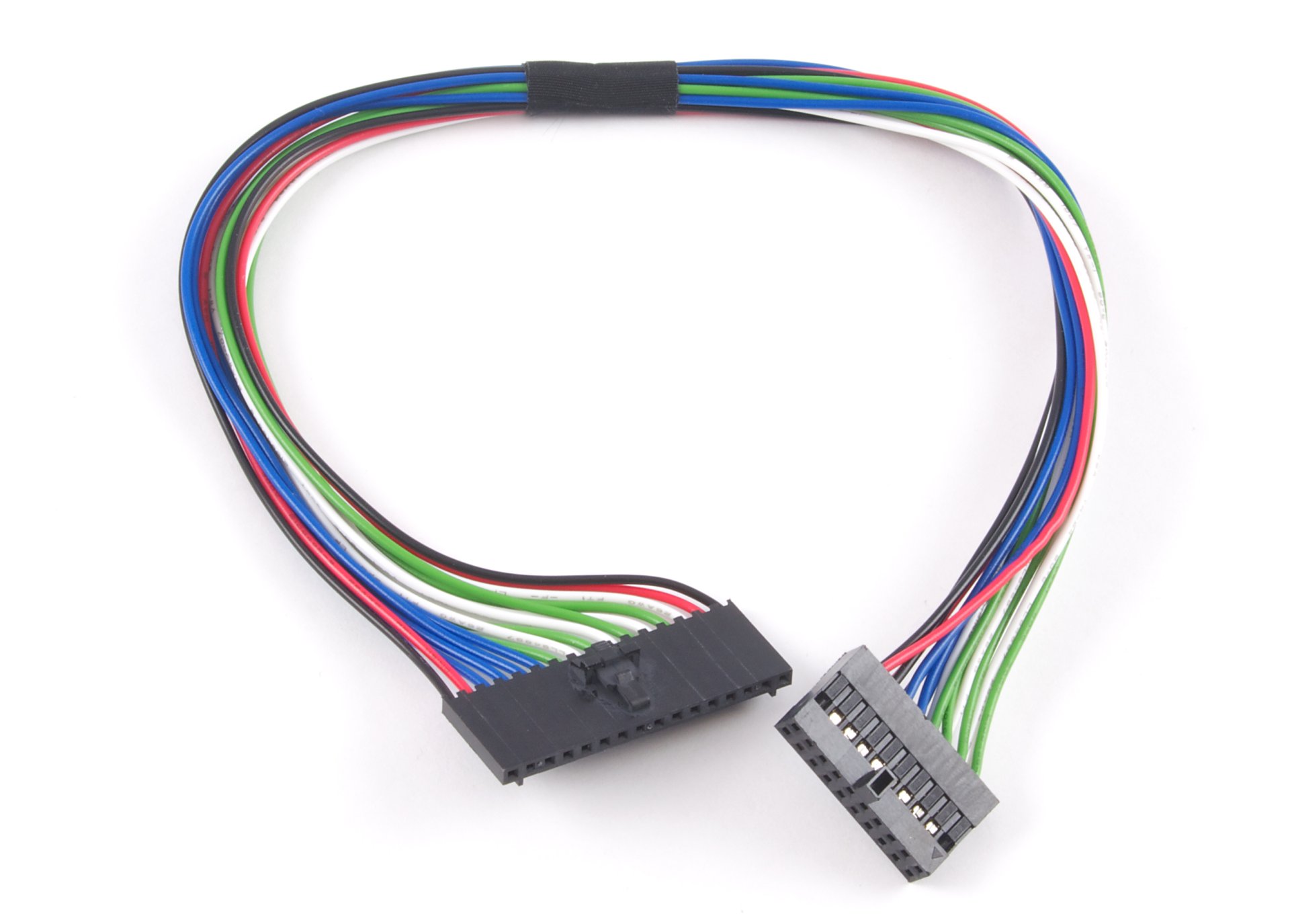

- LCD cable with 1x16 LCD connector
- 16-wire cable
- Wire Size: 26AWG
- Cable Length: 30cm
Product Description
This is the replacement cable for the following LCD Screens:
- 3651 – LCD Screen 2x20 - LCM2002D
- 3654 – LCD Screen 2x20 - LCM2002J
- 3653 – LCD Screen 2x40 - LCM4002A
The cable has a 1x16 connector for connecting to the LCD screen and a 2x10 connector for plugging into the 1204 – PhidgetTextLCD Adapter.
Product Specifications
Physical Properties
| Connector A | 2x10 Connector |
| Connector B | 1x16 Connector |
| Cable Length | 300 mm |
| Cable Gauge | 26 AWG |

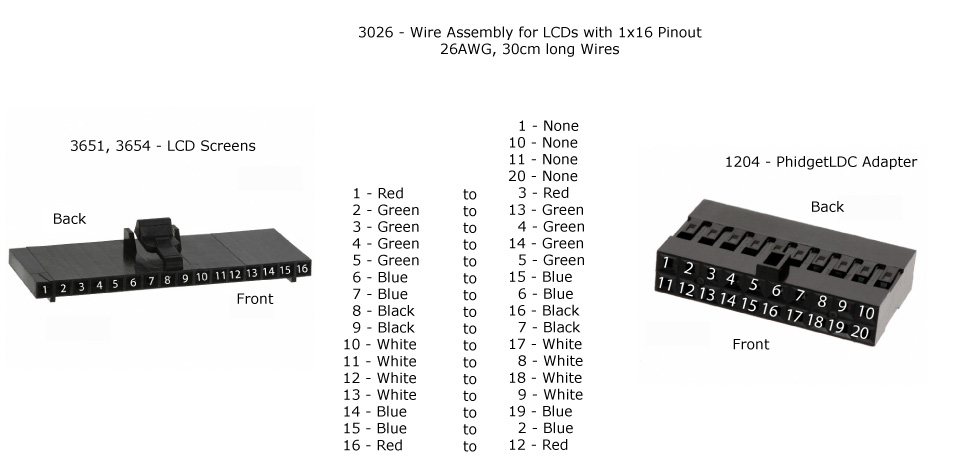

Wire Assembly
