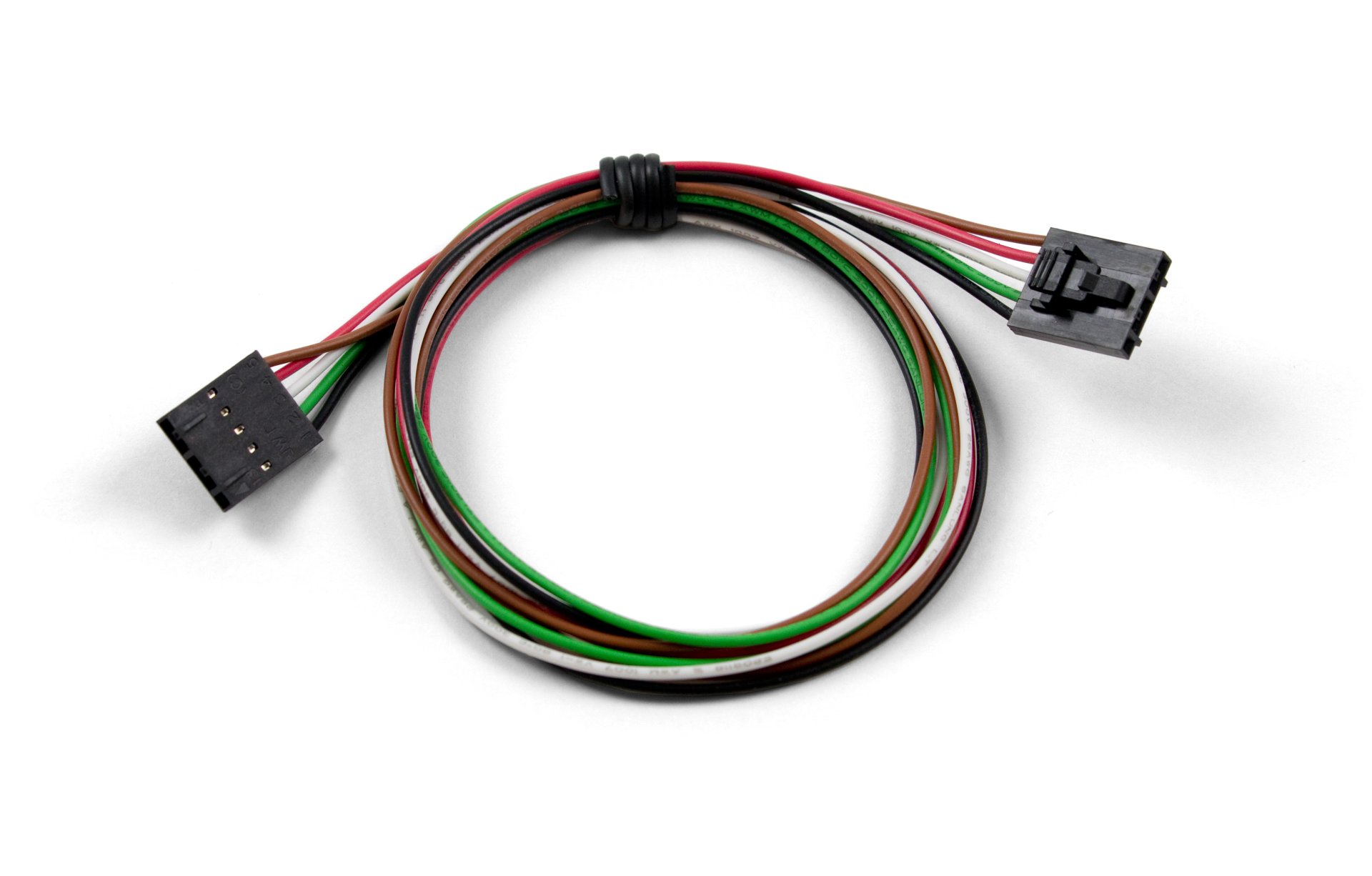

| 3019_0 - HighSpeed Encoder Cable 50cm |
Product Features
- Cable length: 50cm (20”)
- Used to connect the 1057 - PhidgetEncoder HighSpeed to common optical encoders.
Pin-Out
- Ground - Black
- Index (Optional) - Green
- A Channel - White
- +5V DC - Red
- B Channel - Brown
Connector used is a Molex 50-57-9405.
The index channel is used by some encoders to keep track of the number of full rotations the encoder has made. Encoder boards that don't support indexing can still use this cable to read the encoder.
Product Specifications
Physical Properties
| Connector A | Encoder 5-Wire |
| Connector B | Encoder 5-Wire |
| Cable Length | 500 mm |
| Cable Gauge | 26 AWG |
Connects to
- 1047 - PhidgetEncoder HighSpeed 4-Input
- 1057 - PhidgetEncoder HighSpeed
- Common encoders such as the 3530 - Optical Rotary Encoder
