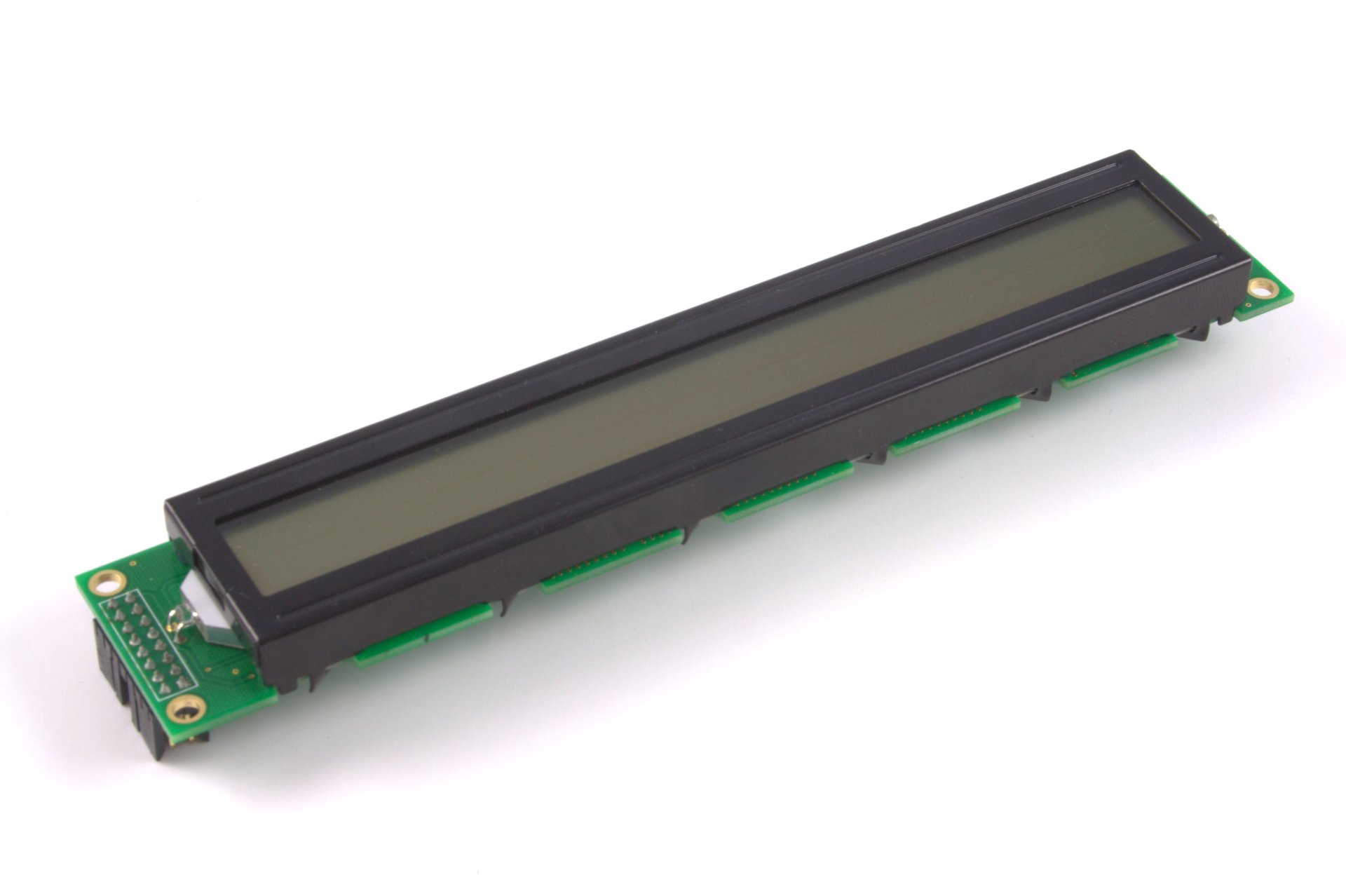

LCD Screen 2x40 (5.5mm Characters)

ID: 3653_0

A 2 line by 40 character backlit LCD display. Each character is 3.2x5.55mm.

$25.00

Quantity Available: 41

Qty Price
5 $24.00
10 $23.00

The 3653 is a 2 lines x 40 characters LCD module with a viewing area of 152.5 x 16.5mm. From software, the LCD contrast, and the LED backlight brightness can be adjusted.

Features

  • Displays two rows of 40 characters
  • Adjustable LCD contrast and backlight brightness
  • Connects to a Phidgets 1204 LCD adapter
  • 30cm cable included

Connection

This LCD connects to a TextLCD adapter using the included cable. See the Connection & Compatibility tab for details.

Guides

LCD Interfaces

FUNCTIONAL

This LCD screen can be controlled by one of our TextLCD adapter boards. The cable included with this screen will allow you to easily connect it to the following boards:

Product
Part Number Price
1204_0B
PhidgetTextLCD Adapter
$30.00

LCD Cables

This LCD screen comes with a customized cable that connects it to a Phidgets TextLCD interface. If you need a replacement cable for this screen, you can find one in the table below:

Product Physical Properties
Part Number Price Connector A Connector B Cable Length Cable Gauge
3014_0
LCD cable (2x8 connector)
$3.50 Amphenol Mini PV 65863 Amphenol Mini PV 65863 300 mm 26 AWG

Product Specifications

LCD Screen
Dots per Character 5 x 8
Character Width 3.2 mm
Number of Rows 2
Characters per Row 40
Backlight Current Consumption Max 300 mA
Board Properties
Controlled By LCD Adapter
Current Consumption Max 3 mA
Supply Voltage 5 V DC
Operating Temperature Min -20 °C
Operating Temperature Max 70 °C
Customs Information
Canadian HS Export Code 8531.20.00
American HTS Import Code 8531.20.00.20
Country of Origin CN (China)

Documents

Have a look at our LCD screens:

Product LCD Screen
Part Number Price Number of Rows Characters per Row Character Width
3652_0
LCD Screen 2x20 (12.7mm Characters)
$25.00 2 20 5.9 mm
3650_0
LCD Screen 2x20 (5.5mm Characters)
$18.00 2 20 3.2 mm
3653_0
LCD Screen 2x40 (5.5mm Characters)
$25.00 2 40 3.2 mm
3654_0
LCD Screen 4x20 (4.75mm Characters)
$20.00 4 20 3 mm
3655_0
LCD Screen 4x40 (4.89mm Characters)
$35.00 4 40 2.8 mm

If you want a different means of using LCD, here are our controllers and built-in screens:

Product Board Properties
Part Number Price Controlled By
LCD1100_1
Graphic LCD Phidget
$30.00 VINT
1203_2B
PhidgetTextLCD 20X2 : White : Integrated PhidgetInterfaceKit 8/8/8
$70.00 USB (Mini-USB)
1204_0B
PhidgetTextLCD Adapter
$30.00 USB (Mini-USB)
