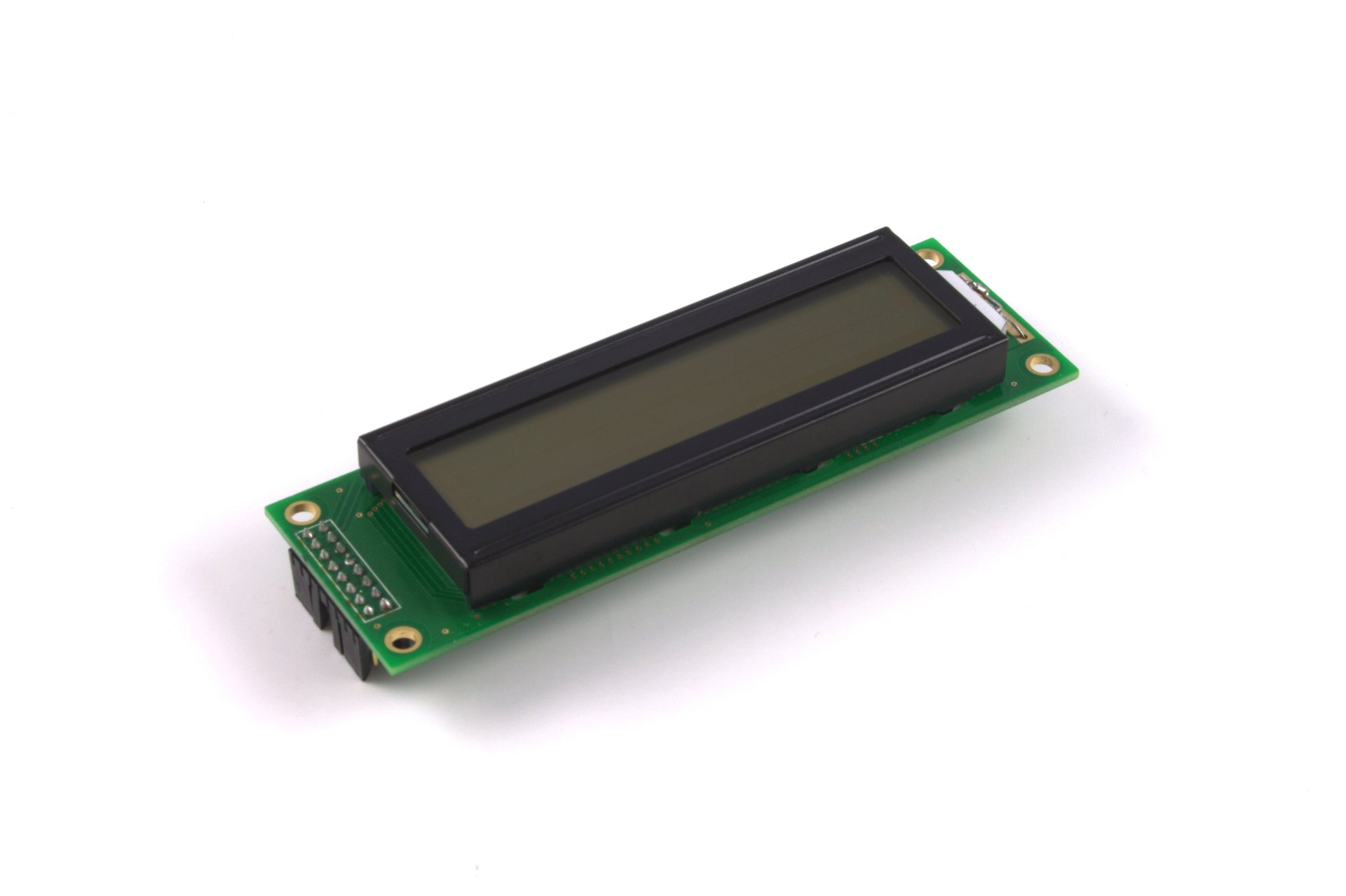

| 3650_0 - LCD Screen 2x20 - LCM2002D |
Product Features
- 2-line x 20 characters
- 5x8 dots with cursor
- Character Size: 3.2 x 5.55 mm
- Module Dimension: 116 x 37mm
- White LED Backlight from the side
Product Description
The 3650 is a 2 lines x 20 characters LCD module with a viewing area of 83 x 18.6mm. From software, the LCD contrast, and the LED backlight brightness can be adjusted.
You can also select between a "dash" cursor or a blinking "square" cursor and turn the cursor on or off.
Product Specifications
LCD Screen
| Dots per Character | 5 x 8 |
| Character Width | 3.2 mm |
| Number of Rows | 2 |
| Characters per Row | 20 |
| Backlight Current Consumption Max | 140 mA |
Board
| Current Consumption Max | 3 mA |
| Operating Temperature Min | -20 °C |
| Operating Temperature Max | 70 °C |
Comes Packaged with
Resources
Connections
This LCD connects to the 1204 - PhidgetTextLCD Adapter using the cable that came with your LCD screen.
