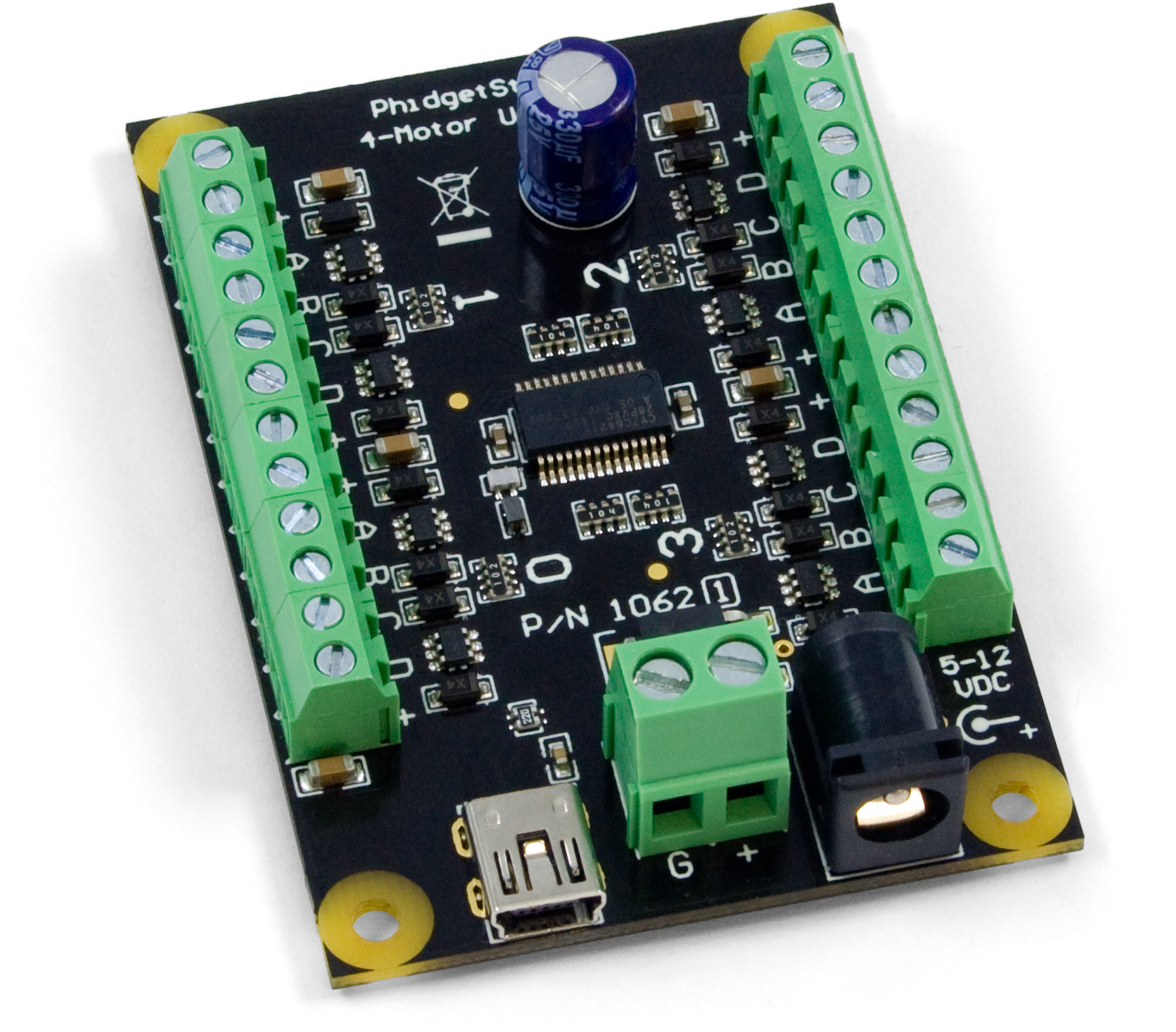

| 1062_1 - PhidgetStepper Unipolar 4-Motor |
Product Features
- The PhidgetStepper Unipolar 4-Motor allows you to control the position, velocity, and acceleration of up to 4 unipolar stepper motors.
- The 1062 can be used in applications that require precise positioning and continuous rotation, at low cost.
- Requires an external 5 to 12VDC power supply.
- Connects directly to a computer’s USB port.
The PhidgetStepper Unipolar allows you to control the position, velocity, and acceleration of up to 4 unipolar stepper motors. The 1062 can be used in applications that require precise positioning and continuous rotation, at low cost.
Note: Because most unipolar motors are resistive limitied, the 1062 does not support current control. If your motor requires current control, have a look at the 1063 - PhidgetStepper Bipolar 1-Motor or the 1067 - PhidgetStepper Bipolar HC.
If you need motors, we carry the following Unipolar Stepper Motors:
- PM42L-048-17 950g-cm Unipolar Stepper
- PM25S-048-15 140g-cm Unipolar Stepper
- PM20L-20-14 50g-cm Unipolar Stepper
If you want to control larger industrial stepper motors, or if you need very precise positioning or a lot of torque, have a look at the 1063 – PhidgetStepper Bipolar Controller.
- 3024 – Power Supply 12VDC 2.0A (North American style plug)
- 3023 – Power Supply 12VDC 2.0A (European style plug)
- 3025 – Power Supply 12VDC 2.0A (UK style plug)
- 3022 – Power Supply 12VDC 2.0A (Australian style plug)
- A 3018_0 - Mini-USB Cable 180cm 24AWG
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
- User Guide
- Stepper Motor and Controller Primer
- Motor Selection Guide
- Mechanical Drawings
- Download 3D Step File
- Programming Resources
|
Make sure the power supply is unplugged before attaching or removing wires from the terminal blocks. Failure to do so could cause permanent damage to the PhidgetStepper board. |
Controller Properties
| Motor Type | Unipolar Stepper |
| Number of Motor Ports | 4 |
| Motor Position Resolution | 1⁄2 Step (40-Bit Signed) |
| Position Max | ± 5.49756E+11 ½ steps |
| Stepper Velocity Resolution | 0.75 ½ steps/sec |
| Stepper Velocity Max | 383.3 ½ steps/sec |
| Stepper Acceleration Resolution | 140.6 ½ steps/sec² |
| Stepper Acceleration Min | 140.6 ½ steps/sec² |
| Stepper Acceleration Max | 8895.4 ½ steps/sec² |
Electrical Properties
| Available Current per Coil Max | 1 A |
| Supply Voltage Min | 5 V DC |
| Supply Voltage Max | 12 V DC |
| Current Consumption Min | 23 mA |
| Current Consumption Max | 100 mA |
| USB Speed | Full Speed |
Physical Properties
| Power Jack Hole Diameter | 5.5 mm |
| Power Jack Pin Diameter | 2.1 mm |
| Power Jack Polarity | Center Positive |
| Recommended Wire Size (Motor Terminal) | 16 - 26 AWG |
| Recommended Wire Size (Power Terminal) | 12 - 24 AWG |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Note: Current from USB supply is not available for motors.
We do not carry enclosures for the 1062_1, because motor controllers are prone to overheating when kept in enclosed spaces for extended periods of time with no airflow.
