Products for USB Sensing and Control
1112_1 - Slider 60
Quantity Price
1$11.00
5$10.60
10$10.25
25$9.90
100$9.60
In Stock
Qty: 1000+
ROHS

Product Features


Ideal for user input, this slider has 60mm of travel and connects to an analog input.
Product Description

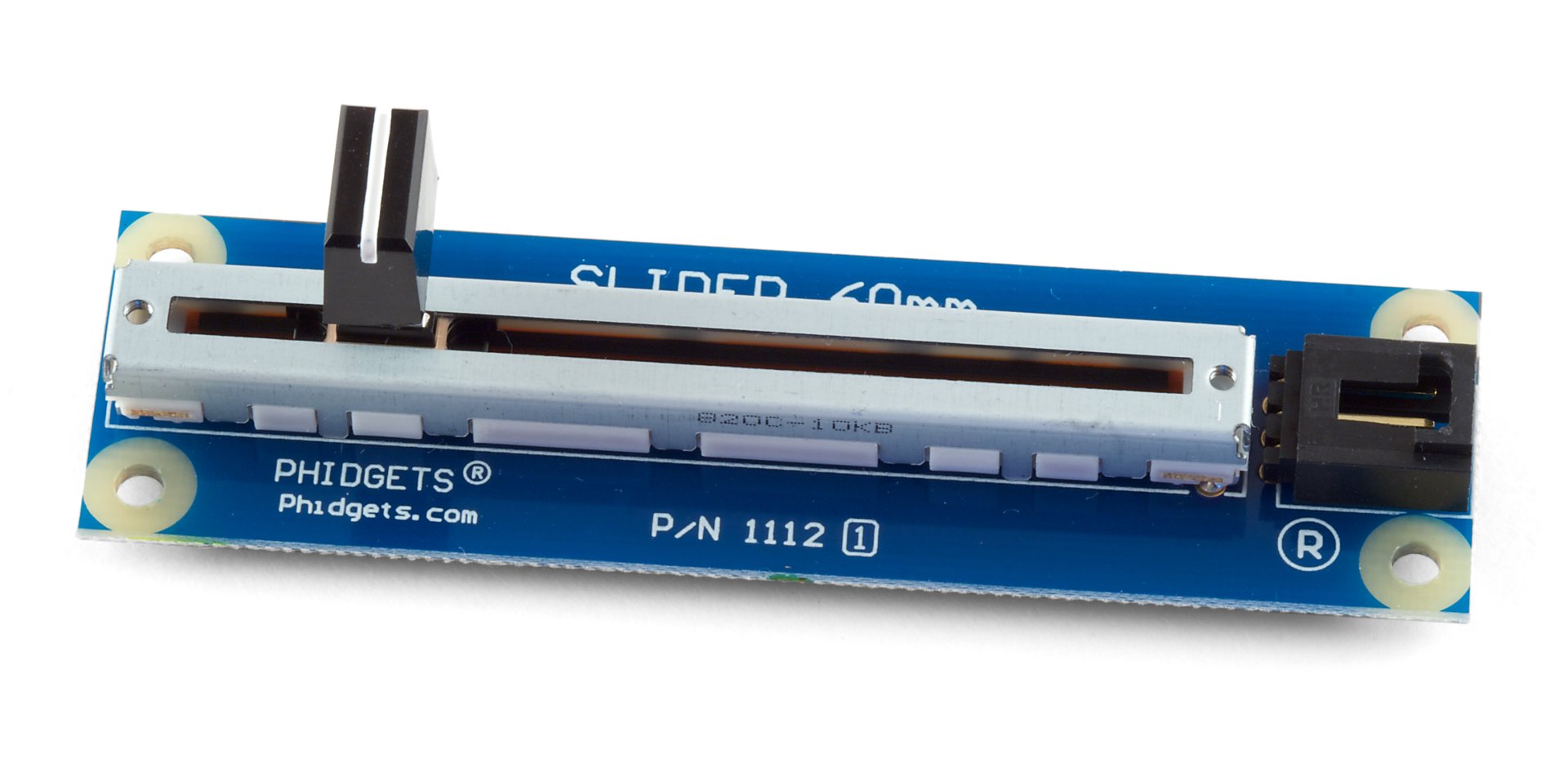

The Slider 60 is a linear potentiometer - the resistance varies linearly with the position of the slider. SensorValue varies from 0 to1000 over the 60mm travel of the slider. The maximum resistance is 10K ohms.

The 1112 can be used as human input or as position feedback in a system.



Product Specifications

Sensor Properties

Sensor TypeInput (Slider)
Sensor Output TypeRatiometric

Electrical Properties

Current Consumption Max150 μA
Output Impedance10 kΩ

Physical Properties

Slider Travel60 mm
Operating Temperature Min-25 °C
Operating Temperature Max70 °C


Code Samples For This Product

View Live DownloadC# (Windows)
