Getting Started

Welcome to the 3054 user guide! In order to get started, make sure you have the following hardware on hand:

Next, you will need to connect the pieces:

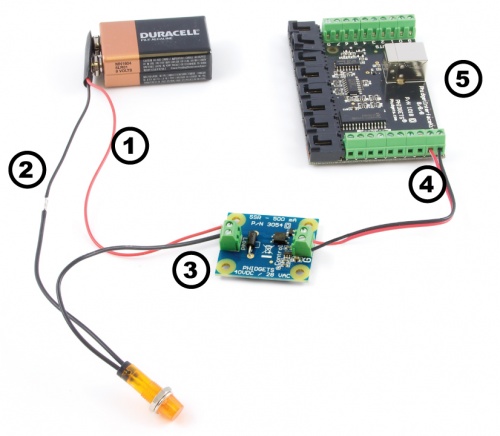

3054 0 Connecting The Hardware.jpg
  1. Connect the circuit to the load terminals of the 3054.
  2. Connect the 3054 to the 1018 by connecting a wire from the terminal block marked with a + to a Digital Output and another wire from the terminal block marked with a G to any ground terminal on the 1018.
  3. Connect the 1018 to the computer using the USB cable.


Now that you have everything together, let's start using the 3054!

Using the 3054

Phidget Control Panel

In order to demonstrate the functionality of the 3054, we will connect it to the 1018, and then run an example using the Phidget Control Panel on a Windows machine.


The Phidget Control Panel is available for use on both macOS and Windows machines. If you would like to follow along, first take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the 3054.

First Look

After plugging in the 3054 into the 1018, and the 1018 into your computer, open the Phidget Control Panel. You will see something like this:

1018 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Digital Output

Double-click on a Digital Output object in order to run the example:

1010 1018 1019DigitalOutput OnOff Example.jpg


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • Toggle the state of the digital output by pressing the button. This will change the relay state.


Technical Details

Solid State Relays

Solid State Relays, or SSRs, are devices designed to operate like standard relays but without mechanical motion. Built instead out of silicon transistors, SSRs allow currents and voltages to be switched by simple digital signals from a microprocessor or any other device that can supply the small amount of current needed to activate the SSR’s internal switching mechanism. For more information on solid state relays, refer to the SSR Primer.

Protection Devices

The 3054 is safe to use with sensitive control devices like microprocessors, and will not damage a Phidget or your PC. Optoisolation between the control inputs and outputs of the SSR in the form of a GaAs LED paired with a set of optically-controlled MOSFETs provides protection from output to input. An on-board 47V bidirectional transorb across the relay output protects the board from static electricity and surges from inductive loads.

Using the SSR Board

Using the SSR Relay Board in your application is typically done according to the diagram below, though there are other implementations for it as well.

3052 0 Use Diagram.jpg
