Getting Started

Welcome to the LCD1100 user guide! In order to get started, make sure you have the following hardware on hand:

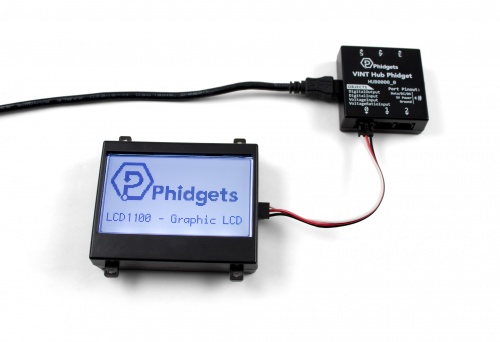

Next, you will need to connect the pieces:
LCD1100 Functional.jpeg
  1. Connect the LCD1100 to the VINT Hub using the Phidget cable.
  2. Connect the VINT Hub to your computer with a USB cable.

Using the LCD1000

Phidget Control Panel

In order to demonstrate the functionality of the LCD1100, the Phidget Control Panel running on a Windows machine will be used.

The Phidget Control Panel is available for use on both macOS and Windows machines.


To open the Phidget Control Panel on Windows, find the Ph.jpg icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel

Windows PhidgetTaskbar.PNG


To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the Ph.jpg icon to bring up the Phidget Control Panel.

For more information, take a look at the getting started guide for your operating system:

Linux users can follow the getting started with Linux guide and continue reading here for more information about the LCD1100.

First Look

After plugging the LCD1100 into your computer and opening the Phidget Control Panel, you will see something like this:

LCD1100 Panel.jpg

The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.

The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Graphic LCD

GraphicLCD Example.jpg

When you double click on a Graphic LCD object, a window like the one pictured will open.

  • At the top of the window, information about your device and the properties of this particular channel will be listed.
  • In the middle, brightness and contrast of the LCD screen can be adjusted.
  • At the bottom, there are a number of buttons to demonstrate the functionality of the graphics LCD:

  • Basic Example: Write some text, lines, boxes and a bitmap to the screen.
  • SaveFrameBuffer: Save the current screen to memory.
  • RecallFrameBuffer: Load the saved screen from memory and print it to the screen.
  • Async Example: Prints a bitmap to the screen asynchronously (can occur while other draw functions are still running).
  • Sleep/Unsleep: Toggles sleep mode, where the Phidget is still attached but in a minimal power consumption state.
  • Clear Screen: Erases the screen.

Finding The Addressing Information

Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.

The locate Phidget button is found in the device information box

In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.

All the information you need to address your Phidget

Using Your Own Program

You are now ready to start writing your own code for the device. The best way to do that is to start from our Code Samples.

Select your programming language of choice from the drop-down list to get an example for your device. You can use the options provided to further customize the example to best suit your needs.

Code Sample Choose Language.png

Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Programming Languages page.

Technical Section

Custom Characters


Bitmaps define images to be drawn on the screen of the Graphic LCD display. Bitmaps on the Graphic LCD display are made up of pixels arranged in a grid with a size defined when the bitmap is drawn.

You can create a bitmap by defining a byte array of ones and zeroes. Ones are colored in, and zeroes are empty. If you put a line break after each row, it'll be easy to edit the bitmap.

In C#, this may look something like this:

Byte[] heart = 	[0,0,0,0,0,

gLCD.WriteBitmap(0, 0, 5, 8, heart);

Custom Characters

Custom characters are images associated with given unicode characters. A custom character can be any arrangement of pixels within the space allotted for a single character. Single characters are made up of pixels arranged in a grid with a size defined by setFontSize().

As with regular bitmaps for the Graphic LCD display, you can create a character bitmap by defining a byte array of ones and zeroes. Ones are colored in, and zeroes are empty. If you put a line break after each row, it'll be easy to edit the bitmap.

In C#, this may look something like this:

Byte[] heart = 	[0,0,0,0,0,

gLCD.SetFontSize(LCDFont.User2, 5, 8);

Once stored, characters can be recalled into a text string by using the unicode value for the location (in this example, "\x6"). For example, in C#:

gLCD.WriteText(LCDFont.Dimensions_5x8, 0, 0,"I \x6 Phidgets!");

Custom characters on the LCD1100 are stored as images on the frame buffer for their font. FONT_User1 is stored on frame buffer 1 and FONT_User2 is on frame buffer 2.

These characters occupy the same space as drawings on their framebuffer, and will be displayed onscreen if their framebuffer is flushed. They can also be overwritten by using drawing funcitons on their framebuffer, so it is recommended to only use a given framebuffer either for drawing or storing fonts, but not both.

We recommend using FONT_User2 (frame buffer 2) to store custom fonts, as it can be saved for later use.

In order to use the custom fonts, you must first define their size with setFontSize(). Once the font size is set, custom characters will be placed on the font's frame buffer at a location corresponding to the character number provided.

Characters for each font are stored in rows ordered left-to-right, top-to-bottom. Rows are filled with as many characters as will completely fit across the width of the screen. There are as many rows as will fit on the screen vertically.

On a screen 128 pixels wide by 64 pixels high, if your font is 10 pixels wide by 20 high, you will have 3 rows of 12 characters. This allows for a maximum of 36 characters of that size.

A demonstration of how many 10x20px characters can fit on the screen.

To quickly determine how many characters can be in your custom font, you can call getMaxCharacters() in your code.

Custom character indexing starts with character 0x01 and can be any character between 0x01 and the maximum number of characters that fit on screen.

To determine if an ascii character can be used in a given custom font, you can look at its corresponding ascii value on an ascii table to determine if it is within the limit determined above.
