1130 User Guide: Difference between revisions

From Phidgets Support
No edit summary
No edit summary
Line 1: Line 1:
[[Category:UserGuide]]
[[Category:UserGuide]]
==Getting Started==
{{UgSensorIntro|1130|IR Distance Adapter|Voltage Ratio Input port}}
*[{{SERVER}}/?view=comparetable&rel=Probes compatible pH/ORP probe]


===Required Hardware===


* A [{{SERVER}}/products.php?product_id=1130 1130 pH/ORP Adapter Phidget]
Next, you will need to connect the pieces:
* An InterfaceKit or Hub to read the adapter
* A Phidget cable
* A USB cable
* A computer
* A compatible pH/ORP electrode

===Connecting the Pieces===
[[Image:1130_0_Connecting_The_Hardware.jpg|400px|right|link=]]
[[Image:1130_0_Connecting_The_Hardware.jpg|400px|right|link=]]
# Connect the pH/ORP Adapter to the InterfaceKit or Hub with the Phidget cable.
# Connect the 1130 to the 1018 with the Phidget cable.
# Connect the pH/ORP probe to the adapter.
# Connect the pH/ORP probe to the 1130.
# Use the DIP switch to select pH or ORP to correspond to the type of electrode you're using.
# Use the DIP switch to select pH or ORP to correspond to the type of electrode you're using.
# Connect the InterfaceKit or Hub to your computer with the USB cable.
# Connect the 1018 to your computer with the USB cable.


<br clear="all">
<br clear="all">
==Testing Using Windows==
{{UGIntroDone|1130}}

==Using the 1130==
{{UGcontrolpanelSensor|1130|1018}}

{{UGSensorVoltageRatioInput|1130|pH/ORP}}


{{UgSensor}}


==Technical Details==
==Technical Details==
===Measuring the pH===
===Measuring the pH===
To determine the pH of a solution, make sure the DIP switch on the board is flipped to the pH side. Given the voltage from the sensor, the following formula can be applied:
{{UGSensorFormula|pH}} To determine the pH of a solution, make sure the DIP switch on the board is flipped to the pH side. Given the voltage from the sensor, the following formula can be applied:




Line 32: Line 31:




This formula assumes that the solution is at 25 degrees Celsius.  Depending on the temperature of the solution and on the actual pH level, the output voltage can change dramatically. To incorporate temperature (in degrees Celsius) for added accuracy, the following formula can be used:
This formula(and the Phidget library ''Sensor Value'' formula) assumes that the solution is at 25°C.  Depending on the temperature of the solution and on the actual pH level, the output voltage can change dramatically. To incorporate temperature (in °C) for added accuracy, the following formula can be used:




Line 39: Line 38:
</math>
</math>


<br clear="all">
The following example is to give an idea of how the temperature affects the output voltage:
{|class ="wikitable" style="text-align: center;width: 50%;margin:auto"
|style="background:#f0f0f0;"|'''Temperature (°C)'''
|style="background:#f0f0f0;"|'''pH'''
|style="background:#f0f0f0;"|'''Voltage (V)'''
|-
|0
|2
|1.21
|-
|25
|2
|1.095
|-
|100
|2
|0.74
|-
|style="background:#f0f0f0;" colspan="3" |
|-
|0
|8
|2.76
|-
|25
|8
|2.78
|-
|100
|8
|2.85
|}


The following example is to give an idea of how the temperature affects the output voltage.  A solution with a pH of 2 at a temperature of 25 degrees Celsius yields a voltage of 1.095V. At 100 degrees Celsius, the voltage decreases to 0.74V, and at 0 degrees celsius, the voltage reports 1.21V. A solution with a pH of 8 with a temperature of 0, 25 and 100 degrees Celsius gives a voltage of 2.76V, 2.78V and 2.85V, respectively.  It can be seen that the temperature has a greater affect on solutions that have a pH further away from the reference pH of 7. Additionally, temperature affects the impedance of the glass electrode, and can result in increased errors if not properly calibrated. If you want to monitor the temperature of the solution, you can use a thermocouple. You’ll need to add some sort of protective shielding  to the thermocouple if you’re using acidic or basic solutions, though. Check out our thermocouple interfaces for more information.
As shown above, temperature has a greater impact on solutions that have a pH further away from the reference pH of 7. Temperature also affects the impedance of the glass electrode, and can result in increased errors if not properly calibrated. If you want to monitor the temperature of the solution, you can use a thermocouple. You'll need to add some sort of protective shielding  to the thermocouple if you’re using acidic or basic solutions, though. Check out our [{{SERVER}}/?view=comparetable&rel=Thermocouple%20Interfaces thermocouple interfaces] for more information.


===Measuring Oxidation/Reduction Potential (ORP)===
===Measuring Oxidation/Reduction Potential (ORP)===
To determine the ORP of a solution, make sure the DIP switch on the board is flipped to the ORP side.  Given the voltage from the sensor, the following formula can be applied:
{{UGSensorFormula|ORP}} To determine the ORP of a solution, make sure the DIP switch on the board is flipped to the ORP side.  Given the voltage from the sensor, the following formula can be applied:




Line 54: Line 86:


===Words of Caution===
===Words of Caution===
'''The pH Adapter Board should be used to measure solutions that are 'electrically quiet'.'''
The 1130 should be used to measure solutions that are 'electrically quiet'. Measuring pH in electrically noisy environments such as tanks with mixing pumps, and even other measuring devices is not recommended.
Measuring pH in electrically noisy environments such as tanks with mixing pumps, and even other measuring devices is not recommended.


===Choosing Electrodes===
===Choosing Electrodes===
Review the data sheet for the electrode you have selected for your application to ensure that it complies with the device specifications of the pH Adapter Board. The important specification is the output voltage of the electrode. Many electrodes will work but it is important to verify compliance before connecting an electrode to the Adapter Board. In fact, any type of sensor that uses a BNC connector and complies with the voltage range of the 1130 should work. We have reviewed the following electrodes, and found that they can be used with the pH Adapter Board.  This is by no means a comprehensive list, but can be used as a comparison with other electrodes if necessary.
Review the data sheet for the electrode you have selected for your application to ensure that it complies with the device specifications of the 1130. The important specification is the output voltage of the electrode. Many electrodes will work but it is important to verify compliance before connecting an electrode to the 1130. In fact, any type of sensor that uses a BNC connector and complies with the voltage range of the 1130 should work. We have reviewed the following electrodes, and found that they can be used with the pH Adapter Board.  This is by no means a comprehensive list, but can be used as a comparison with other electrodes if necessary.


{| border = 1
{|class ="wikitable" style="text-align: center;margin:auto"
| align="center" style="background:#f0f0f0;"|'''Manufacturer'''
|style="background:#f0f0f0;"|'''Manufacturer'''
| align="center" style="background:#f0f0f0;"|'''Web Page'''
|style="background:#f0f0f0;"|'''Part Number'''
| align="center" style="background:#f0f0f0;"|'''Part Number'''
|-
|-
| Omega||www.omega.com||PHE13XX, PHE14XX, ORE1311, ORE1411
| [https://www.omega.com Omega] || PHE13XX, PHE14XX, ORE1311, ORE1411
|-
|-
| Cole-Parmer||www.coleparmer.com||EW-59001, EW27003
| [https://www.coleparmer.com Cole-Parmer] || EW-59001, EW27003
|-
|-
| Mettler-Toledo||www.mt.com||InLab (BNC) Series
| [https://www.mt.com Mettler-Toledo] || InLab (BNC) Series
|}
|}


{{UGasens}}
{{UGasens}}

Revision as of 21:05, 16 June 2017

Getting Started

Welcome to the 1130 user guide! In order to get started, make sure you have the following hardware on hand:


Next, you will need to connect the pieces:

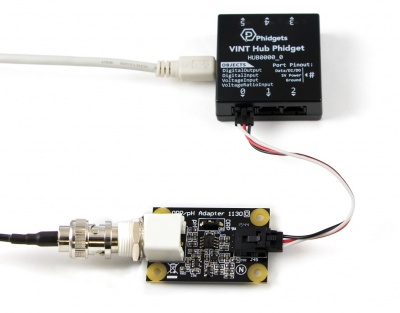

1130 0 Connecting The Hardware.jpg
  1. Connect the 1130 to the 1018 with the Phidget cable.
  2. Connect the pH/ORP probe to the 1130.
  3. Use the DIP switch to select pH or ORP to correspond to the type of electrode you're using.
  4. Connect the 1018 to your computer with the USB cable.


Now that you have everything together, let's start using the 1130!

Using the 1130

Phidget Control Panel

In order to demonstrate the functionality of the 1130, we will connect it to the 1018, and then run an example using the Phidget Control Panel on a Windows machine.


The Phidget Control Panel is available for use on both macOS and Windows machines. If you would like to follow along, first take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1130.

First Look

After plugging in the 1130 into the 1018, and the 1018 into your computer, open the Phidget Control Panel. You will see something like this:

1018 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Voltage Ratio Input

Double-click on a Voltage Ratio Input object in order to run the example:

1018 Sensors VoltageRatioInput.png


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • Modify the change trigger and/or data interval value by dragging the sliders. For more information on these settings, see the data interval/change trigger page.
  • Select the 1130 from the Sensor Type drop-down menu. The example will now convert the voltage into pH/ORP automatically. Converting the voltage to pH/ORP is not specific to this example, it is handled by the Phidget libraries, with functions you have access to when you begin developing!



Technical Details

Measuring the pH

The Phidget libraries can automatically convert sensor voltage into pH by selecting the appropriate SensorType. See the Phidget22 API for more details. To determine the pH of a solution, make sure the DIP switch on the board is flipped to the pH side. Given the voltage from the sensor, the following formula can be applied:



This formula(and the Phidget library Sensor Value formula) assumes that the solution is at 25°C. Depending on the temperature of the solution and on the actual pH level, the output voltage can change dramatically. To incorporate temperature (in °C) for added accuracy, the following formula can be used:



The following example is to give an idea of how the temperature affects the output voltage:

Temperature (°C) pH Voltage (V)
0 2 1.21
25 2 1.095
100 2 0.74
0 8 2.76
25 8 2.78
100 8 2.85

As shown above, temperature has a greater impact on solutions that have a pH further away from the reference pH of 7. Temperature also affects the impedance of the glass electrode, and can result in increased errors if not properly calibrated. If you want to monitor the temperature of the solution, you can use a thermocouple. You'll need to add some sort of protective shielding to the thermocouple if you’re using acidic or basic solutions, though. Check out our thermocouple interfaces for more information.

Measuring Oxidation/Reduction Potential (ORP)

The Phidget libraries can automatically convert sensor voltage into ORP by selecting the appropriate SensorType. See the Phidget22 API for more details. To determine the ORP of a solution, make sure the DIP switch on the board is flipped to the ORP side. Given the voltage from the sensor, the following formula can be applied:



ORP electrodes give a typical range of -2V to 2V, where the positive values are for oxidizers and the negative values are for reducers.

Words of Caution

The 1130 should be used to measure solutions that are 'electrically quiet'. Measuring pH in electrically noisy environments such as tanks with mixing pumps, and even other measuring devices is not recommended.

Choosing Electrodes

Review the data sheet for the electrode you have selected for your application to ensure that it complies with the device specifications of the 1130. The important specification is the output voltage of the electrode. Many electrodes will work but it is important to verify compliance before connecting an electrode to the 1130. In fact, any type of sensor that uses a BNC connector and complies with the voltage range of the 1130 should work. We have reviewed the following electrodes, and found that they can be used with the pH Adapter Board. This is by no means a comprehensive list, but can be used as a comparison with other electrodes if necessary.

Manufacturer Part Number
Omega PHE13XX, PHE14XX, ORE1311, ORE1411
Cole-Parmer EW-59001, EW27003
Mettler-Toledo InLab (BNC) Series


Phidget Cable


The Phidget Cable is a 3-pin, 0.100 inch pitch locking connector. Pictured here is a plug with the connections labelled. The connectors are commonly available - refer to the Analog Input Primer for manufacturer part numbers.

Further Reading

For more information on pH and ORP probes, check the PH/ORP Sensor Primer.

What to do Next

  • Programming Languages - Find your preferred programming language here and learn how to write your own code with Phidgets!
  • Phidget Programming Basics - Once you have set up Phidgets to work with your programming environment, we recommend you read our page on to learn the fundamentals of programming with Phidgets.
