Replaced by the 3268_1 and the 3531 - Optical Rotary Encoder HKT22, sold separately.

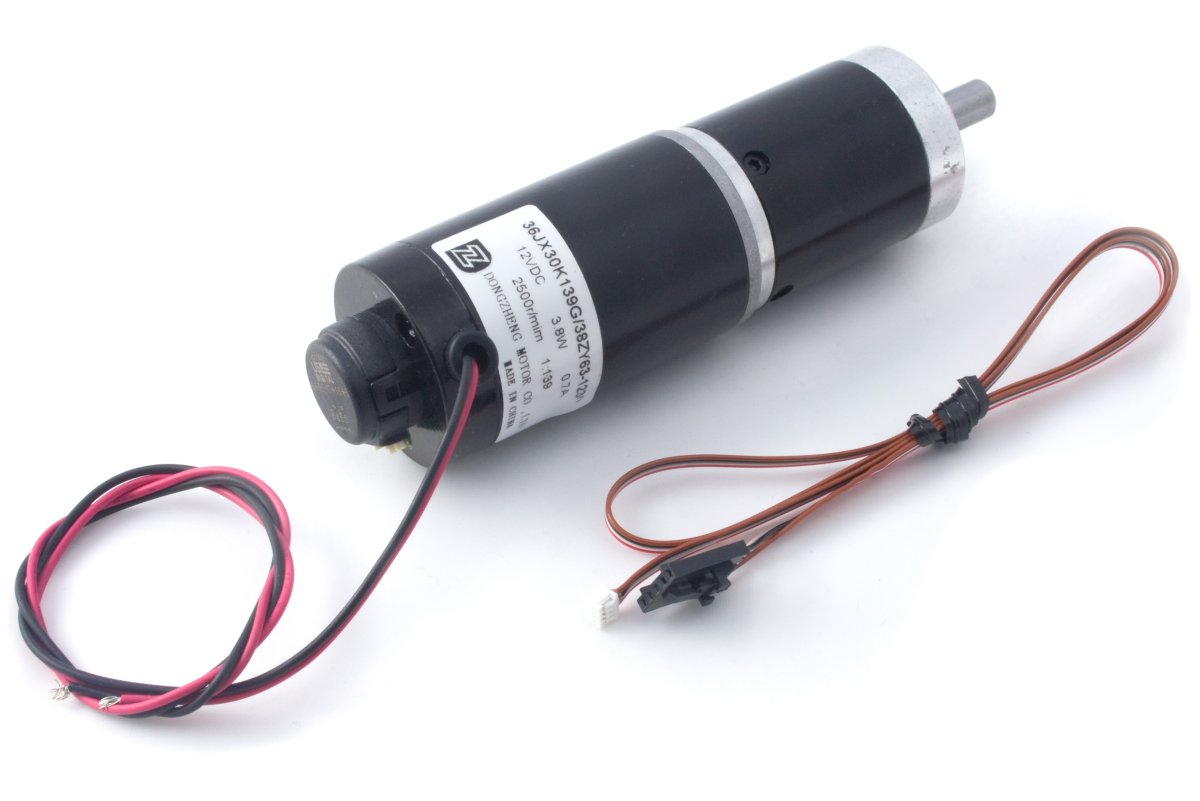

The 3268E is a 12 volt gear motor, generating 17.3 Kg-cm of torque at 18 RPM. Since this motor has a lower power output for its size, you can expect it to have a longer lifespan than other motors.
This motor comes equipped with an E4P US Digital Encoder, which keeps track of the motor's rotation, allowing you to control your motor precisely.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
|
The torque this motor produces when it stalls exceeds the rated strength of the gearbox. This means that stalling or very heavily loading this motor can cause serious damage to the gearbox. To avoid damage, avoid sudden loads or any load higher than the Maximum Strength of Gears spec. |
| Motor Properties | |
|---|---|
| Motor Type | DC Motor with Encoder |
| Output Power (Mechanical) | 3.8 W |
| Rated Speed | 18 RPM |
| Rated Torque | 17.3 kg·cm |
| Stall Torque | 128 kg·cm |
| Electrical Properties | |
| Rated Voltage | 12 V DC |
| Rated Current | 650 mA |
| Stall Current | 2.4 A |
| Physical Properties | |
| Shaft Diameter | 8 mm |
| Wire Length | 350 mm |
| Weight | 529 g |
| Gearbox Specifications | |
| Gearbox Type | Planetary |
| Gear Ratio | 139 184⁄1221 : 1 |
| Number of Gear Trains | 3 |
| Maximum Strength of Gears | 61 kg·cm |
| Shaft Maximum Axial Load | 50 N |
| Shaft Maximum Radial Load | 35 N |
| Backlash Error | 3° |
| Encoder Specifications | |
| Encoder Resolution | 360 CPR |
| Connector Type | E4P |
| Current Consumption Min | 27 mA |
| Supply Voltage Min | 4.5 V DC |
| Supply Voltage Max | 5.5 V DC |
| Customs Information | |
| Canadian HS Export Code | 8501.10.00 |
| American HTS Import Code | 8501.10.40.60 |
| Country of Origin | CN (China) |
