RFID Guide
How does RFID work? Learn how frequency, protocol, and chipset impacts reader compatibility.
Quantity Available: 1000+
Qty | Price |
---|---|
5 | $2.38 |
10 | $2.25 |
25 | $2.00 |
50 | $1.75 |
100 | $1.63 |
250 | $1.50 |
500 | $1.38 |
1000 | $1.25 |

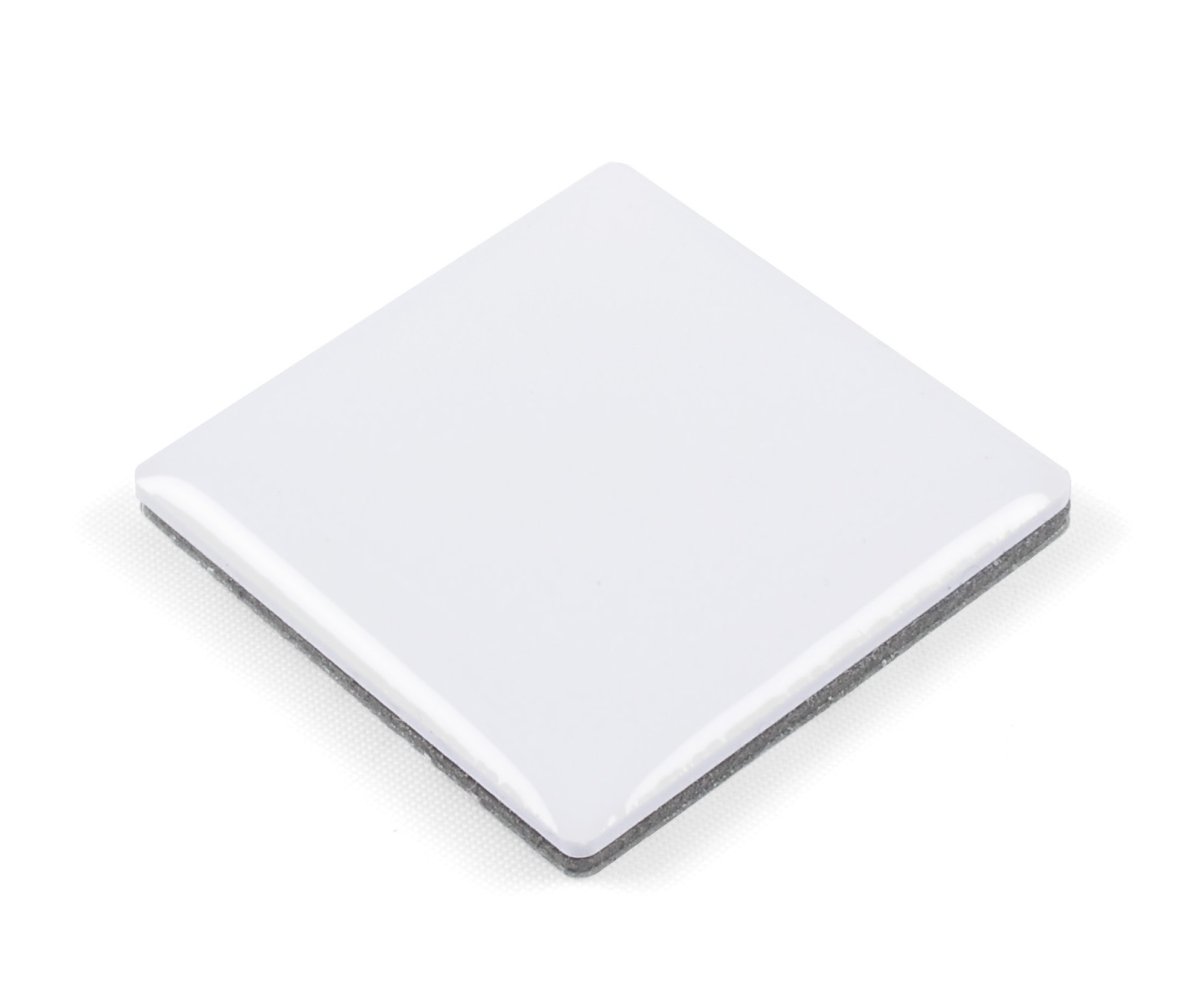

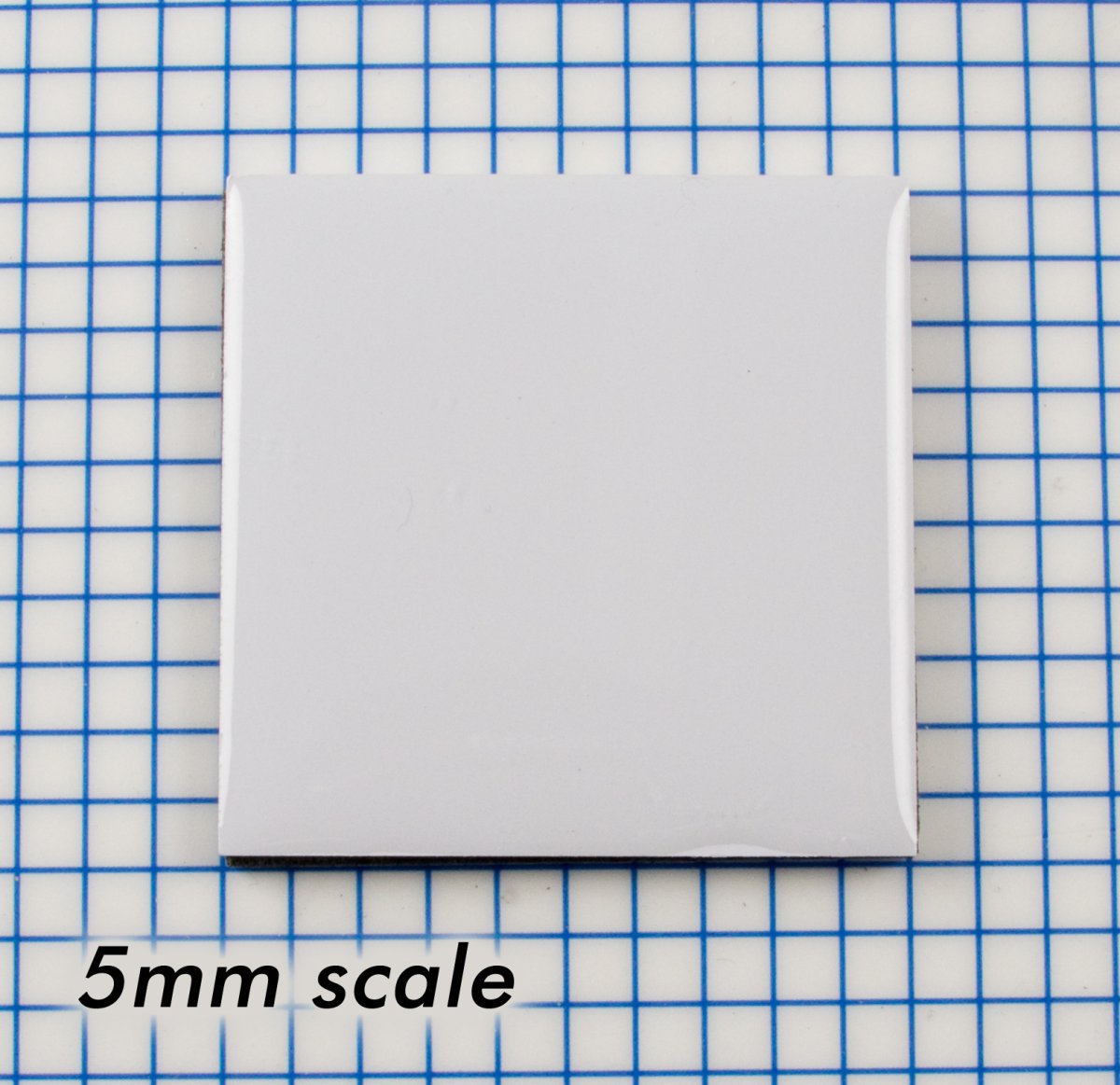

This RFID tag is a white plastic square with adhesive backing. The tag continues to operate normally when attached to metals, unlike most standard RFID tags. The tag contains a unique ID that can be read by the 1024 – RFID reader at a distance of 8cm or less.
This tag uses the EM4012 protocol (part of the EM4100 series) and can be read by any of the RFID readers in the table below. If you're using a different RFID reader, make sure it's designed to work at 125 kHz and supports this tag's protocol.
Product | RFID Reader | |||
---|---|---|---|---|
Part Number | Price | Antenna Resonant Frequency Min | Antenna Resonant Frequency Max | Supported Protocols |
![]() PhidgetRFID Read-Write
|
$60.00 | 125 kHz | 150 kHz | EM4100, ISO11785 FDX-B, PhidgetTag |
Tag Properties | |
---|---|
Supported Protocols | EM4102 |
Tag Characteristics | Passive, Read-Only |
Transmission Frequency | 125 kHz |
Encoding Method | Manchester |
Message Length | 64 bit |
Unique ID Length | 40 bit |
Typical Read/Write Distance (with 1024 - PhidgetRFID R-W) |
80 mm |
Physical Properties | |
Material | ABS |
Color | White |
Thickness | 4 mm |
Length | 50 mm |
Width | 50 mm |
Weight | 20.4 g |
IP Rating | IP68 |
Customs Information | |
Canadian HS Export Code | 8543.90.90 |
American HTS Import Code | 8543.90.88.85 |
Country of Origin | CN (China) |
Product | Tag Properties | |||
---|---|---|---|---|
Part Number | Price | Supported Protocols | Tag Characteristics | Typical Read/Write Distance (with 1024 - PhidgetRFID R-W) |
![]() RFID Tag - Credit Card Sized
|
$1.10 | EM4102 | Passive, Read-Only | 110 mm |
![]() RFID Tag - ABS Key Fob Blue
|
$1.30 | EM4102 | Passive, Read-Only | 80 mm |
![]() RFID Tag - Clothing Button
|
$2.00 | EM4102 | Passive, Read-Only | 60 mm |
![]() RFID Tag - Watch with Adjustable Strap
|
$2.75 | EM4102 | Passive, Read-Only | 80 mm |
![]() RFID Tag - Watch-like with Elastic Strap
|
$2.00 | EM4102 | Passive, Read-Only | 80 mm |
![]() RFID Tag - PVC 30mm Disc White
|
$1.00 | EM4102 | Passive, Read-Only | 80 mm |
![]() RFID Tag - 30mm Disc Black
|
$1.30 | EM4102 | Passive, Read-Only | 100 mm |
![]() RFID Tag - Threaded Black
|
$0.80 | EM4102 | Passive, Read-Only | 70 mm |
![]() RFID Tag - Bird Leg Ring Black
|
$0.80 | EM4102 | Passive, Read-Only | 50 mm |
![]() Writable RFID Tag - PVC Card
|
$1.50 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 120 mm |
![]() Writable RFID Tag - ABS Key Fob
|
$1.20 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
![]() Writable RFID Tag - Watch with Adjustable Strap
|
$3.00 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
![]() Writable RFID Tag - ABS Disc 30mm
|
$2.30 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
![]() Writable RFID Tag - PVC Disc 30mm
|
$1.50 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
![]() RFID Tag - 5cm Metal Mount
|
$2.50 | EM4102 | Passive, Read-Only | 80 mm |
![]() RFID Tag - 18mm PVC Disc
|
$1.00 | EM4102 | Passive, Read-Only | 50 mm |
![]() Writable RFID Tag - PVC Disc 25mm
|
$1.50 | EM4100, ISO11785 FDX-B, ASCII | Passive, Read/Write | 100 mm |
