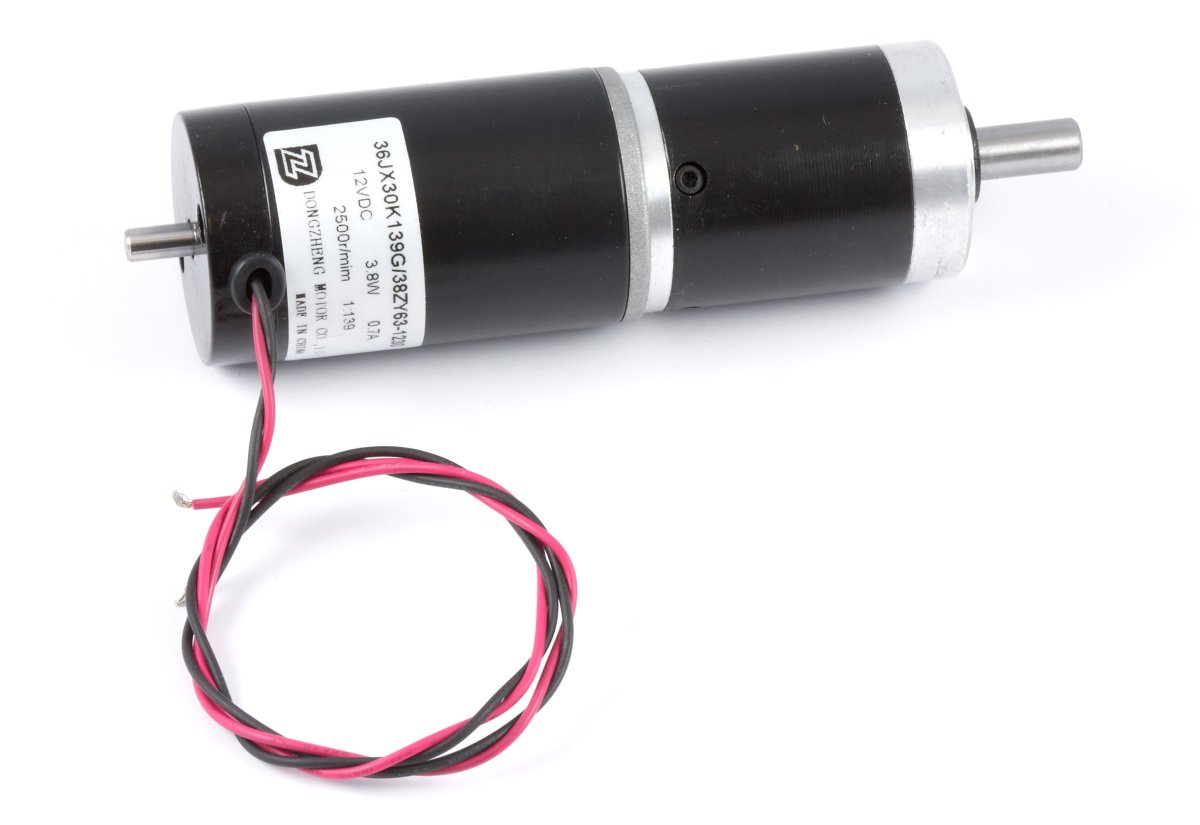

The 3268 is a 12 volt gear motor, generating 17.3 Kg-cm of torque at 18 RPM. Since this motor has a lower power output for its size, you can expect it to have a longer lifespan than other motors.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
|
The torque this motor produces when it stalls exceeds the rated strength of the gearbox. This means that stalling or very heavily loading this motor can cause serious damage to the gearbox. To avoid damage, avoid sudden loads or any load higher than the Maximum Strength of Gears spec. |
| Motor Properties | |
|---|---|
| Motor Type | DC Motor |
| Output Power (Mechanical) | 3.8 W |
| Rated Speed | 18 RPM |
| Rated Torque | 17.3 kg·cm |
| Stall Torque | 128 kg·cm |
| Electrical Properties | |
| Rated Voltage | 12 V DC |
| Rated Current | 650 mA |
| Stall Current | 2.4 A |
| Physical Properties | |
| Shaft Diameter | 8 mm |
| Wire Length | 350 mm |
| Weight | 526 g |
| Gearbox Specifications | |
| Gearbox Type | Planetary |
| Gear Ratio | 139 184⁄1221 : 1 |
| Number of Gear Trains | 3 |
| Maximum Strength of Gears | 61 kg·cm |
| Shaft Maximum Axial Load | 50 N |
| Shaft Maximum Radial Load | 35 N |
| Backlash Error | 3° |
| Customs Information | |
| Canadian HS Export Code | 8501.10.00 |
| American HTS Import Code | 8501.10.40.60 |
| Country of Origin | CN (China) |

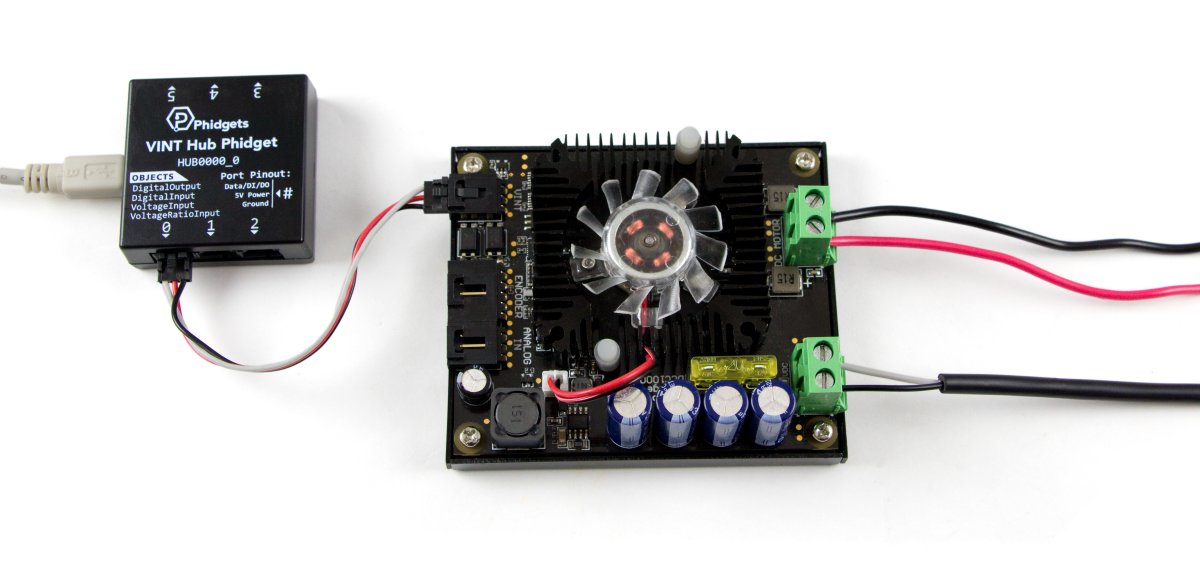

DC motors can be simply connected to a power supply according to their rated voltage in order to make them run, but if you want to have control over direction, velocity, and acceleration in real-time, you'll need to use a motor controller. In order to connect this motor to a controller, you can connect the wires to the motor terminal on the controller. Don't worry about wiring the motor backwards; doing so will only reverse the direction of rotation.
