12V brushed DC motor
3266 functional DCC1000
12V brushed DC motor 3266 functional DCC1000

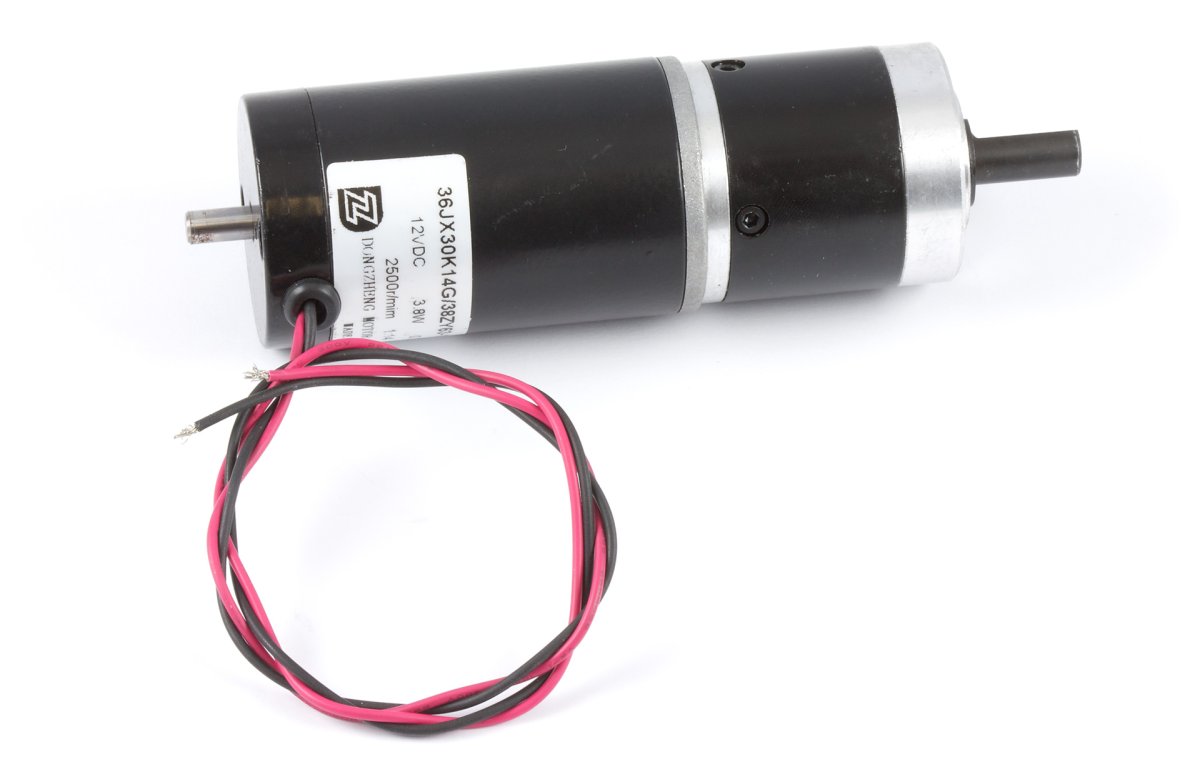

12V/1.9Kg-cm/175RPM 14:1 DC Gear Motor

ID: 3266_1
Recommended for new designs: This product is sourced from another supplier, but it (or a similar replacement with a compatible form, fit and function) is estimated to be available for as long as it is available from the supplier.
This DC motor has a 14:1 gearbox, a rated speed of 175 RPM and rated torque of 1.94 Kg·cm.

$42.00

Quantity Available: 447

Qty Price
5 $40.32
10 $38.64
25 $37.80
50 $36.96
100 $36.12

The 3266 is a 12 volt gear motor, generating 1.94 Kg-cm of torque at 175 RPM. Since this motor has a lower power output for its size, you can expect it to have a longer lifespan than other motors.

The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.

This revision of the 3266 has had its rear shaft and mounting holes changed to be compatible with the 3531 - Optical Rotary Encoder HKT22.

Connection

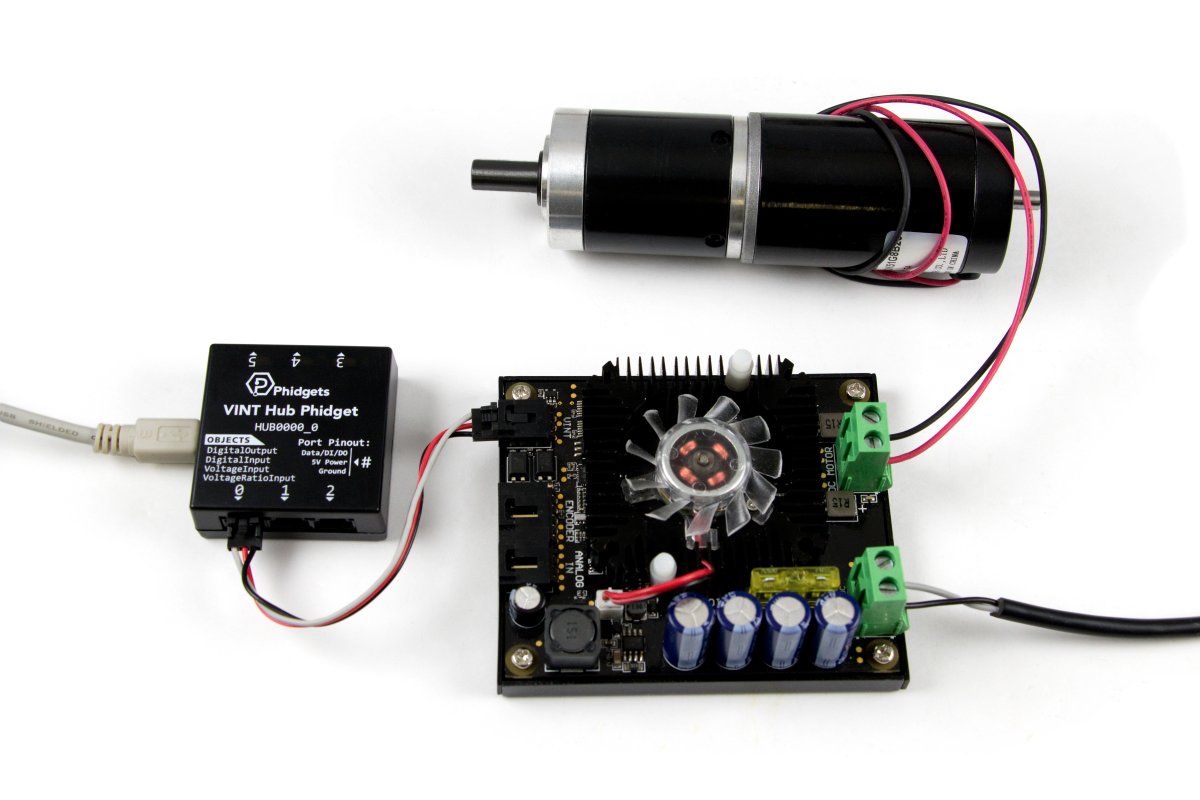

This motor can be controlled by a DC motor controller. You can find a list of suitable controllers on the Connection & Compatibility tab.

DC Motor Controllers

DC motors can be simply connected to a power supply according to their rated voltage in order to make them run, but if you want to have control over direction, velocity, and acceleration in real-time, you'll need to use a motor controller. In order to connect this motor to a controller, you can connect the wires to the motor terminal on the controller. Don't worry about wiring the motor backwards; doing so will only reverse the direction of rotation.

Product Controller Properties Electrical Properties Board Properties
Image Part Number Price Number of Motor Ports Velocity Resolution Acceleration Resolution Continuous Motor Current Max Controlled By
1064_1B $115.00 2 0.79 % Duty Cycle 1.9 % Duty Cycle/s (per motor) 14 A USB (Mini-USB)
1065_1B $75.00 1 0.39 % Duty Cycle 24.5 % Duty Cycle/s 5 A USB (Mini-USB)
DCC1000_0 $75.00 1 0.001 Duty Cycle 1 % Duty Cycle/s 25 A VINT
DCC1001_0 $40.00 1 0.001 Duty Cycle 0.1 Duty Cycle/s 2 A VINT

Shaft Couplers

If you need to connect the main shaft of this motor to another device with a shaft, you can use a shaft coupler:

Product Physical Properties
Image Part Number Price Inner Diameter Material Coupling Rated Torque Coupling Rated Speed Torsional Stiffness
3423_0 $7.50 8 mm Aluminium 4.1 kg·cm 10000 RPM 100 N·m/rad
TRM4313_0 $2.80 8 mm Aluminum 35.7 kg·cm 12000 RPM —
TRM4334_0 $3.35 8 mm Aluminium 10 kg·cm 8000 RPM 110 N·m/rad

Pulleys and Sprockets

If you're using this motor to drive a rotary system that requires a lot of torque, you may be interested in pulleys and sprockets. By using a two pulleys or sprockets of different sizes, you can increase the gear ratio of the motor. Pulleys and sprockets can also be used to transmit the motor's rotation over a long distance. For more guidance on building a transmission system, visit our Rotary Motion Primer. Here is a list of our 8mm bore pulleys and sprockets:

Product Physical Properties
Image Part Number Price Inner Diameter Number of Teeth
TRM4102_0 $2.25 8 mm 22
TRM4103_0 $2.25 8 mm 32
TRM4104_0 $2.45 8 mm 44
TRM4105_0 $3.00 8 mm 60
TRM4106_0 $3.70 8 mm 80
TRM4111_0 $2.25 8 mm 12
TRM4112_0 $3.15 8 mm 24
TRM4113_0 $4.45 8 mm 34
TRM4114_0 $6.70 8 mm 50
TRM4135_0 $1.85 8 mm 10
TRM4158_0 $3.25 8 mm 44

Mounting Brackets

Mounting this motor to a flat surface is easy with these metal mounting brackets. The holes on the bracket match those on the front of the gearbox. The following brackets will fit the mounting holes on this motor:

Product Physical Properties
Image Part Number Price Mounting Plate Size Material
3338_0 $3.50 NEMA - 17 Mild Steel (Coated)

Rotary Bearings

Systems with heavy loads or pulley/sprocket assemblies often put a lot of sideways strain on the motor shaft. If you're using this motor to drive such a system, you can use rotary bearings to protect the motor:

Product Physical Properties Mechanical Properties
Image Part Number Price Inner Diameter Bearing Type Static Load Dynamic Load
TRM4500_0 $4.00 8 mm Rotary Shaft (Flanged) 1.3 kN 3.3 kN
TRM4501_0 $4.25 8 mm Rotary Shaft (Pillow Block) 1.3 kN 3.3 kN

Encoders

The rear shaft of this motor can be equipped with an encoder for applications where you need to keep track of the exact position, velocity, or acceleration of the motor. The mounting holes on the back of this motor are compatible with the following encoders:

Product Encoder Properties
Image Part Number Price Output Circuit Type Encoder Resolution Encoder Speed Max
3531_0 $25.00 Push-Pull (Single-Ended) 300 CPR 6000 RPM
ENC4109_0 $10.00 Push-Pull 40 CPR 6000 RPM

Product Specifications

Motor Properties
Motor Type DC Motor
Output Power (Mechanical) 3.8 W
Maximum Speed at Rated Voltage 175 RPM
Rated Torque 1.9 kg·cm
Stall Torque 12.9 kg·cm
Electrical Properties
Rated Voltage 12 V DC
Rated Current 650 mA
Stall Current 2.4 A
Physical Properties
Shaft Diameter 8 mm
Wire Length 350 mm
Weight 464 g
Gearbox Specifications
Gearbox Type Planetary
Gear Ratio 13 212⁄289 : 1
Number of Gear Trains 2
Maximum Strength of Gears 30 kg·cm
Shaft Maximum Axial Load 50 N
Shaft Maximum Radial Load 35 N
Backlash Error 3°

Here's a list of our DC motors:

Product Motor Properties Physical Properties Gearbox Specifications
Image Part Number Price Maximum Speed at Rated Voltage Rated Torque Shaft Diameter Weight Gear Ratio Gearbox Type
3254_0 $10.00 230 RPM 200 g·cm 6 mm 128 g 10 : 1 Spur
3255_0 $10.00 127 RPM 310 g·cm 6 mm 133 g 18 : 1 Spur
3256_0 $11.00 46 RPM 820 g·cm 6 mm 137 g 50 : 1 Spur
3257_0 $11.00 23 RPM 1.6 kg·cm 6 mm 136 g 100 : 1 Spur
3260_0 $15.00 73 RPM 6.1 kg·cm 6 mm 284 g 50 : 1 Spur
3261_0 $18.00 1080 RPM 240 g·cm 6 mm 144 g 3 12⁄17 : 1 Planetary
3262_1 $18.00 285 RPM 900 g·cm 6 mm 170 g 13 212⁄289 : 1 Planetary
3263_1 $20.50 78 RPM 3.1 kg·cm 6 mm 193 g 50 801⁄895 : 1 Planetary
3264_1 $20.50 28 RPM 8.5 kg·cm 6 mm 192 g 139 184⁄1221 : 1 Planetary
3265_0 $38.00 670 RPM 540 g·cm 8 mm 416 g 3 12⁄17 : 1 Planetary
3266_0 $42.00 175 RPM 1.9 kg·cm 8 mm 464 g 13 212⁄289 : 1 Planetary
3266_1 $42.00 175 RPM 1.9 kg·cm 8 mm 464 g 13 212⁄289 : 1 Planetary
3267_0 $43.00 49 RPM 6.6 kg·cm 8 mm 526 g 50 801⁄895 : 1 Planetary
3267_1 $43.00 49 RPM 6.6 kg·cm 8 mm 526 g 50 801⁄895 : 1 Planetary
3268_1 $43.00 18 RPM 17.3 kg·cm 8 mm 526 g 139 184⁄1221 : 1 Planetary
3269_3 $69.00 588 RPM 5.1 kg·cm 12 mm 1.3 kg 4 1⁄4 : 1 Planetary
3270_1 $66.00 192 RPM 14.3 kg·cm 12 mm 1.5 kg 12 24⁄25 : 1 Planetary
3272_2 $72.00 53 RPM 51 kg·cm 12 mm 1.7 kg 46 82⁄125 : 1 Planetary
3273_2 $72.00 33 RPM 82.6 kg·cm 12 mm 1.7 kg 76 49⁄64 : 1 Planetary
3274_2 $76.00 15 RPM 173 kg·cm 12 mm 2 kg 167 601⁄625 : 1 Planetary
DCM4000_0 $40.00 3280 RPM 2.5 kg·cm 8 mm 1.4 kg — —
DCM4001_0 $80.00 772 RPM 10.6 kg·cm 12 mm 1.9 kg 4.25:1 Planetary
DCM4002_0 $82.00 182 RPM 45 kg·cm 12 mm 2.1 kg 18:1 Planetary
DCM4003_0 $84.00 50 RPM 162.5 kg·cm 12 mm 2.2 kg 65:1 Planetary
DCM4004_0 $50.00 3000 RPM 4.4 kg·cm 10 mm 2.7 kg — —
DCM4005_0 $60.00 3563 RPM 6.1 kg·cm 10 mm 3.3 kg — —

Here's a list of DC motors with encoders attached:

Product Motor Properties Physical Properties Gearbox Specifications
Image Part Number Price Maximum Speed at Rated Voltage Rated Torque Shaft Diameter Weight Gear Ratio Gearbox Type
3255E_0 $40.00 127 RPM 310 g·cm 6 mm 136 g 18 : 1 Spur
3256E_0 $41.00 46 RPM 820 g·cm 6 mm 140 g 50 : 1 Spur
3261E_1 $48.00 1080 RPM 240 g·cm 6 mm 147 g 3 12⁄17 : 1 Planetary
3262E_0 $48.00 285 RPM 900 g·cm 6 mm 174 g 13 212⁄289 : 1 Planetary
3263E_1 $50.50 78 RPM 3.1 kg·cm 6 mm 193 g 50 801⁄895 : 1 Planetary
3265E_0 $68.00 670 RPM 540 g·cm 8 mm 419 g 3 12⁄17 : 1 Planetary
3266E_0 $72.00 175 RPM 1.9 kg·cm 8 mm 467 g 13 212⁄289 : 1 Planetary
