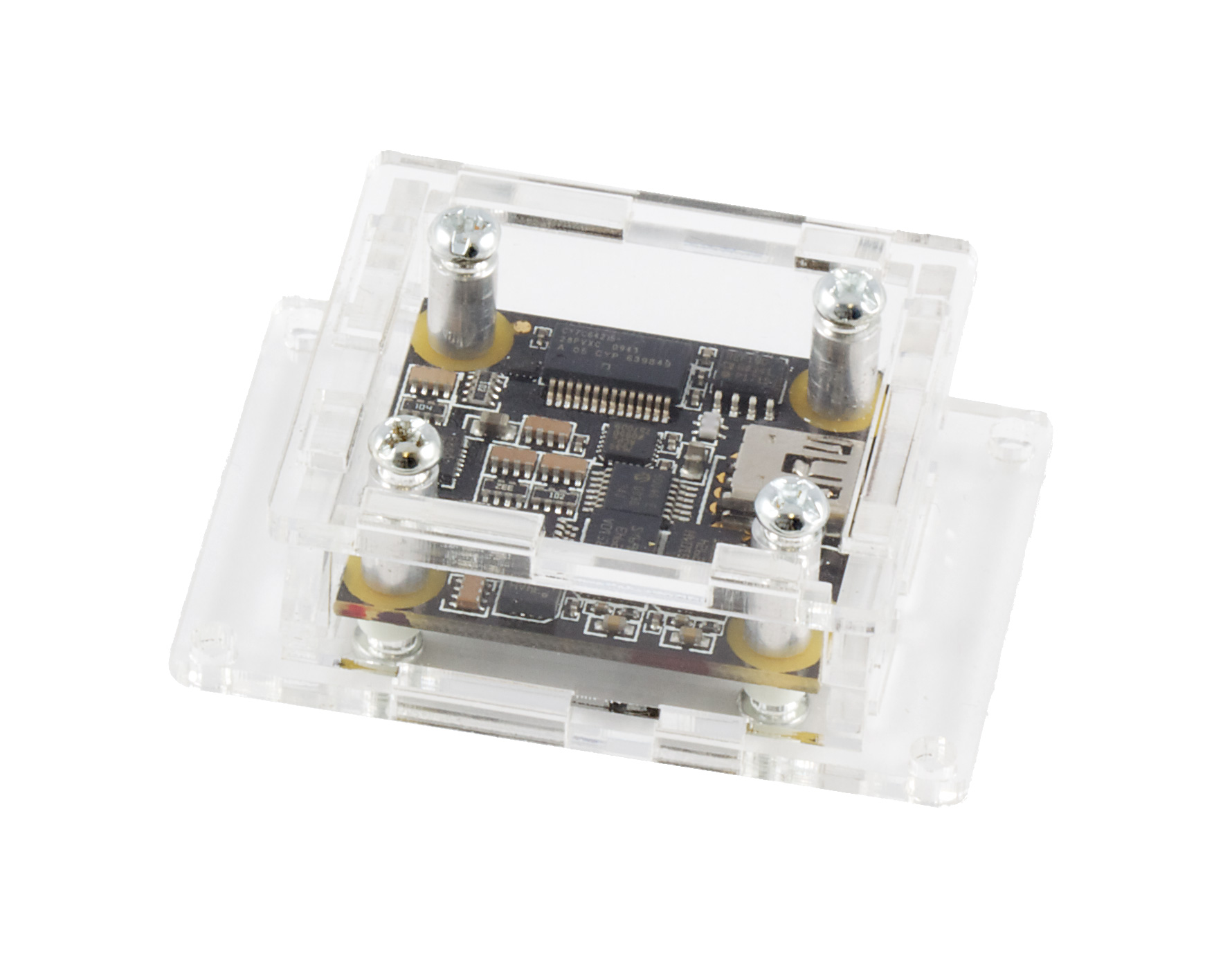

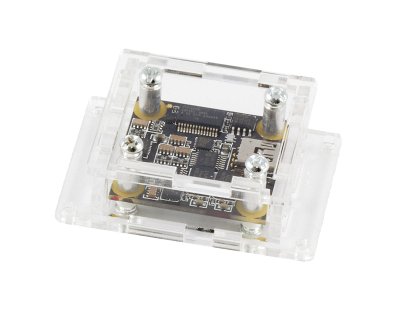

| 3811_1 - Acrylic Enclosure for Spatials |
Product Features
- Fits Board Revision 0
- Protects your board
- Easy to Assemble
- Material: Clear Acrylic
- All you need is a small Phillips screwdriver
Product Description
The 3811 Enclosure is designed to protect the following boards while still giving you access to all terminals and connectors through openings in the enclosure:
- 1049 – PhidgetSpatial 0/0/3
- 1056 – PhidgetSpatial 3/3/3
- 1041 – PhidgetSpatial 0/0/3 Basic
- 1042 – PhidgetSpatial 3/3/3 Basic
- 1043 – PhidgetSpatial 0/0/3 High Resolution
- 1044 – PhidgetSpatial 3/3/3 High Resolution
You can plug and unplug cables, connect and disconnect devices, without having to open the enclosure.
Note: The Phidget board is not included with the enclosure and must be purchased separately.
Product Specifications
Physical Properties
| Fits Board Revision | 0 |
| Material | Clear Acrylic |
| Thickness | 3.2 mm |
| IP Rating | 20 |
Package Includes
- 6 clear acrylic pieces
- Mounting Hardware (Nuts, bolts, spacers)
Required Tools
- Small Phillips screwdriver
Resources
Warning
|
Be careful when tightening the mounting screws as too much tension could crack the acrylic. |
