3555_0 - ASR2803-3-1M-BNC ORP Lab Electrode
Quantity Price
1$70.00
5$67.20
10$65.10
25$63.00
100$60.90
In Stock
Qty: 95
ROHS

Product Features


This lab electrode measures the ORP of a solution and connects to the 1130 - pH/ORP Adapter.
Product Description

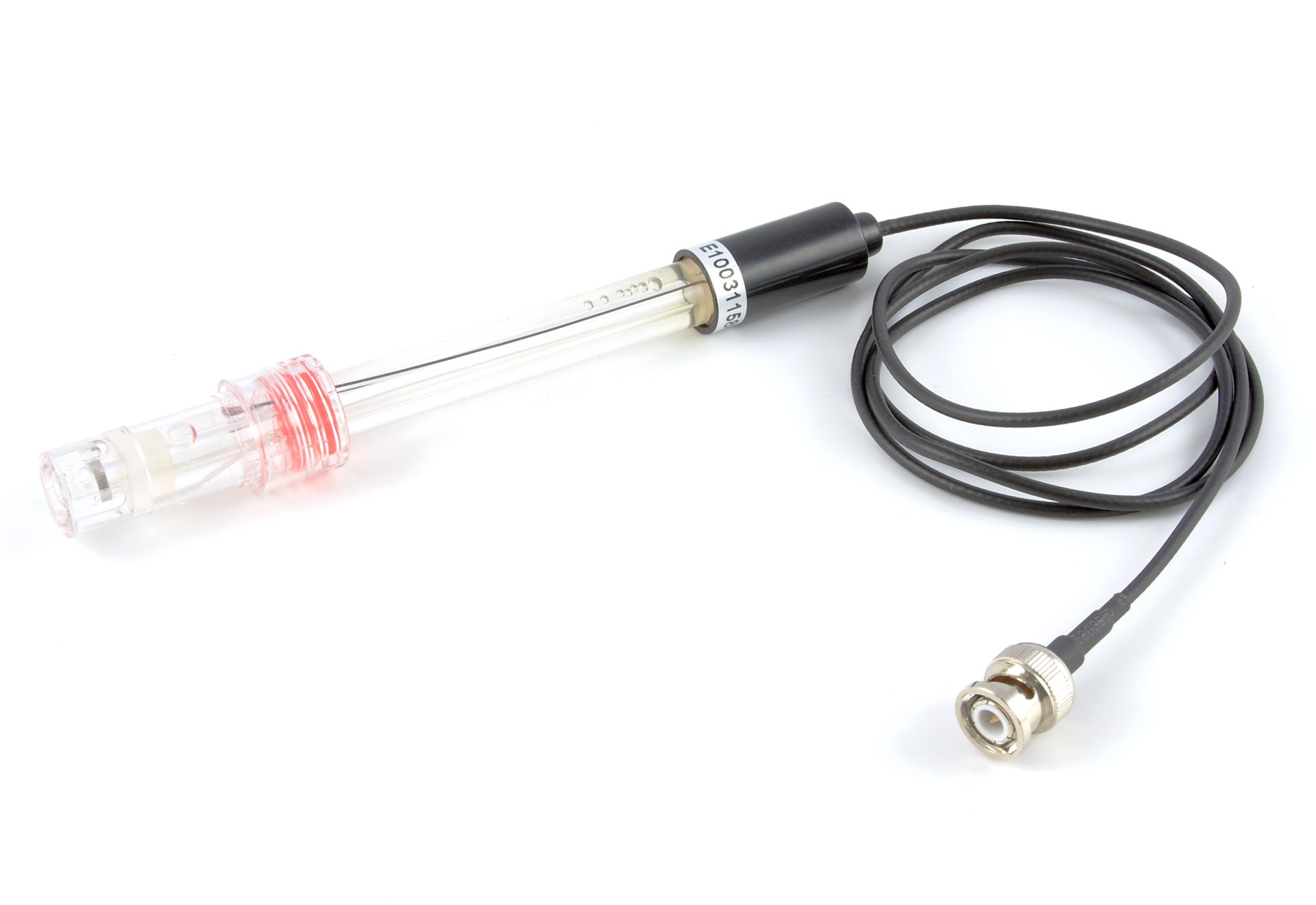

The 3555 is an economical single junction combination electrode ideal for your general-purpose applications in the lab or field. It has the impact-resistant qualities of an epoxy body.

The electrode uses a Teflon diaphragm with a large Pt ring section and provides a fast, stable response. The sealed, gel-filled design requires virtually no maintenance as there is no need to refill the KCL solution.

The 3555 measures 120 mm (length) x 12 mm (diameter), can withstand temperatures to 80°C and measures ORP levels from -1500 to +1500mv.

It comes with a 6 meter cable terminated by a BNC connector.



Product Specifications

Electrode Properties

Electrode TypeCombination Single-Junction
ORP Measurement Range± 1.5 V DC
Electrode Response Time Max10 s
Operating Temperature Min0 °C
Operating Temperature Max80 °C

Physical Properties

Exterior Tube MaterialImpact Resistant Plastic
Connector TypeBNC
Length120 mm
Diameter12 mm
Cable Length1 m

Resources



Connection

The pH electrode connects to the BNC connector on the 1130 - pH/ORP Adapter .

FUNCTIONAL
Comes Packaged with

  • A small bottle of buffer solution

When you receive this sensor, fill the cap with buffer solution and ensure that it has no leaks.
