3530_0 - Optical Rotary Encoder ISC3004
Quantity Price
1$50.00
5$48.00
10$46.50
25$45.00
100$43.50
In Stock
Qty: 662
ROHS

Product Features


This encoder can measure rotation at speeds of up to 3000 RPM and plugs into a Phidgets Encoder Interface.
Product Description

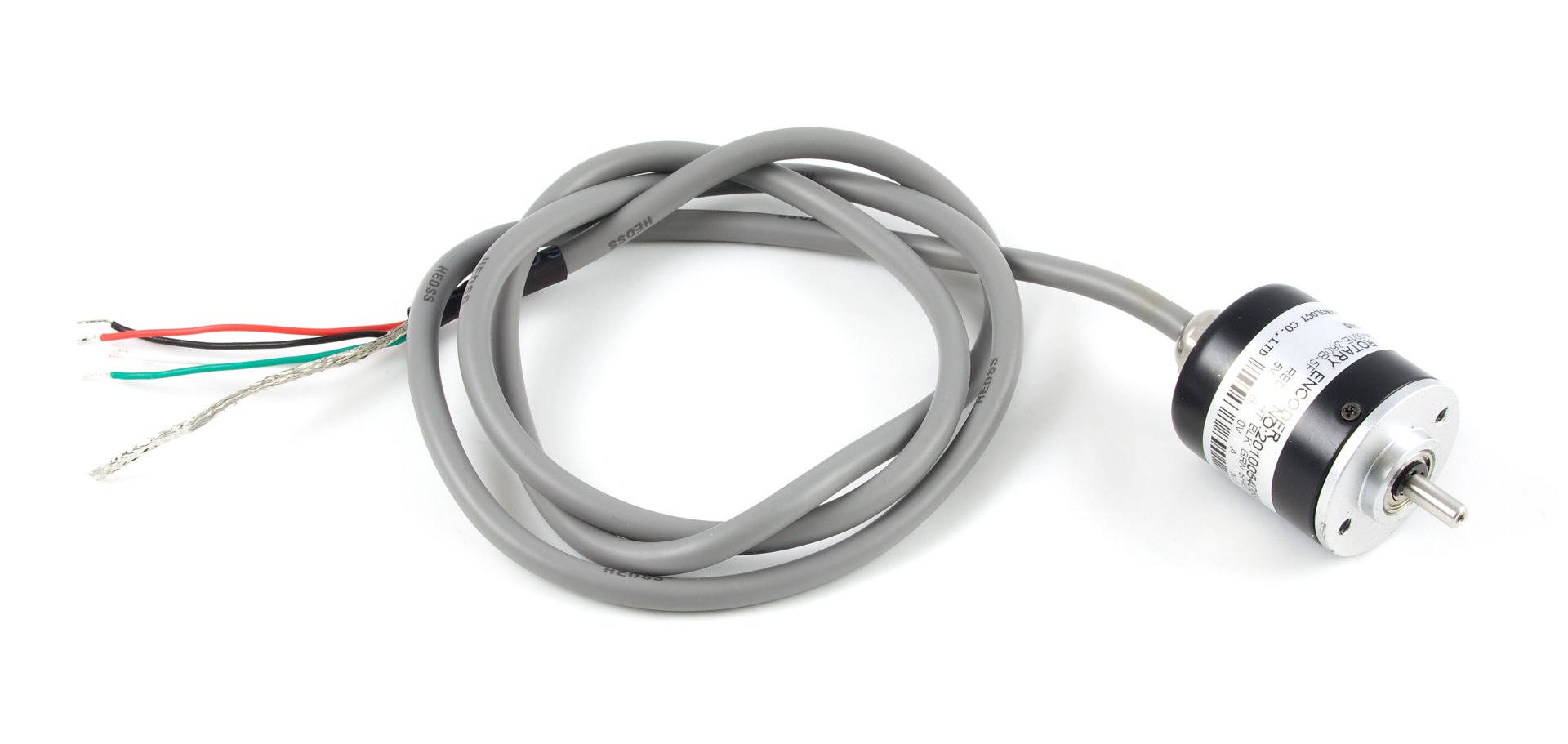

This is a small ball bearing construction, rotary encoder without index that goes up to 3000 rpm.

The encoder comes with a 1 meter cable and 2 mounting screws.

To attach this encoder to the shaft of a motor or another device, we recommend one of the following shaft couplers:


Product Specifications

Encoder Properties

Output Circuit TypePush-Pull (Single-Ended)
Encoder Resolution360 CPR
Encoder Speed Max3000 RPM

Electrical Properties

Supply Voltage Min5 V DC
Supply Voltage Max5 V DC
Output Frequency Max80 kHz

Physical Properties

Shaft Diameter4 mm
Shaft Maximum Axial Load10 N
Shaft Maximum Radial Load20 N
Operating Humidity Min30 %RH
Operating Humidity Max(Non-condensing) 85 %RH
Operating Temperature Min-25 °C
Operating Temperature Max85 °C
IP RatingIP54
Weight83 g

Resources



Connection

This rotary encoder connects to:

The easiest way to connect your encoder to the 1057 or to the 1047 is to use a 3019 - HighSpeed Encoder Cable 50cm, cut it to the desired length and solder the encoder wires to the encoder cable as follows:


3530 - Encoder3019 - Phidget cable
RedRed
BlackBlack
WhiteWhite
GreenBrown

FUNCTIONAL
You could also buy the male connector, which is a Molex 50-57-9405, and crimp it onto the end of the cable, if you have the appropriate tools.
