| 3267_0 - 12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor |
Product Features
- Good Torque, Good Speed
- Shaft Diameter: 8mm
- 50 801/895 : 1 Gear Reduction
- Rated speed: 49RPM
- Rated Torque: 6.63 Kg-cm
Approximate arrival date of new stock: May 31, 2013
Product Description

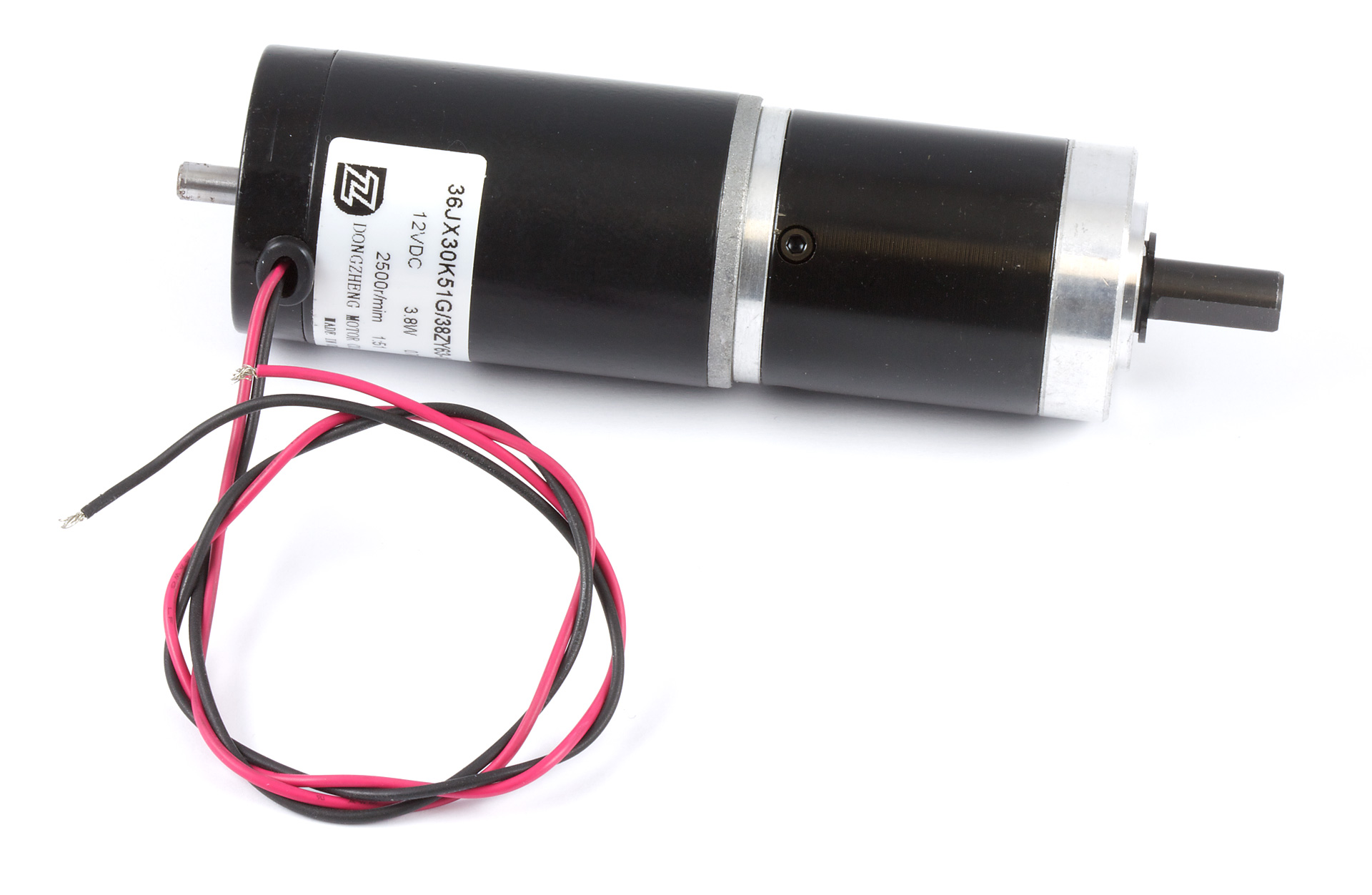

The 3267 is a 12 volt gear motor, generating 6.63 Kg-cm of torque at 49 RPM. Since this motor has a lower power output for its size, you can expect it to have a longer lifespan than other motors.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
Motor Controller and Connection
The 3267 DC motor connects to either of the following controllers:
Related Products
- 3267E - 12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor w/ Encoder
- 3265 - 12V/0.5Kg-cm/670RPM 3.7:1 DC Gear Motor
- 3266 - 12V/1.9Kg-cm/175RPM 14:1 DC Gear Motor
- 3268 - 12V/17.3Kg-cm/18RPM 139:1 DC Gear Motor
Resources
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 3.8 W |
| Maximum Speed at Rated Voltage | 49 RPM |
| Rated Torque | 6.6 kg·cm |
| Stall Torque | 46.8 kg·cm |
Electrical Properties
| Rated Voltage | 12 V DC |
| Rated Current | 650 mA |
| Stall Current | 2.4 A |
Physical Properties
| Shaft Diameter | 8 mm |
| Wire Length | 350 mm |
| Weight | 526 g |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 50 801⁄895 : 1 |
| Number of Gear Trains | 3 |
| Maximum Strength of Gears | 61 kg·cm |
| Shaft Maximum Axial Load | 50 N |
| Shaft Maximum Radial Load | 35 N |
