| 1204_0 - PhidgetTextLCD Adapter |
Product Features
- Interfaces to up to 2 HD44780 (or compatible) LCD modules
- Handles LCD screens of up to 4 lines of 40 characters (5x8 dots with cursor)
- Separate Adjustable Backlight and Contrast for each LCD channel
- Connects directly to a computer's USB Port
Product Description

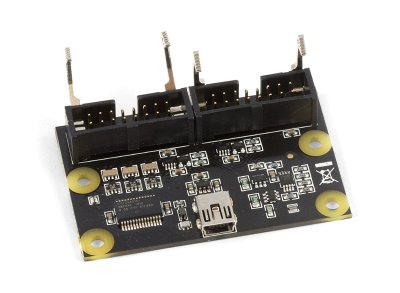

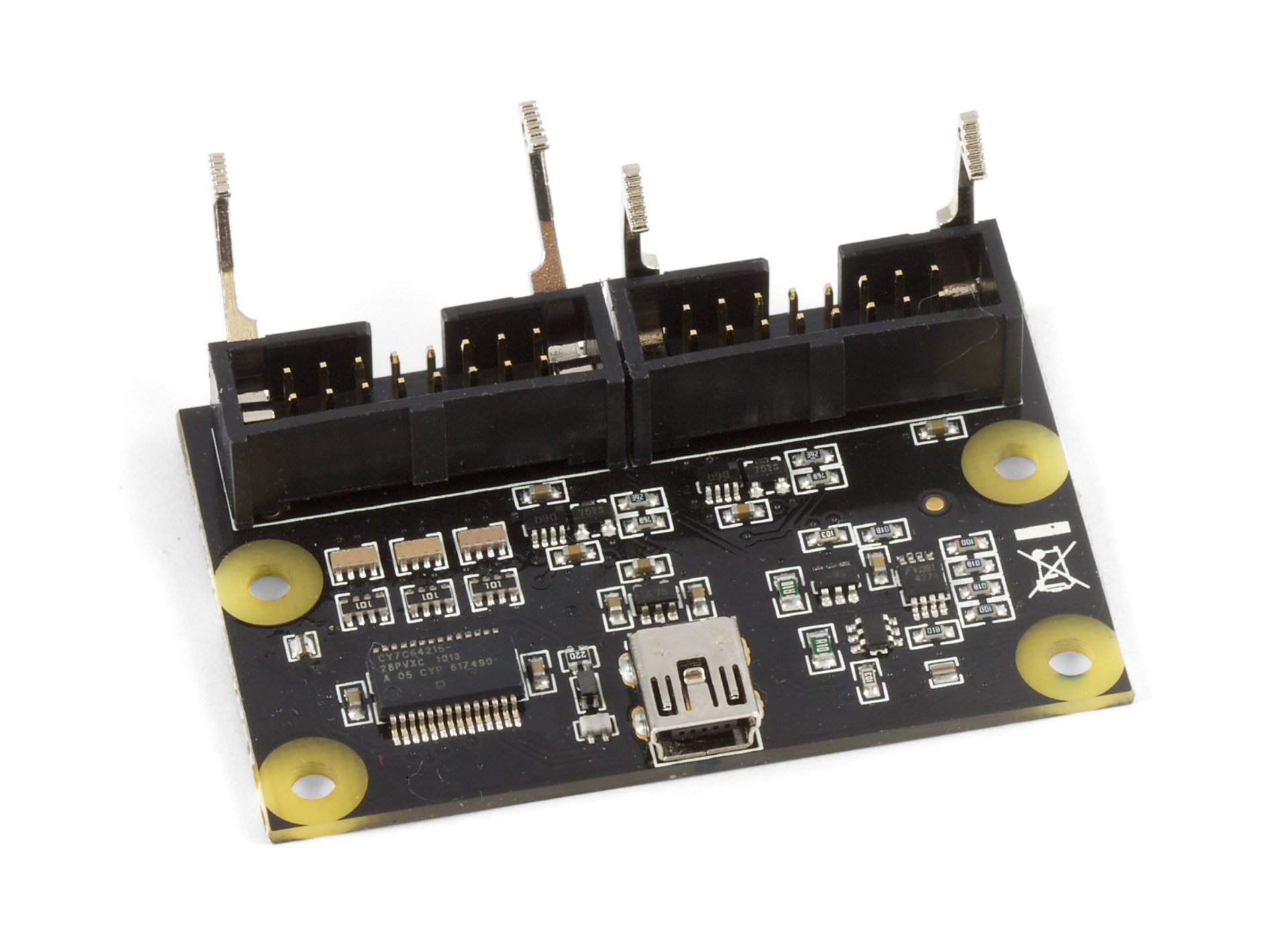

The PhidgetTextLCD Adapter lets you connect one or two HD44780 LCD modules. The adapter can handle up to 4 lines of 40 characters, depending on the LCD module you are using. You can separately adjust the backlight and the character contrast of each LCD module.
The 1204 API supports the following screen sizes (lines x characters):
- 1x8, 2x8
- 1x16, 2x16 4x16
- 2x20, 4x20
- 2x24
- 1x40, 2x40, 4x40
Product Specifications
Electrical Properties
| Current Consumption Max | 500 mA |
| Current Consumption Min | 34 mA |
| Current Consumption Max (1x8 or 2x8 screen) | 200 mA |
| Current Consumption Max (2x20 or 2x24 screen) | 76.5 mA |
| Current Consumption Max (4x40 screen) | 181 mA |
| Current Consumption Max (Backlight) | 400 mA |
| Available External Voltage | 5 V DC |
| USB Speed | Full Speed |
Physical Properties
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Related Products
We carry a variety of LCD screens that can be pugged in the 1204. Just pick the one that fits your needs.
Comes Packaged with
- A 3018 - Mini-USB Cable 180cm
- A hardware mounting kit
Resources
Enclosure
You can protect your board by purchasing the 3819 - Acrylic Enclosure for the 1204 .
