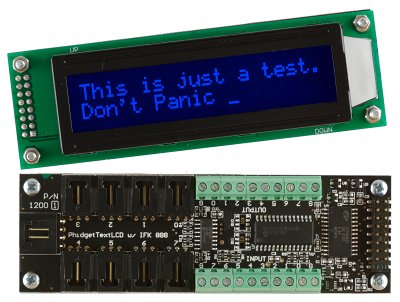

1202_1 - PhidgetTextLCD 20X2 : Blue : Integrated PhidgetInterfaceKit 8/8/8 - Discontinued


ROHS

Product Features


A 1018 with a 2-line by 20-character Blue Backlit LCD Display.

Replaced by the 1203 - PhidgetTextLCD 20X2:White:Integrated PhidgetInterfaceKit 8/8/8.

Product Description

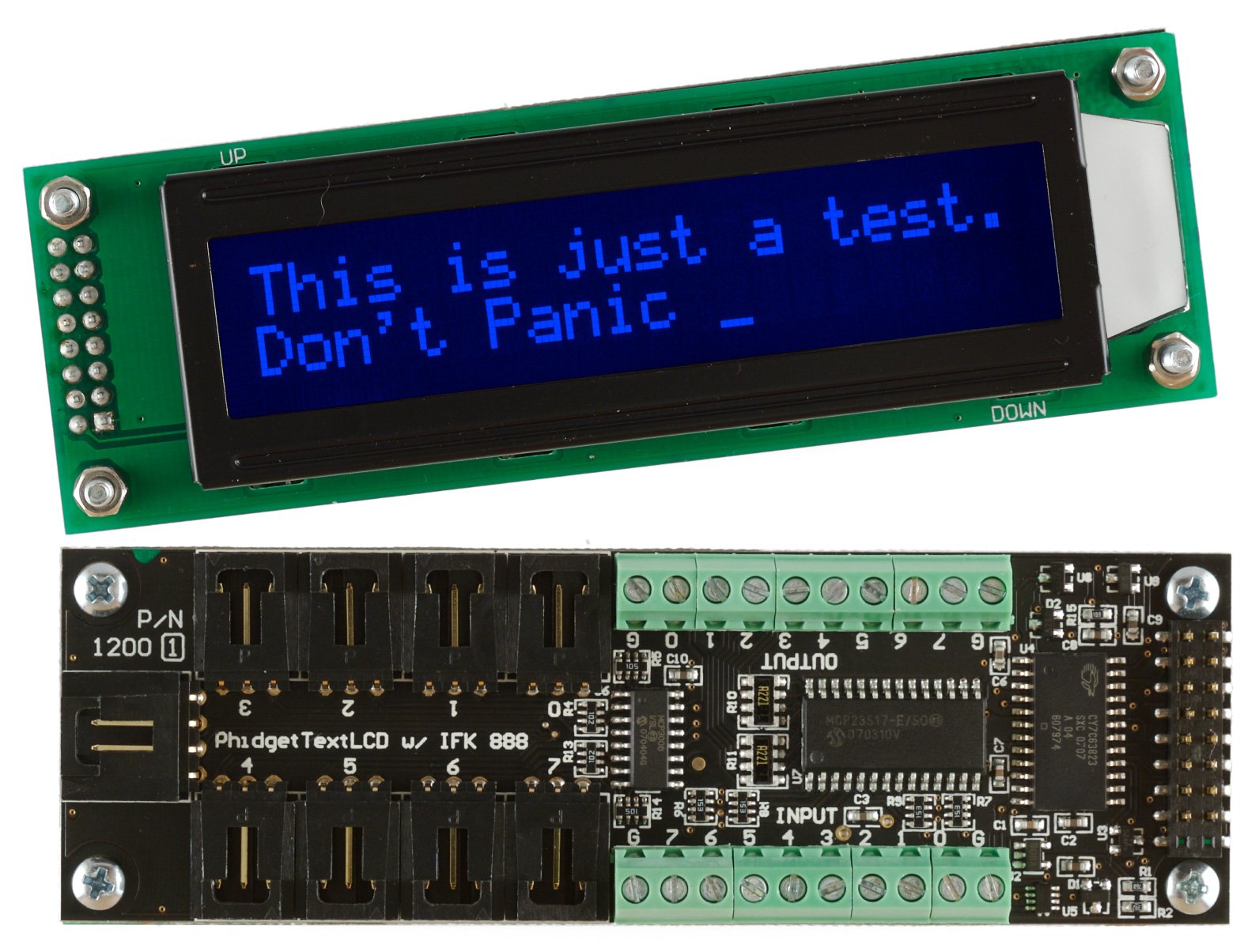

The 1202 integrates a 20X2 Blue PhidgetTextLCD, and a PhidgetInterfaceKit 8/8/8

The PhidgetTextLCD allows you to display messages on a 2-line by 20-character LCD screen.

The PhidgetInterfaceKit 8/8/8 provides:

Analog Inputs

The Analog Inputs are used to measure continuous quantities, such as temperature, humidity, position, pressure, etc. Phidgets offers a wide variety of sensors that can be plugged directly into the board using the cable included with the sensor.

Digital Inputs

The Digital Inputs have a Digital Input Hardware Filter to eliminate false triggering from electrical noise. They can be used to convey the state of devices such as push buttons, limit switches, relays, and logic levels.

Digital Outputs

The Digital Outputs can be used to drive LEDs, solid state relays (such as the 3052 SSR Relay Board), transistors; in fact, anything that will accept a CMOS signal.
